Description

Key Features

Crimps Large Cable

With capacity up to 600 MCM copper and 350 MCM aluminum, this crimping tool is built for serious electrical cable work instead of light-duty terminals.

Works in Tight Spots

The 180b0 rotating head and inline body help you line up crimps where bulkier hydraulic tools fight for space.

Tracks Every Cycle

Crimp Connect software records completed cycles plus calibration and service history, which matters when you need documentation and tool accountability.

Overview

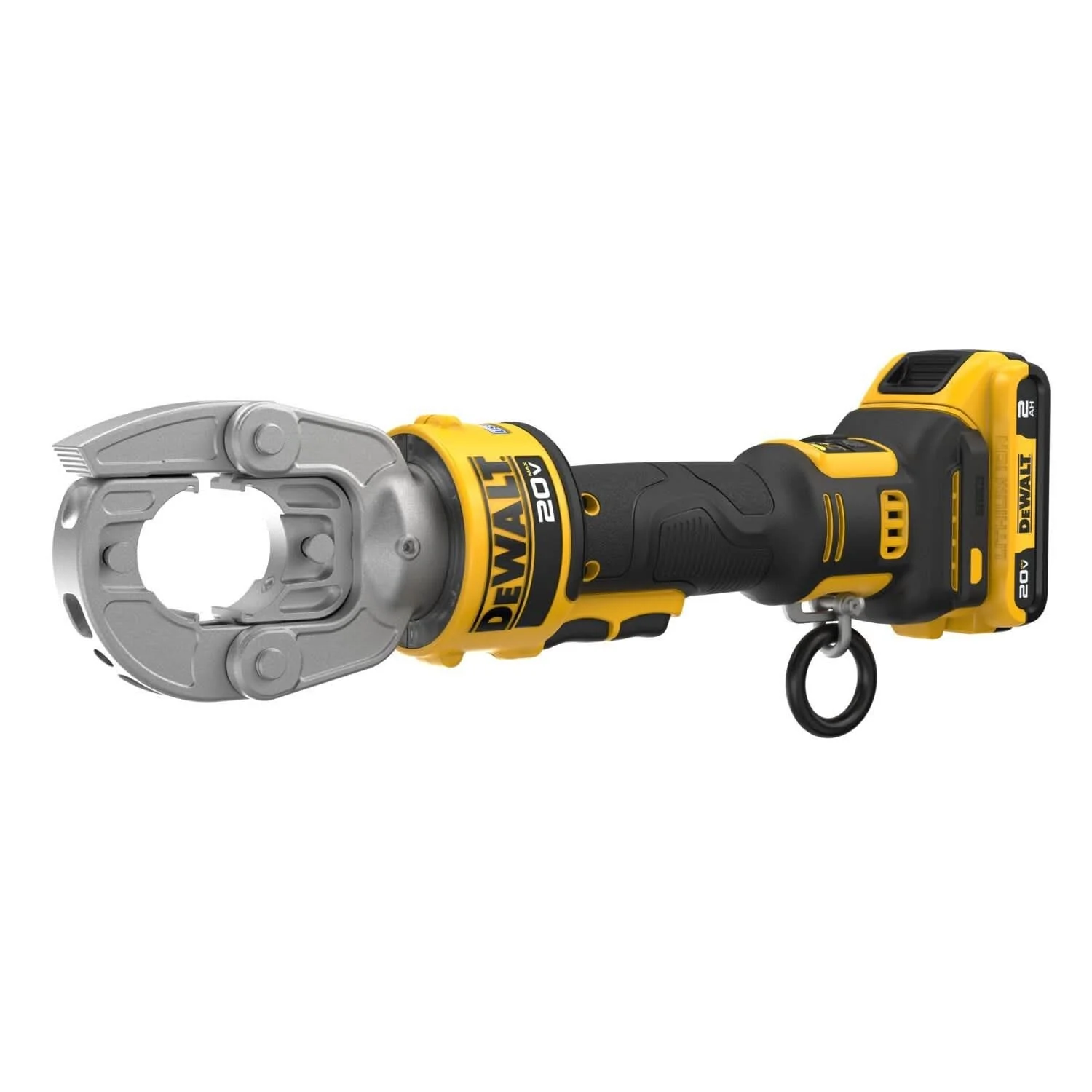

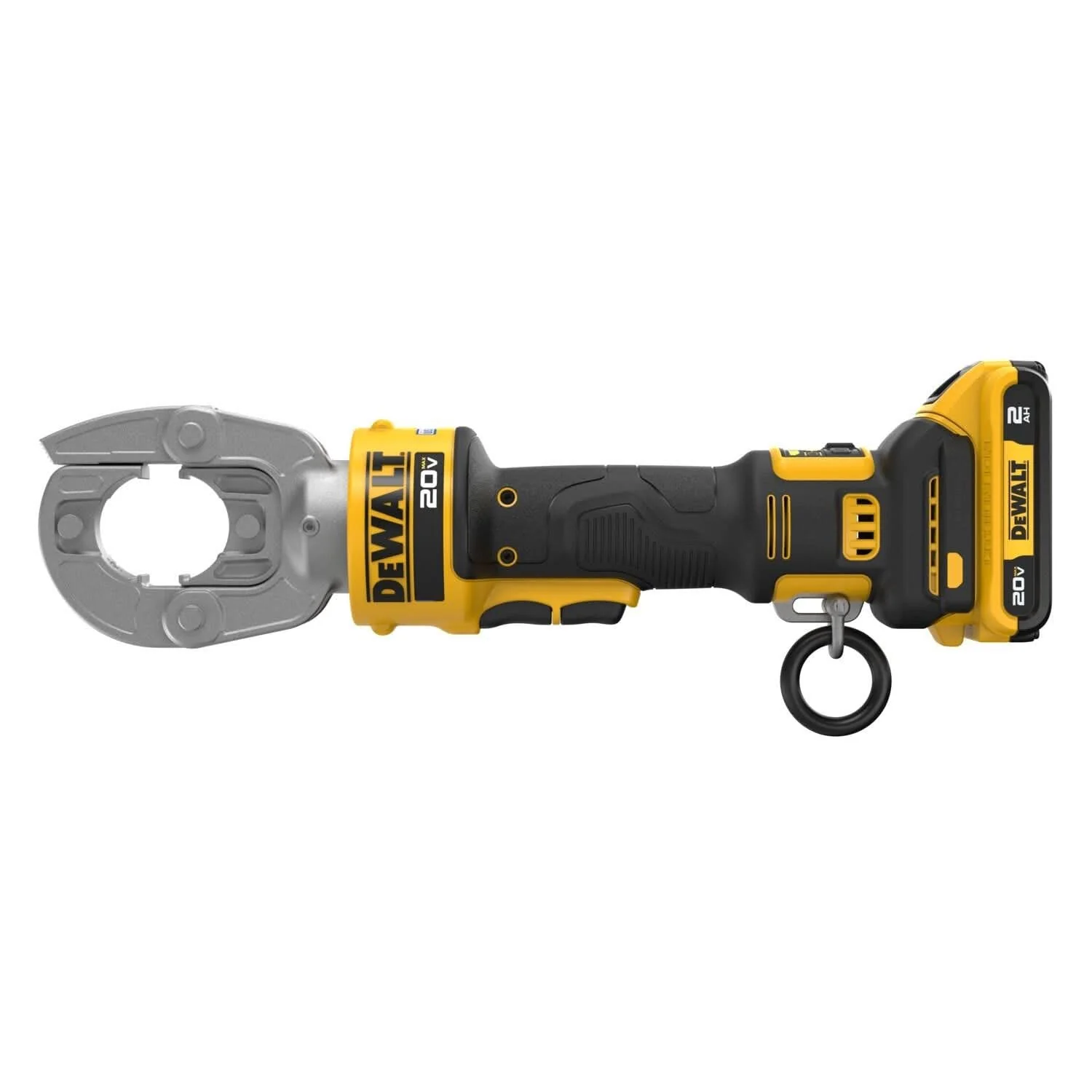

The DeWalt DCE310D2 20V MAX Compact Died Crimping Tool Kit is a cordless crimping tool kit built for electricians and utility-focused contractors who need portable, repeatable cable crimps without dragging around a separate hydraulic setup. This is a cordless died crimping tool designed for crimping copper and aluminum cable. Model Number: DCE310D2.

Its working range is what makes it jobsite-relevant. The tool handles cable from #8 up to 600 MCM copper and #8 up to 350 MCM aluminum, so it covers a wide span of service, panel, and feeder work. It accepts DEWALT U-Type dies and is designed to complete UL Classified crimps with compatible connectors from leading manufacturers. That matters because this is not just about squeezing a connector shut. It is about making compliant crimps with the right die and connector combination.

The head rotates 180 degrees, and that is a feature you feel immediately when working inside enclosures, around existing conductors, or anywhere your body position is awkward. The inline layout also helps with one-handed positioning. On jobs where a straight shot is rare, that rotating head can save a lot of time spent repositioning the tool and cable.

DeWalt also built in a manual release trigger for re-alignment mid-crimp. That is a practical feature, not brochure filler. If you need to reset the connector position before finishing the cycle, you can do it without fighting the tool. For work where accuracy matters and access is limited, that kind of control helps reduce wasted lugs and rework.

For visibility and status, the DCE310D2 uses both a bright LED ring and an integrated LED interface. The ring light helps when you are working in dim electrical rooms, service spaces, or behind equipment. The interface communicates power status, cycle completion, and whether recalibration or service is needed. That gives the operator useful feedback right on the tool instead of leaving you guessing.

One of the more useful differences here is the onboard intelligence. Crimp Connect software provides detailed reports of completed work along with tool calibration and service history. If you manage crews, maintain records, or need better traceability on electrical fastening and termination work, this is the kind of feature that makes a real difference after the tool leaves the truck. There is also a chip pocket that accepts a Tool Connect Chip and works with the Tool Connect Site Manager app for jobsite organization.

Because this is a kit, you are not starting from zero. The package includes two 2.0Ah batteries, a charger, shoulder strap, USB-C cable, Tool Connect Chip, and a ToughSystem 2.0 case. That setup makes sense for contractors who need a ready-to-work electrical cable crimper that can move between service calls, commercial build-outs, and maintenance work without piecing together accessories afterward.

If you are an electrician, electrical contractor, maintenance tech, or utility-minded installer dealing with larger copper and aluminum cable, this tool makes a strong case. If your work depends on verified crimp cycles, portable operation, and access in tight spaces, this is the kind of cordless crimping tool that earns its keep quickly.

Ready to Travel Jobsite to Jobsite

This kit is set up for crews who need the tool, power, storage, and tracking pieces in one package. You are not buying a bare crimper and then chasing the rest later.

• Includes two 20V MAX 2.0Ah batteries and charger
• Packs into a ToughSystem 2.0 case for transport and storage

DeWalt DCE310D2 20V MAX Compact Died Crimping Tool Kit for tight-access crimping

The compact inline body is built for access. When you are crimping inside panels or around existing wiring, tool shape matters almost as much as force capacity.

• 180 degree head rotation helps line up crimps in awkward positions
• Manual release trigger allows mid-crimp re-alignment

What’s in the Box

• (1) DeWalt 20V MAX Compact Died Crimping Tool
• (2) DCB203 2.0Ah batteries
• (1) Charger
• (1) Shoulder strap
• (1) USB-C cable
• (1) Tool Connect Chip
• (1) ToughSystem 2.0 case
• (1) Owner’s manual

Dies and compatible connectors are sold separately.

Key Specifications

Voltage (V)	20V MAX
Copper Crimping Capacity	#8 – 600 MCM Cu
Aluminum Crimping Capacity	#8 – 350 MCM Al
Head Rotation	180b0
Weight (lbs)	21 lbs
Made In	United States with global materials

Compatibility

Battery Platform

Uses the DEWALT 20V MAX battery platform.

Die Interface

Accepts DEWALT U-Type dies.

Jobsite Tracking

Chip pocket accepts a Tool Connect Chip and connects with the Tool Connect Site Manager app.

Built For

Electrical Commercial Electrical Work Service Upgrades Panel Work Copper Cable Crimping Aluminum Cable Crimping Maintenance Teams General Contracting

Pro Tip

If you are moving between different connector sizes through the day, keep your U-Type die selection organized in the case and use the tool’s cycle reporting to document completed work. That saves time when you need to verify what was done after the fact.

Warranty & Support

3 Year Limited Warranty, 1 Year Free Service, and 90 Day Money Back Guarantee.

Tool Nut’s Take

Tool Nut’s Take

A serious electrical crimper that shows up ready to work

The DeWalt DCE310D2 20V MAX Compact Died Crimping Tool Kit hits the sweet spot for contractors who want cordless crimping power, better access, and digital job records in one setup.

• Who it’s for: Electricians and service crews working with larger copper and aluminum cable who need portable crimping without giving up documentation and control.
• Why it stands out: The rotating head, manual release, Crimp Connect reporting, and complete kit setup make it more than just another battery-powered crimper.
• Worth knowing: This kit gets you the batteries, charger, case, and tracking hardware, but the U-Type dies and compatible connectors still need to be matched and bought separately.

Common Questions

• What cable sizes can this tool crimp? It has a capacity range of #8 to 600 MCM for copper cable and #8 to 350 MCM for aluminum cable.
• What dies does it use? The tool accepts DEWALT U-Type dies.
• Can the head be repositioned for tight spaces? Yes. The head rotates 180 degrees for better access in confined work areas.
• Does it provide crimp records? Yes. Crimp Connect software provides reports of completed cycles along with calibration and service history.
