Description

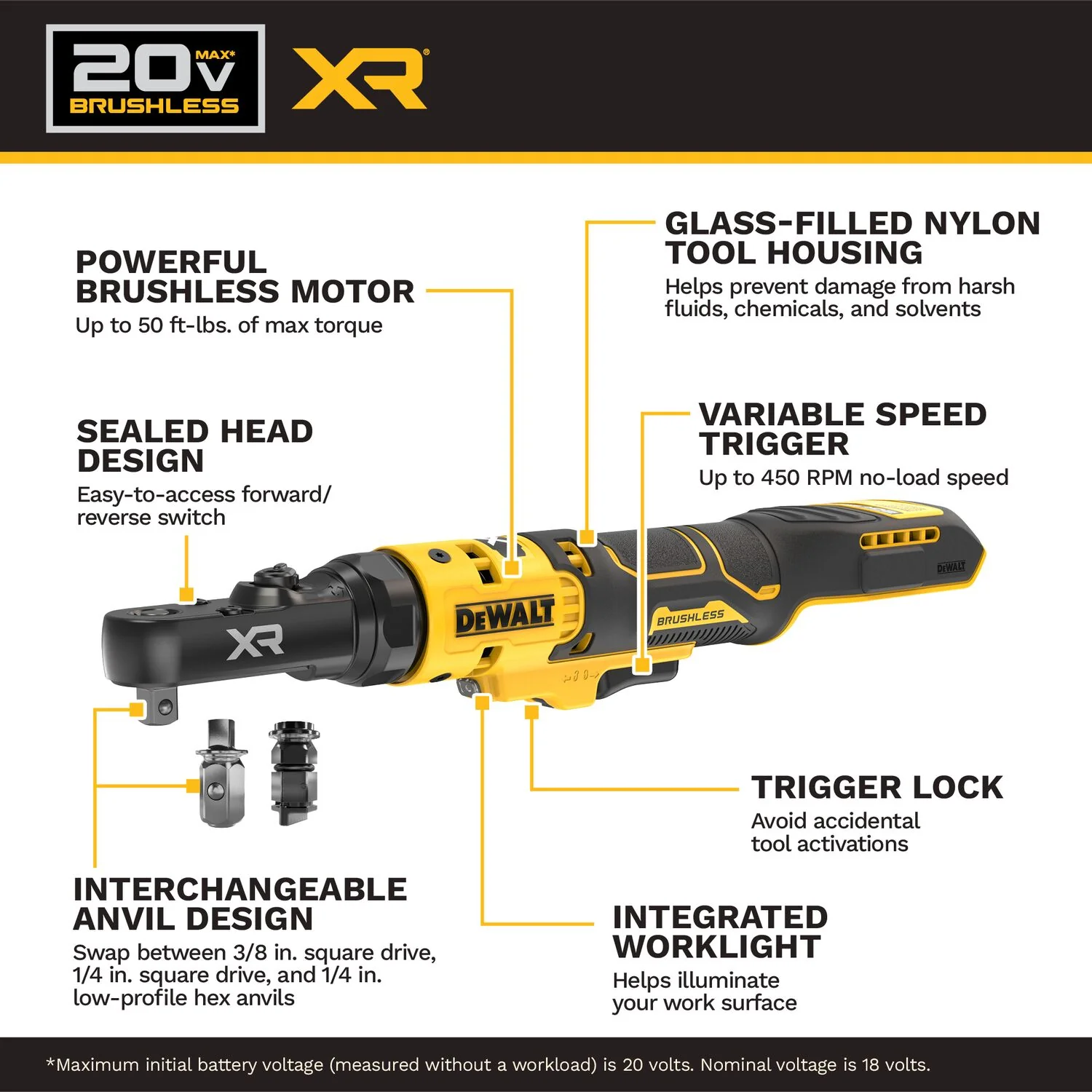

Key Features

Fast Ratchet Work

Up to 450 RPM helps you run down fasteners quicker than a manual ratchet, which matters when you are working through repeated bolts in service and repair work.

Swap Drive Styles

The interchangeable anvil setup lets you move between 3/8 inch square drive, 1/4 inch square drive, and 1/4 inch low-profile hex output so one tool covers more fastening situations.

Tight-Space Control

The sealed head, accessible forward and reverse switch, trigger lock, and built-in LED are all there for real under-hood and cramped-access work where visibility and control matter more than bulk.

Overview

The DeWALT DCF520B 20V MAX XR Brushless 1/4-in. & 3/8-in. Sealed Head Ratchet is a cordless sealed head ratchet built for fastening and removing bolts in tight spaces. This is a cordless ratchet designed for service work, mechanical fastening, and hard-to-reach bolt removal. Model Number: DCF520B. If you want ratchet speed without giving up access, this tool is built around that job.

What makes this ratchet stand out is the mix of speed, usable torque, and flexibility. DeWALT rates it at up to 450 RPM with up to 50 ft-lbs of max torque, which means it is aimed at getting through repeated fastening work faster while still having enough force for stubborn hardware. That makes a difference on maintenance jobs, automotive work, equipment service, and install work where you are constantly running fasteners in and out.

The interchangeable anvil design is a big deal here. Instead of locking you into one output, the tool can be set up with a 3/8 inch square drive, 1/4 inch square drive, or a 1/4 inch low-profile hex anvil. In plain terms, that gives you more ways to match the tool to the fastener and the space you are working in. If you bounce between sockets and hex accessories, that versatility can save you from grabbing a second tool.

The sealed head design is not just a styling choice. It is built for work where access is limited and grime is part of the job. DeWALT also made the forward and reverse control easier to reach in tight spots, which matters when you are working around engine bays, behind installed equipment, or inside cabinets and mechanical spaces. The trigger lock is another practical touch because it helps prevent accidental activation when the tool is riding in a bag or tucked into a cramped work area.

On the visibility side, the built-in LED helps light the work surface without forcing you to juggle a separate light. That is especially useful when you are working under a vehicle, inside a utility room, or anywhere the fastener is easy to miss but hard to reach. The brushless motor also matters for a tool like this because it is built to deliver efficient power with less maintenance than a brushed design.

This is a bare tool, so battery and charger are sold separately. It is compatible with DeWALT 20V MAX batteries, which makes it a logical add-on if you are already on that platform and want a dedicated cordless ratchet without starting over on batteries. For buyers already invested in DeWALT cordless tools, that makes the DCF520B easier to justify because it fits into an existing setup.

Who should buy it? This one makes the most sense for mechanics, automotive techs, MRO crews, HVAC installers, industrial maintenance users, and serious DIYers who spend real time around bolts and tight access points. If your work is mostly heavy lug nuts or suspension hardware, this is not a substitute for a high-torque impact wrench. But if you need a fast, compact cordless ratchet for repeated fastening work where clearance is the problem, the DeWALT DCF520B 20V MAX XR Brushless 1/4-in. & 3/8-in. Sealed Head Ratchet is the right kind of tool.

Built to Reach Tight Fasteners

The sealed head layout is the reason to look at this ratchet if clearance is always working against you. It is set up for places where a bulkier tool or a standard ratchet slows you down.

• Sealed head design helps with access in cramped work zones
• Forward and reverse switch is positioned for easier direction changes in tight spots
• Up to 50 ft-lbs of max torque for stubborn bolts and repeated fastening tasks

One Ratchet, Multiple Setups

The interchangeable anvil system gives this cordless ratchet more range than a single-drive tool. That matters if your work shifts between socket sizes and low-clearance fastening jobs.

• Accepts 3/8 inch square drive, 1/4 inch square drive, and 1/4 inch low-profile hex anvils
• Variable speed trigger helps control fastener run-down
• Built-in LED helps when the fastener is hidden in low-light areas

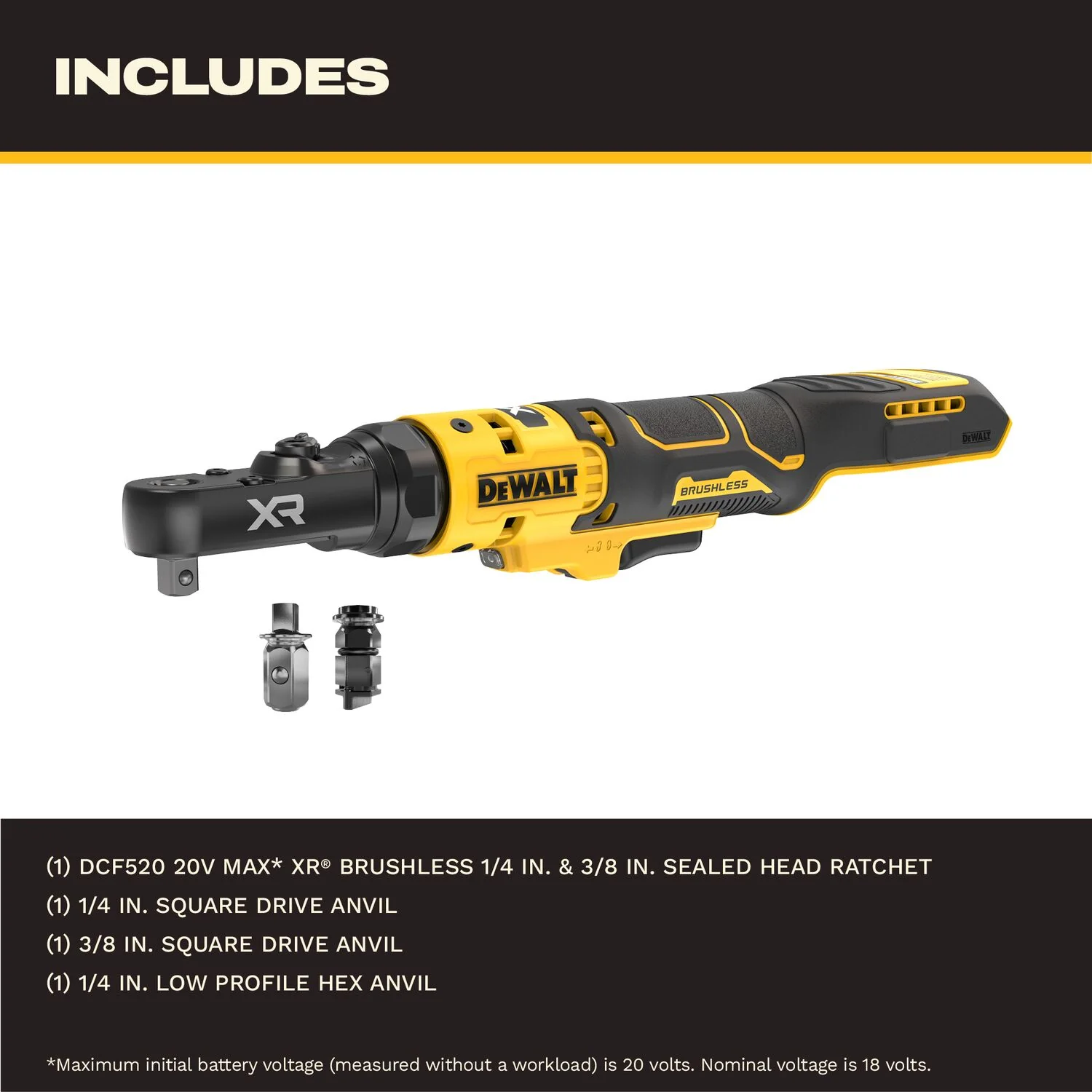

What’s in the Box

• (1) DeWALT DCF520 20V MAX XR Brushless Cordless 1/4 in. & 3/8 in. Sealed Head Ratchet
• (1) 1/4 in. Square Drive Anvil
• (1) 3/8 in. Square Drive Anvil
• (1) 1/4 in. Low Profile Hex Anvil

Battery and charger sold separately.

Key Specifications

Voltage	20V MAX
No-Load Speed	0 to 450 RPM
Maximum Torque	50 ft-lbs
Drive Sizes	1/4 in. and 3/8 in.
Motor Type	Brushless
Variable Speed	Yes
Overall Length	16.6 in.
Made In	Mexico

Compatibility

Battery Platform

Compatible with DeWALT 20V MAX batteries. This is a bare tool and does not include a battery or charger.

Drive Interface

Includes interchangeable 3/8 inch square drive, 1/4 inch square drive, and 1/4 inch low-profile hex anvils for different fastening setups.

Built For

Automotive Equipment Maintenance HVAC Mechanical Fastening General Contracting DIY / Hobbyist

Pro Tip

If you are working where a socket setup adds too much bulk, switch to the included 1/4 inch low-profile hex anvil. It is the better setup when access is tighter than the fastener itself.

Tool Nut’s Take

Tool Nut’s Take

DeWALT DCF520B 20V MAX XR Brushless 1/4-in. & 3/8-in. Sealed Head Ratchet for tight-access bolt work

This is the kind of cordless ratchet that earns its spot when you are tired of fighting for clearance and wasting time on repetitive fasteners.

• Who it’s for: Mechanics, service techs, maintenance crews, and serious DIY users who need a fast cordless ratchet for bolts in cramped spaces.
• Why it stands out: The sealed head, 450 RPM speed, 50 ft-lbs of torque, and interchangeable anvil system give it more range than a basic single-drive ratchet.
• Worth knowing: This is a tool-only setup, so bring your own DeWALT 20V MAX battery and charger. Also, it is a ratchet first, not a replacement for a heavy-duty impact wrench.

Common Questions

• What kind of tool is this? It is a cordless sealed head ratchet designed for fastening and removing bolts in tight spaces.
• What battery platform does it use? It is compatible with DeWALT 20V MAX batteries.
• What drive sizes does it support? It includes 3/8 inch square drive, 1/4 inch square drive, and 1/4 inch low-profile hex anvils.
• Does it have variable speed? Yes. The tool has variable speed with a no-load speed range of 0 to 450 RPM.
