Description

Key Features

More Control Under Load

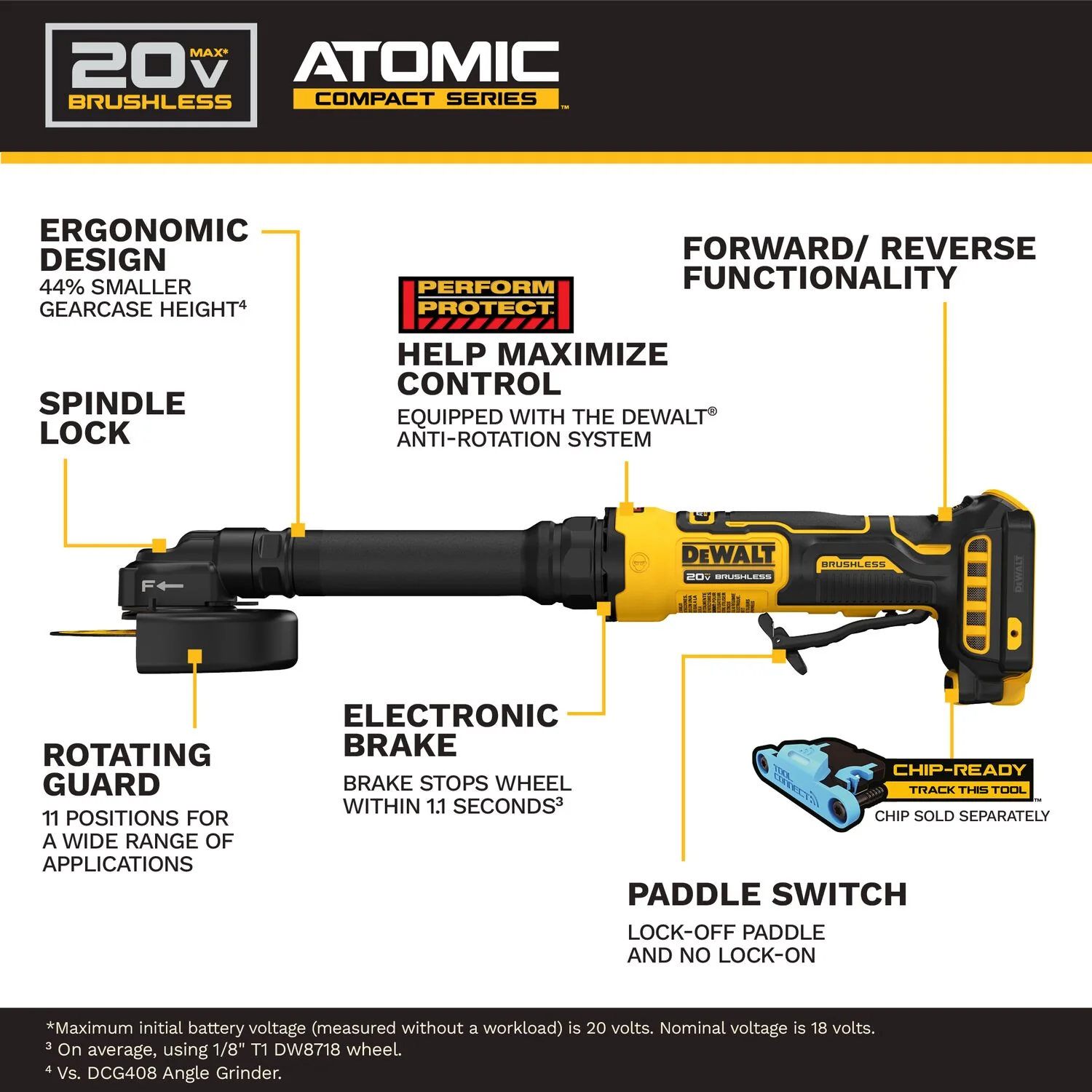

The DEWALT DCG432XB ATOMIC 20V MAX 4 in. Extended Cut-Off Tool uses the DEWALT Anti-Rotation System to help stop the wheel when a pinch, stall, or bind-up event is sensed. That matters when you are cutting metal in awkward positions and need the tool to stay predictable.

Built for Tight Spaces

The extended neck and 44% smaller gearcase height are there for one reason: access. You can reach into narrow gaps and make cleaner cut-off work where a standard grinder shape gets crowded fast.

Cordless Metal Cutting Power

This cordless cut-off tool pairs a brushless motor with 12,500 RPM no-load speed for fast metal cutting without dragging an air hose behind you. It is a solid fit for fabrication, service work, and punch-list jobs where mobility matters.

Overview

The DEWALT DCG432XB ATOMIC 20V MAX 4 in. Extended Cut-Off Tool is a cordless metal cutting tool built for straight, clean cuts in tight or narrow spaces. This is a cut-off tool designed for metal cutting, fabrication work, and service jobs where a standard grinder body can be too bulky. Model Number: DCG432XB. Sold as a tool only, it is aimed at users already on the DEWALT 20V MAX platform who want pneumatic-like cut-off performance without hoses.

What sets this tool apart is the long, extended reach layout. Instead of forcing the motor and gearcase right up against the work, DEWALT gives you room to get the wheel into places that are usually frustrating with a conventional grinder. On steel framing, brackets, tubing, angle iron, and other metal stock, that means better wheel access and a cleaner line of sight. The 4 inch wheel format keeps the tool compact while the 12,500 RPM no-load speed helps it stay productive in real cut-off work.

DEWALT also built this one around control, not just raw speed. The Anti-Rotation System is there to help maximize control if the wheel pinches, stalls, or binds. Add the electronic brake that stops the wheel within 1.1 seconds after trigger release, and you get a tool that feels more settled when working overhead, inside assemblies, or around finished material. For anyone who has fought a cut-off tool in an awkward position, that is not a minor feature.

The ergonomic side matters too. DEWALT calls out a 44% smaller gearcase height compared to the DCG408 angle grinder, and that tracks with the job this tool is built to do. Smaller head height helps you fit between steel members and around obstructions. The forward and reverse function adds flexibility depending on spark direction, access, and how you need to approach the cut. The rotating guard offers 11 positions, and the tool-free adjustment up to plus or minus 75 degrees helps you set the guard where it makes sense instead of just living with a fixed position.

For jobsite practicality, this cut-off tool uses a lock-off paddle switch with no lock-on, which gives it a familiar feel for users coming from pneumatic tools. The spindle lock simplifies wheel changes, so you are not hunting for multiple wrenches when it is time to swap accessories. DEWALT also uses a forward exhaust system to help direct air away from the user and help manage motor heat during repeated use.

Platform fit is straightforward. This is a cordless battery-powered tool in the DEWALT 20V MAX system, so it is a natural add-on for users already running DEWALT batteries and chargers. It is also TOOL CONNECT Chip Ready, which means it can pair with the optional TOOL CONNECT Chip and software for jobsite data and tracking. That makes more sense for crews and fleet managers than casual users, but it is useful if tool accountability is part of your workflow.

Who should buy it? Metalworkers, mechanical contractors, HVAC installers, electricians, maintenance crews, and general contractors who need fast cut-off performance in confined spaces. If most of your work is open-bench grinding, a standard grinder may still be the simpler buy. But if you regularly cut metal inside framing, around installed assemblies, or in areas where a compact head and extended reach save time, the DEWALT DCG432XB ATOMIC 20V MAX 4 in. Extended Cut-Off Tool is built for exactly that problem.

Reach Into Tight Metalwork

This is where the extended cut-off layout earns its keep. The tool is shaped to get the wheel into narrow openings and between metal members without the bulk of a typical grinder crowding the work area.

• 44% smaller gearcase height for better access in confined spaces
• Built for straight, clean cuts in tight or narrow metal cutting applications

Stay in Control During the Cut

Cut-off tools are easy to like when the cut is going right. The real difference shows up when the wheel binds or the cut gets awkward. DEWALT focused this tool on keeping reaction under control and stopping the wheel quickly once you let off.

• Anti-Rotation System helps maximize control during pinch, stall, or bind-up events
• Electronic brake stops the wheel within 1.1 seconds after trigger release

Compact Cordless Setup, No Hose Required

If you are moving between ladders, service calls, punch work, or fabrication spots, cordless matters. This tool is designed to deliver comparable power to a 0.9 HP rated pneumatic 4 inch extended cut-off tool while cutting out the hose and compressor setup.

• Brushless motor with 12,500 RPM no-load speed
• 28% lighter than a competitive pneumatic 4 inch extended cut-off tool in use

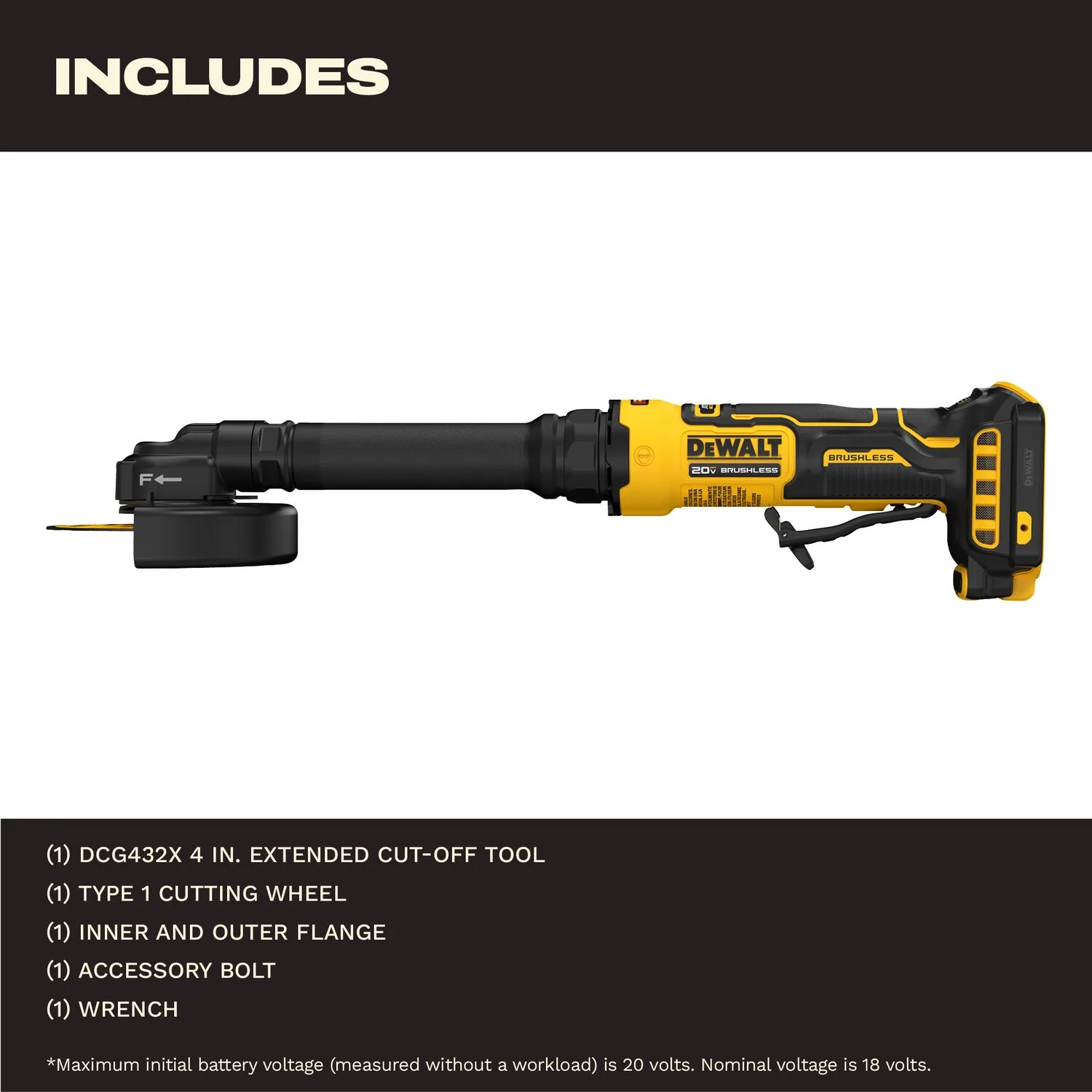

What’s in the Box

• (1) DCG432X ATOMIC 20V MAX 4 in. Extended Cut-Off Tool
• (1) Type 1 Cutting Wheel
• (1) Inner and Outer Flange
• (1) Wrench
• (1) Accessory Bolt

Battery and charger sold separately.

Key Specifications

Voltage (V)	20 V
Power Source	Battery
Wheel Diameter	4 in.
No-Load Speed (RPM)	12,500 RPM
Weight (lbs)	4.189 lbs
Overall Depth (in)	17.087 in.
Overall Width (in)	5.600 in.
Guard Positions	11 positions

Compatibility

Battery Platform

Part of the DEWALT 20V MAX system. Battery and charger are sold separately.

Tool Tracking

TOOL CONNECT Chip Ready for use with the optional TOOL CONNECT Chip and compatible software.

Built For

MetalworkingHVACElectricalMaintenanceGeneral ContractingFabricationTight-space cuttingSteel framing

Pro Tip

If you are cutting in corners or between steel members, take a second to set the guard position and spark direction before you start. The forward/reverse function and 11-position guard are what make this tool work better than a standard grinder in cramped spots, so use them instead of fighting the cut.

Warranty & Support

3 Year Limited Warranty, 1 Year Free Service, and 90 Day Satisfaction Guaranteed.

Tool Nut’s Take

Tool Nut’s Take

DEWALT DCG432XB ATOMIC 20V MAX 4 in. Extended Cut-Off Tool is the right answer for cramped metal cuts

This is the kind of tool that makes a lot of sense once you use it in the spot where a regular grinder keeps getting in its own way.

• Who it’s for: Pros cutting steel, strut, brackets, and other metal in installed work or tight fabrication setups.
• Why it stands out: The extended reach, smaller gearcase height, Anti-Rotation System, and fast brake solve real control and access problems, not brochure problems.
• Worth knowing: It is a tool-only setup, so this one is best for buyers already invested in DEWALT 20V MAX batteries. If you mostly work in open space, a standard grinder may be enough. If access is the issue, this tool is the better play.

Common Questions

• What kind of tool is this? This is a cordless 4 inch extended cut-off tool designed for metal cutting in tight or narrow spaces.
• Is the DEWALT DCG432XB ATOMIC 20V MAX 4 in. Extended Cut-Off Tool cordless? Yes. It is a battery-powered tool in the DEWALT 20V MAX system.
• Does it have a brake? Yes. DEWALT states the electronic brake stops the wheel within 1.1 seconds after trigger release.
• Can the guard be repositioned? Yes. The rotating guard has 11 positions and tool-free adjustment up to plus or minus 75 degrees.
