Description

Key Features

High-Precision Layout

The DEWALT DCLE34033D1 20V MAX XR 3 x 360 High Precision Green Laser is built for layout work where small errors turn into big callbacks. With accuracy rated at plus or minus 1/8 in. at 50 ft., it gives you cleaner reference lines across longer distances.

Full-Day Runtime

Up to 10 hours of runtime on a single charge helps you get through long layout days without stopping to swap power. That matters when you are setting walls, ceilings, track, or fixtures across a large space.

12V and 20V Flexibility

This laser works with DEWALT 12V MAX and 20V MAX batteries, so you can run it on the platform you already use. The included 20V MAX 2.0Ah battery gets you working right out of the case.

Overview

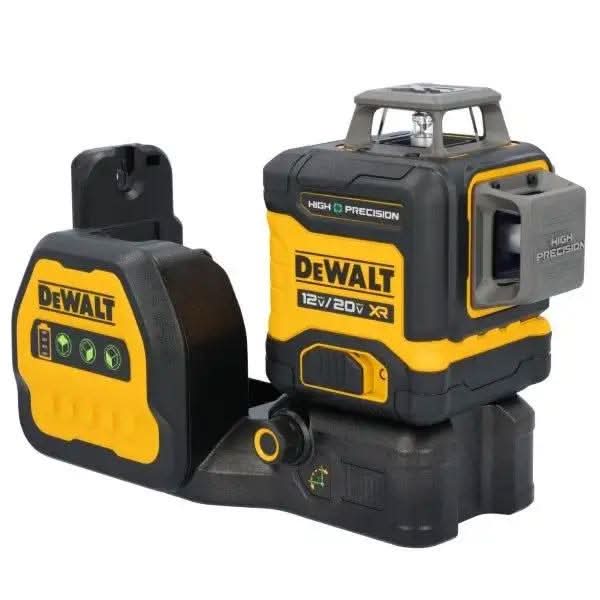

The DEWALT DCLE34033D1 20V MAX XR 3 x 360 High Precision Green Laser is a cordless line laser level for pros who need accurate layout over long distances. This is a line laser level designed for layout, alignment, and plumb reference work on commercial interiors, remodeling jobs, and finish installation. Model Number: DCLE34033D1. If you are setting track, framing walls, aligning cabinets, laying out ceilings, or transferring plumb points, this tool is built to speed that work up while keeping your lines tight.

What separates this unit from a basic laser is the precision and usable range. DEWALT rates it at plus or minus 1/8 in. accuracy at 50 ft., and calls it 40% more accurate than the DCLE34030 laser. That matters when you are working across a large room or long hallway and cannot afford drift. Green beams are also easier to see in many jobsite conditions, with visible range up to 230 ft. and up to 330 ft. on average when used with the included DW0892G detector.

The 3 x 360 degree beam layout gives you full horizontal and vertical reference lines around the room instead of making you keep repositioning the laser. That saves time when you are working alone, checking plumb, or laying out multiple walls and elevations from one setup point. DEWALT also added a fine-adjust knob so you can micro-tune plumb line placement instead of bumping the whole tool around and starting over.

From a jobsite design standpoint, this laser is set up to be easy to mount and easy to trust. The integrated magnetic pivoting base lets you attach to metal surfaces quickly, and it includes both 1/4 in.-20 and 5/8 in.-11 tripod threads for common mounting options. The rear magnets allow flush attachment to steel, which is especially useful for steel stud layout, ceiling work, and mechanical rough-in.

Power options are another strong point here. This is a dual-voltage DEWALT laser that can run on either a 20V MAX or 12V MAX battery, which gives crews flexibility if they already own tools on either platform. In this kit, DEWALT includes a DCB203 20V MAX 2.0Ah battery and DCB107 charger, so it is not a bare tool situation. The rated runtime is up to 10 hours on a single charge on average using the included battery with all three laser lines in use.

Real-world durability is covered too. The housing is IP54-rated for water and debris resistance, which is what you want in a laser that is going to live around dust, floor layout, studs, carts, and general jobsite abuse. DEWALT notes that the protection rating does not include the battery or charger, but the laser body itself is built for actual site conditions rather than clean shop use only.

This kit makes the most sense for contractors who rely on layout to keep the rest of the job moving. Framers, drywall crews, electricians, remodelers, ceiling installers, and general contractors will get the most out of it. Serious DIY users can absolutely use it, but this is a premium, high-precision green laser kit meant for people who are using a laser often enough to appreciate the better accuracy, detector range, mounting flexibility, and included accessories.

See Long, Set Fast

This laser is made for layout work that stretches beyond a small room. The bright green beams and detector support help you keep working accurately across larger spaces without constantly moving the tool.

• Visible range up to 230 ft.
• Maximum range on average up to 330 ft. with the included DW0892G detector
• 3 x 360 degree beam pattern covers horizontal and vertical reference lines from one setup point

Dial In the Line

The fine adjust knob is one of those features that sounds small until you use it. Instead of nudging the whole laser by hand and overshooting your mark, you can micro-tune the plumb line where you need it.

• Fine-adjust knob helps with precise plumb line positioning
• Useful for steel stud layout, ceiling alignment, and finish installation
• Rated 40% more accurate than the DCLE34030 laser

Mount It Where You Need It

Good layout tools save time when they are easy to place and easy to adjust. The magnetic pivoting base and common tripod thread sizes give you more setup options on steel, tripods, and site-built supports.

• Integrated magnetic pivoting base for fast attachment to metal surfaces
• 1/4 in.-20 and 5/8 in.-11 thread mounts for tripod compatibility
• Rear-mounted magnets allow flush attachment

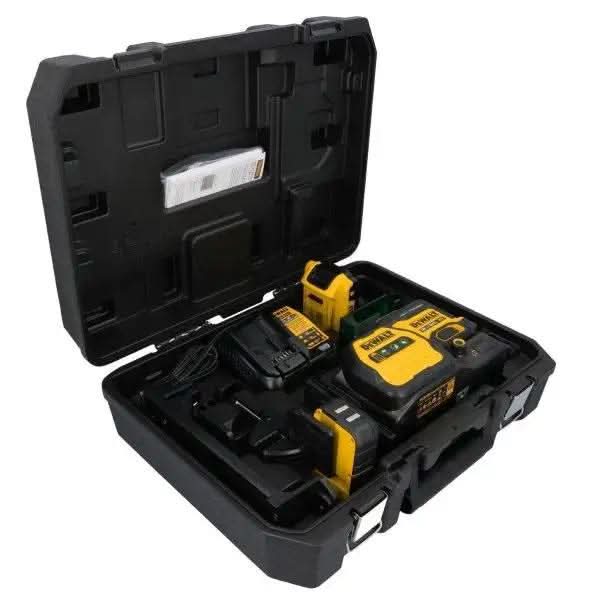

What’s in the Box

• (1) High Precision 3 x 360 degree Laser
• (1) DW0892G Detector with grade rod clamp
• (1) DCB203 20V MAX 2.0Ah battery
• (1) DCB107 Charger
• (1) Ceiling bracket
• (1) Target card
• (1) 9V battery for detector
• (1) Hard case

At a Glance

±1/8 in.

Accuracy at 50 ft.

230 ft.

Visible Range

330 ft.

Max Range with Detector

10 hrs

Runtime on One Charge

Key Specifications

Product Type	Line Laser Level
Voltage (V)	20 V
Runtime	Up to 10 hours
Accuracy	±1/8 in. at 50 ft.
Visible Range	Up to 230 ft.
Max Range with Detector	Up to 330 ft.
IP Rating	IP54
Weight (lbs)	13.92 lbs

Compatibility

Battery Platform

Compatible with DEWALT 20V MAX and 12V MAX batteries. A 12V MAX battery is sold separately.

Detector Use

Works with the included DEWALT DW0892G detector to extend average maximum range up to 330 ft.

Mounting Interface

Integrated base includes 1/4 in.-20 and 5/8 in.-11 threads for tripod mounting. Tripod sold separately.

Built For

ConstructionGeneral ContractingCarpentryDrywallElectricalHVACRemodelingInterior Layout

Pro Tip

If you are laying out multiple walls or ceiling points from one location, set the laser on steel with the magnetic base first, then use the fine-adjust knob to bring the plumb line onto your mark instead of shifting the whole unit. It is quicker, and you are less likely to lose your original reference.

Warranty & Support

3 Year Limited Warranty, 1 Year Free Service, 90 Day Satisfaction Guaranteed.

Tool Nut’s Take

Tool Nut’s Take

DEWALT DCLE34033D1 20V MAX XR 3 x 360 High Precision Green Laser for crews that actually live by their layout

This is a serious layout laser for guys who need range, accuracy, and mounting flexibility without piecing together a kit after the fact.

• Who it’s for: Contractors, interior layout crews, remodelers, electricians, drywall installers, and anyone setting lines all day instead of once a month.
• Why it stands out: The combination of 3 x 360 coverage, plus or minus 1/8 in. at 50 ft. accuracy, detector-ready long range, and the fine-adjust knob makes it more useful on real jobs than a basic cross-line laser.
• Worth knowing: This is a premium kit, not a bargain laser. The upside is you get the battery, charger, detector, bracket, and hard case, so you are not chasing accessories just to make it job-ready.

Common Questions

• Is this a cordless laser? Yes. It is a battery-powered cordless line laser level.
• What battery platform does it use? It is compatible with DEWALT 20V MAX and 12V MAX batteries.
• How accurate is it? DEWALT rates it at plus or minus 1/8 in. at 50 ft.
• Can it be mounted on a tripod? Yes. The integrated base includes 1/4 in.-20 and 5/8 in.-11 tripod threads.
