Description

Key Features

Fast, Repeatable Joinery

The patented rotating and oscillating cutting action makes clean, consistent mortises without the slow setup of stationary joinery machines. That means faster layout-to-assembly time on doors, tables, beds, and other large work.

Built for Large Stock

The Festool DF 700 EQ-Set DOMINO Joiner handles tenons up to about 5-1/2 inches long with a maximum routing depth of 2-3/4 inches. If you build entry doors, gates, slab furniture, or heavy table bases, that extra capacity matters.

Cleaner, Easier Control

With a 27 mm dust extraction port, indexing pins, and included trim and cross stops, this DOMINO XL joiner is easier to place accurately and easier to use on the bench or on site. Better visibility at the cut means fewer mistakes.

Overview

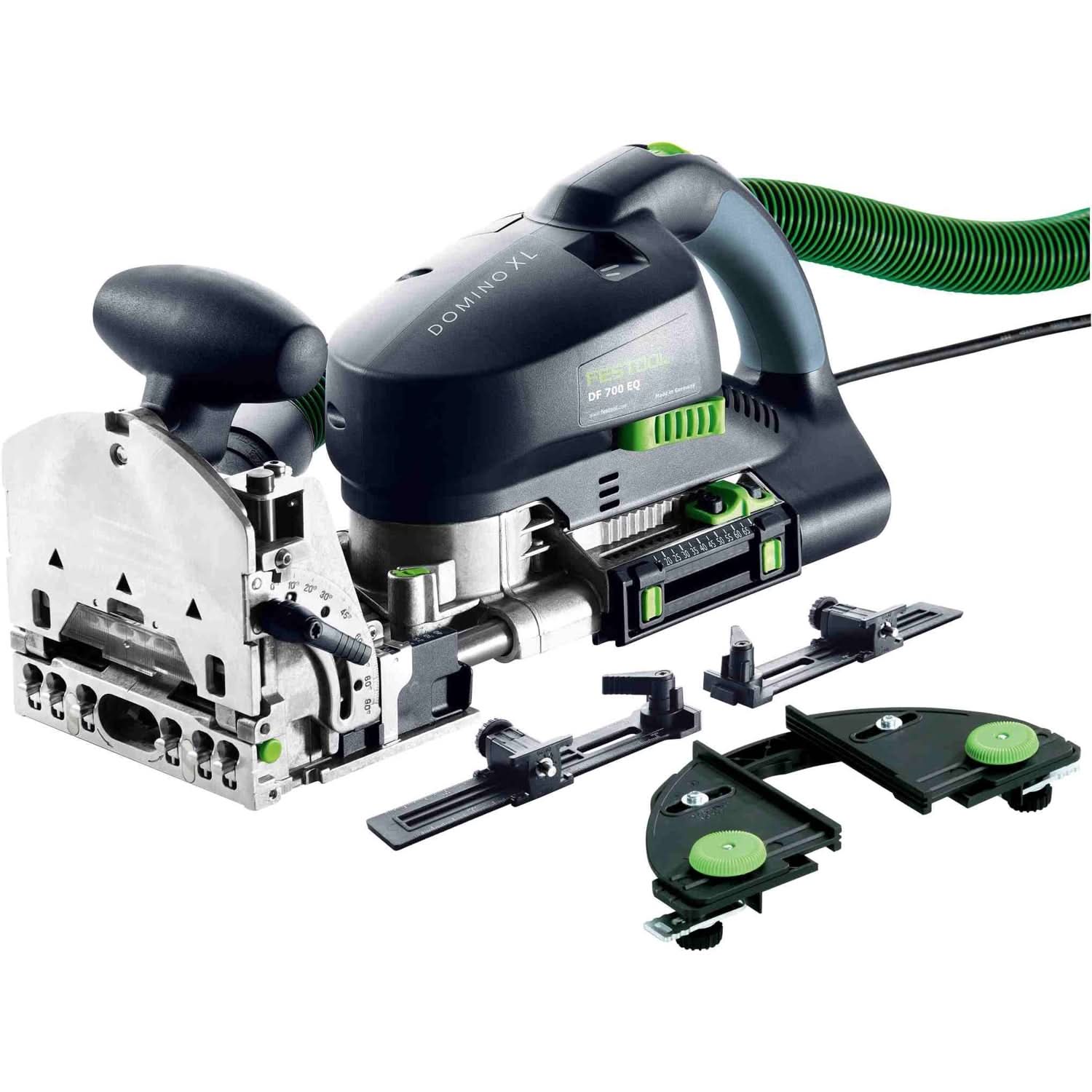

The Festool DF 700 EQ-Set DOMINO Joiner XL 576431 is a portable loose-tenon joiner built for large-scale woodworking and structural furniture joinery. This is a DOMINO joiner designed for cutting precise mortises for large loose-tenon joints. Model Number: 576431. It is aimed at furniture builders, door makers, remodelers, and pro woodworkers who need stronger joints than biscuits or dowels can typically deliver, but do not want to drag oversized stock to a stationary mortiser.

Where this tool earns its keep is capacity. The DOMINO XL extends the DOMINO system into heavier work, with support for cutter diameters from 8 mm through 14 mm and tenons up to approximately 140 mm, or about 5-1/2 inches, in length. That makes it a practical choice for beds, tables, passage and entry doors, gates, and large slab assemblies where smaller joinery systems start feeling undersized. The 70 mm maximum routing depth gives you the reach needed for deep, strong mortises in thicker stock.

Festool’s patented cutting action rotates and oscillates at the same time, which is the whole point of the DOMINO system. In plain terms, it cuts a clean mortise quickly and does it in a way that stays repeatable from part to part. The 21,000 RPM no-load speed helps the machine cut fast and leave a clean cavity, while the width adjustment dial lets you choose a tighter or looser mortise fit depending on whether you need exact registration or a little assembly forgiveness during panel glue-up.

Setup is one of the reasons people buy a DOMINO instead of fighting with traditional mortise-and-tenon methods. Indexing pins help you register off the edge of the workpiece, and the included trim stop and cross stop make it easier to position mortises in narrow stock and repeat edge-joining work. The mitre routing range from 0 to 90 degrees expands what you can do on angled assemblies, and the routing height adjustment range from 10 mm to 50 mm gives you flexibility across different material thicknesses.

This machine is also built with real shop and jobsite use in mind. At 11.46 lbs, it is substantial but still portable enough to bring to the work instead of the other way around. That matters when you’re dealing with a full-size door, a long tabletop, or a heavy leg assembly that is awkward to move. The 4 m Plug It power cord gives you workable reach, and the Systainer storage keeps the tool and accessories together instead of scattered across the van or bench.

Dust collection is not an afterthought here. The 27 mm dust extraction connection is designed to work with Festool dust extractors, which helps keep the mortise visible while cutting and reduces packed chips in the cavity. On a joinery tool, that is more than a cleanup feature. Better chip removal helps the cutter work consistently and makes depth and alignment easier to trust, especially when you are cutting repeated mortises across a full project.

The Festool DF 700 EQ-Set DOMINO Joiner XL is best for woodworkers who regularly build with thicker stock and need strong, accurate joinery without shop-bound machinery. If your work leans toward cabinets, small casework, and lighter trim, Festool’s smaller DOMINO models may be the better fit. But if your day involves large furniture, doors, gates, or heavy solid-wood assemblies, the XL is the one that makes sense because it is purpose-built for that scale of work.

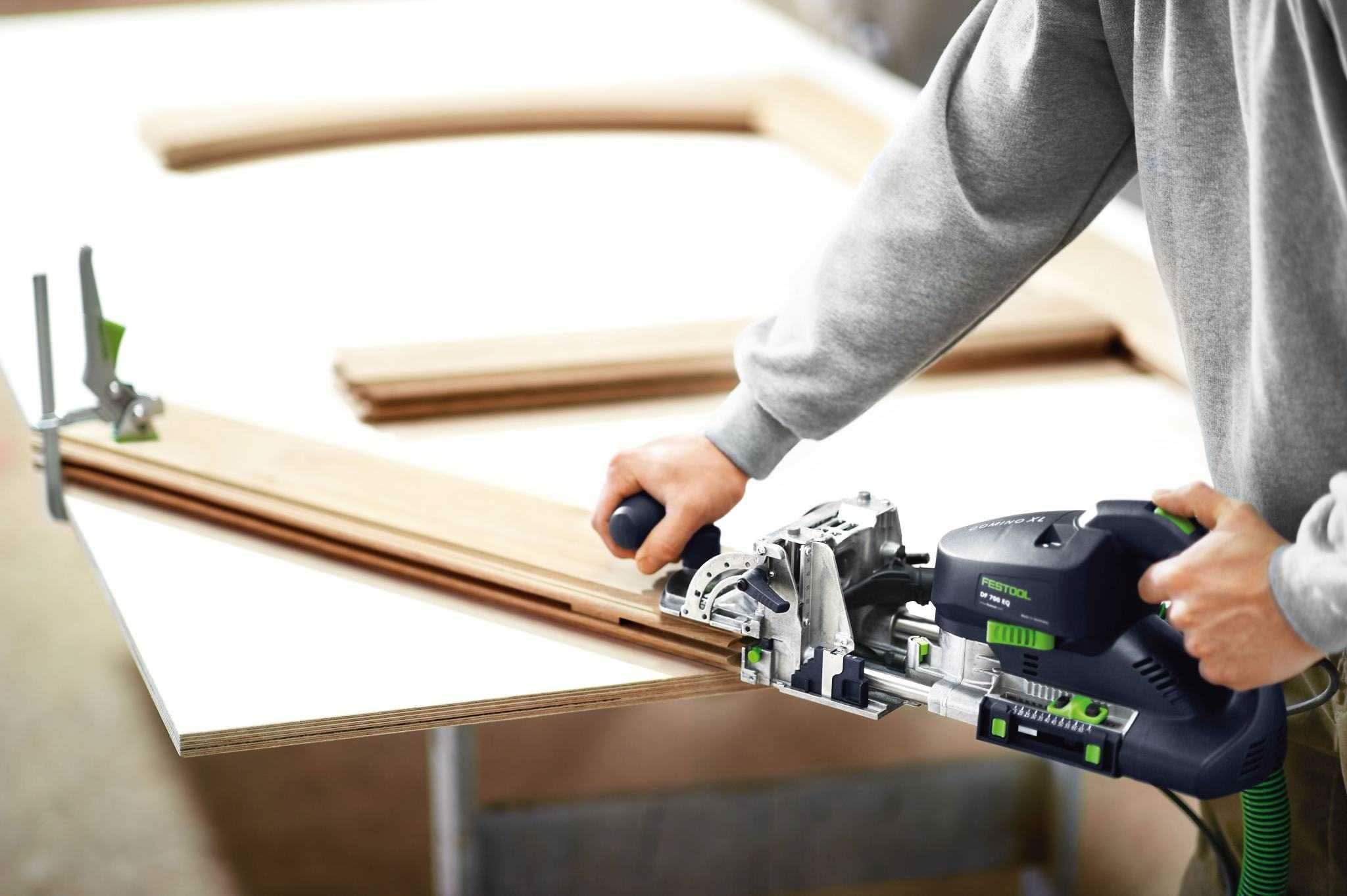

Bring Joinery to the Workpiece

Large doors, long rails, and heavy panels are exactly where a portable mortising system saves time. Instead of dragging oversized parts to a stationary machine, you bring the Festool DF 700 EQ-Set DOMINO Joiner XL to the bench and keep the workflow moving.

• Portable alternative to larger stationary mortising setups
• Designed for large-scale joinery in tables, beds, doors, and gates

Cut Accurate Mortises With Less Setup

The angle guide, indexing features, and mortise width adjustment all work together to make alignment easier. You spend less time fussing with jigs and more time cutting joinery that fits the first time.

• Mortise width adjustment helps with easier panel alignment during assembly
• Indexing pins register quickly off the workpiece edge for repeatable placement

Built for Thick Stock and Deep Mortises

This is the part that separates the XL from lighter joinery tools. The deeper cut capacity and larger tenon sizes give you the holding power needed for heavier assemblies where joint strength is not optional.

• Maximum routing depth: 2-3/4 inches (70 mm)
• Compatible cutter diameters: 8 mm, 10 mm, 12 mm, and 14 mm

What’s in the Box

• (1) DOMINO Cutter D 12-NL 70 HW-DF 700
• (1) Support Bracket ZA-DF 500/700
• (1) Trim Stop LA-DF 500/700
• (1) Cross Stop QA-DF 500/700
• (1) Dowel Box
• (1) Open Ended Spanner, WAF 12
• (1) Plug It Power Cord SJO 18 AWG-4
• (1) Systainer3 SYS3 M 437

Key Specifications

Voltage (V)	120 VAC
Power Consumption (W)	720 W
No-Load Speed (RPM)	21,000 RPM
Mitre Routing Range	0 to 90°
Maximum Routing Depth	2-3/4 in (70 mm)
Routing Height Adjustment	3/8 in to 1-15/16 in (10 mm to 50 mm)
Dust Extraction Port Diameter	1-1/16 in (27 mm)
Weight (lbs)	11.46 lbs (5.5 kg)

Compatibility

Dust Extraction

Uses a 27 mm dust extraction connection for pairing with compatible Festool dust extractors.

DOMINO Cutters

Accepts DOMINO slot cutter diameters of 8 mm, 10 mm, 12 mm, and 14 mm for different joint sizes.

Positioning Accessories

Works with the included trim stop, cross stop, and support bracket for narrow stock, edge joining, and repeat positioning tasks.

Built For

WoodworkingFurniture BuildingDoor ConstructionGate BuildingTable and Bed FramesRemodelingCabinet and Millwork ShopsGeneral Contracting

Pro Tip

For panel glue-ups and large assemblies, cut the first mortise with the tighter setting for reference, then open up the mating mortise with the width adjustment dial. You keep your alignment point where it belongs, but give yourself enough side-to-side forgiveness to get the joint together without a wrestling match.

Tool Nut’s Take

Tool Nut’s Take

Festool DF 700 EQ-Set DOMINO Joiner XL for Big Joinery Jobs

The Festool DF 700 EQ-Set DOMINO Joiner XL is the one you buy when smaller joinery tools start feeling like a compromise.

• Who it’s for: Serious woodworkers, custom furniture builders, door shops, and remodelers working with thicker stock and larger assemblies.
• Why it stands out: It gives you deep, repeatable loose-tenon joinery in a portable package, with the alignment aids and accessory support that make real production work faster.
• Worth knowing: This is not the do-everything size for light cabinet work. The XL really shines on larger doors, beds, tables, gates, and other heavy joinery where its extra capacity pays off.

Common Questions

• What kind of work is this joiner best for? It is built for large-scale woodworking tasks like doors, gates, tables, beds, and massive slab assemblies where larger loose tenons and deeper mortises are needed.
• What cutter sizes does it support? The Festool DF 700 EQ-Set DOMINO Joiner XL supports 8 mm, 10 mm, 12 mm, and 14 mm DOMINO slot cutter diameters.
• Can it be connected to dust extraction? Yes. It has a 27 mm dust extraction connection for use with compatible dust extraction setups.
• How deep can it cut? The maximum routing depth is 2-3/4 inches, or 70 mm.
