Description

Key Features

Four Gears, Real Range

The QUADRIVE transmission gives you low-speed control for large fasteners and high-speed drilling up to 3,600 RPM for smaller holes. That means one Festool hammer drill can cover delicate pilot work and heavy screwdriving without feeling mismatched.

Brushless Powertrain

The brushless EC-TEC motor is built for hard use and efficient power delivery. You get strong performance under load with less wear, which matters when this drill is working all day instead of sitting in the truck.

FastFix Flexibility

FastFix and CENTROTEC make it quick to switch between drilling, driving, angle work, and close-edge fastening. Less time swapping setups means smoother work when the job keeps changing on you.

Overview

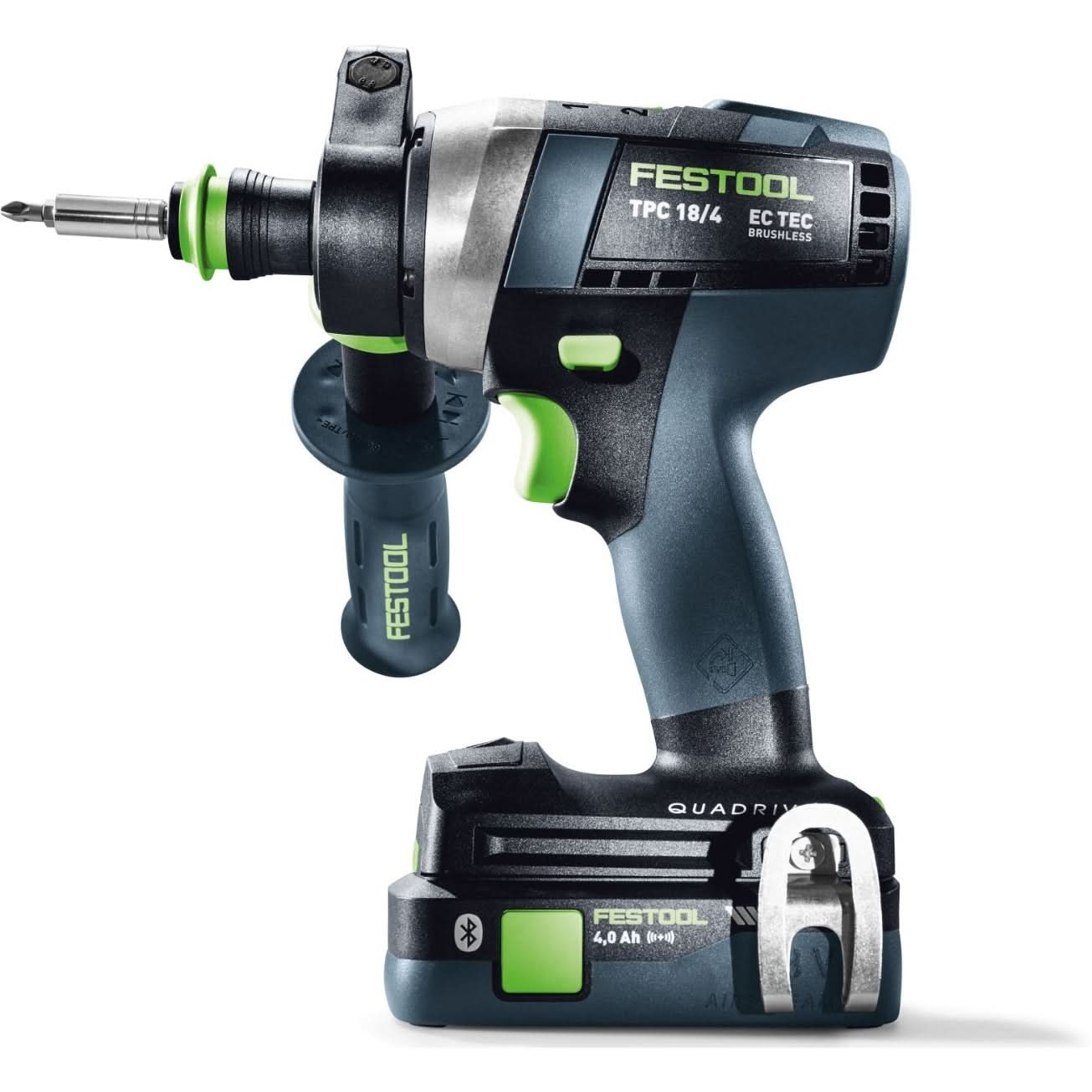

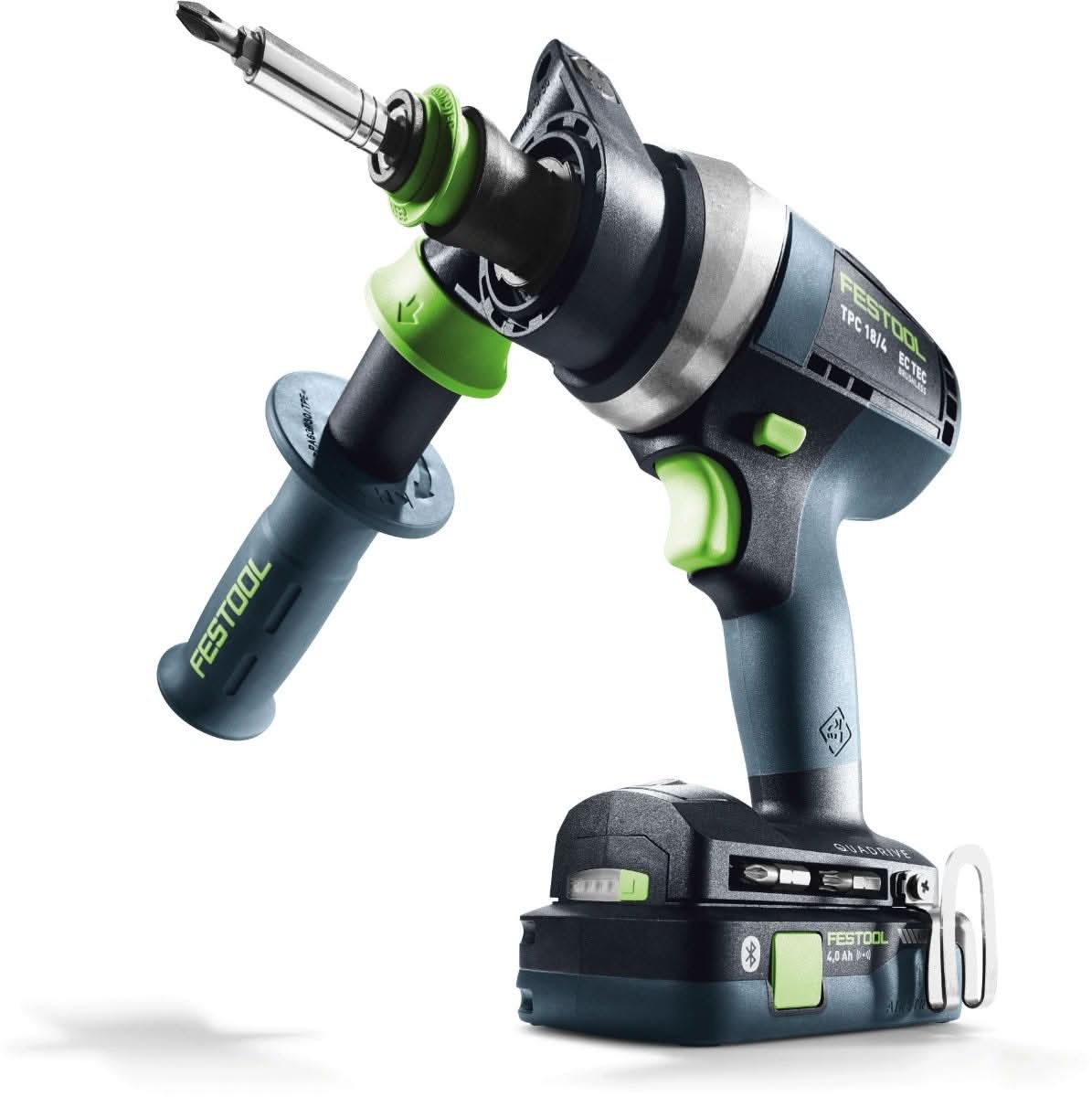

The Festool 577626 QUADRIVE TPC 18/4 Cordless Hammer Drill 18V 4.0Ah Set w/ Systainer3 is a heavy-duty cordless hammer drill built for tradespeople who need one drill to handle fastening, drilling, and masonry work without constant compromises. This is a cordless hammer drill designed for drilling, screwdriving, and hammer drilling in wood, metal, and masonry. Model Number 577626. If your work jumps from cabinet hardware to structural screws to anchor holes, this setup is made for that kind of day.

What makes this drill different is the four-speed metal gearbox. Festool built the QUADRIVE to give you a usable gear for each kind of work instead of forcing one or two broad ranges to do everything. First gear is set up for demanding screwdriving with up to 50 Nm, or 442.5 in-lbs, of torque. Fourth gear reaches 3,600 RPM for fast drilling with small and medium bits. In plain terms, that means better control when driving larger fasteners and better pace when you’re knocking out pilot holes or repetitive drilling.

The hammer function expands the tool well beyond standard drill-driver work. When switched on, the axial hammer mode lets the Festool QUADRIVE TPC 18/4 cordless hammer drill take on masonry drilling without dragging out another dedicated tool for light anchor and installation tasks. For remodelers, electricians, installers, and general contractors, that kind of versatility saves both space and setup time.

Festool also leaned hard into adaptability. The FastFix interface lets you swap attachments without tools, and this set includes a CENTROTEC chuck, a FastFix keyless chuck, and a FastFix right angle chuck. That matters on real jobs because the tool can change with the task instead of making you work around the tool. Need standard drilling capacity with a 1/2 inch chuck, quick bit changes for driving, or access in tighter spots with the angle head? It is all part of the same platform.

The EC-TEC brushless motor is there for more than a spec-sheet checkbox. Festool pairs it with electronic motor management that monitors temperature, voltage, and current draw to keep performance consistent and support long service life. Add in the electronic kickback stop, and you get a drill that is not just powerful, but easier to control when a bit binds up or the tool catches unexpectedly. That is a feature you appreciate most when you are using larger bits or long fasteners in awkward positions.

Ergonomics are another strong point. Festool calls out the smaller handle circumference for improved grip and handling, and the included side handle gives you the leverage you want when the work gets heavier. There is also a belt clip and side-mounted bit storage for everyday convenience. None of that is flashy, but it is the kind of practical design that makes a drill easier to live with over a full workday.

This set is also clearly aimed at users already working in the Festool system, or those ready to step into it. It includes two 18V 4.0Ah battery packs, the TCL 6 rapid charger, and a Systainer SYS3 M 187 for organized transport and storage. The Systainer format ties into other Festool storage and jobsite transport options, and Festool states the drill is compatible with all 18V attachments in the range through the FastFix system. If you like organized kits that stack, store cleanly, and travel well, that part of the package matters.

Who should buy it? Pros who want one premium cordless hammer drill to cover a wide spread of work. Carpenters, remodelers, punch-list crews, cabinet installers, and service contractors will get the most out of the four-speed range and the attachment system. Serious DIY users can absolutely use it, but this is not built as a basic homeowner drill. It is built for people who care about control, speed selection, system compatibility, and not having to fight the tool when the application changes.

Built for Fastener Work That Fights Back

When you are leaning on larger screws or working overhead, control matters as much as raw output. The QUADRIVE setup gives you the side handle, kickback protection, and low-speed torque you want when the drill is under load.

• Electronic kickback stop helps reduce sudden twisting if the bit jams
• Up to 50 Nm, or 442.5 in-lbs, of torque in first gear for demanding screwdriving
• Included side-mounted hand grip adds leverage for tougher applications

Switch Setups Without Killing Momentum

This drill is at its best when the work changes every few minutes. FastFix and CENTROTEC let you move from drilling to driving to angle work without dragging out a second or third tool.

• FastFix interface supports tool-free conversion for drilling and driving tasks
• CENTROTEC chuck and magnetic bit holder speed up bit changes
• Included FastFix right angle chuck helps in tighter working areas

Comes Ready as a System, Not Just a Bare Tool

A good drill set should arrive ready to work. This one does. You get batteries, charger, key attachments, and a Systainer that keeps the whole kit organized instead of turning into a loose pile of parts.

• Includes two 18V 4.0Ah battery packs and a TCL 6 rapid charger
• Comes with multiple chuck options for driving, standard drilling, and angle access
• Packed in a Systainer SYS3 M 187 for storage and transport

What’s in the Box

• (2) P 18 Li 4.0 HPC-ASI battery packs
• (1) TCL 6 rapid charger
• (1) CENTROTEC chuck
• (1) CENTROTEC BH 60 CE Imp magnetic bit holder
• (1) FastFix keyless chuck 1/2 in (13 mm)
• (1) Phillips #2 bit
• (1) Additional side-mounted hand grip
• (1) FastFix right angle chuck
• (1) Belt clip
• (1) Systainer SYS3 M 187

Key Specifications

Voltage (V)	18 V
Battery Capacity	4.0 Ah
Included Batteries	2
Motor Type	Brushless EC-TEC
Gear Speeds	4
No-Load Speed (RPM)	Up to 3,600 RPM
Torque	Up to 442.5 in-lbs (50 Nm) in 1st gear
Chuck Size	1/2 in (13 mm)

Compatibility

Battery Platform

Built around Festool 18V battery packs and includes two 18V 4.0Ah batteries.

Attachment System

FastFix interface works with Festool 18V attachments for drilling, screwdriving, angle drilling, and angle driving.

Bit and Chuck Options

Includes CENTROTEC and keyless chuck options for quick bit changes and standard drilling applications.

Systainer System

Systainer SYS3 M 187 connects with other Festool Systainers and can integrate with Festool transport and workshop systems such as SYS-Cart, SYS-Roll, MW 1000, and CT Mobile Dust Extractors.

Built For

CarpentryRemodelingGeneral ContractingInstallation WorkWood DrillingMetal DrillingMasonry DrillingFastening

Pro Tip

Set this drill up with the CENTROTEC holder when you are bouncing between pilot holes and driving screws, then switch to the 1/2 inch keyless chuck only when the job really needs a standard drill bit. That keeps the front end lighter and makes the QUADRIVE feel quicker in repetitive install work.

Tool Nut’s Take

Tool Nut’s Take

Festool 577626 QUADRIVE TPC 18/4 Cordless Hammer Drill 18V 4.0Ah Set w/ Systainer3 is the all-in-one drill for guys who actually use all the modes

This is a premium cordless hammer drill that earns its keep by covering a huge range of work without feeling clumsy or overbuilt in the wrong places.

• Who it’s for: Pros who move between driving, drilling, and light masonry work and want one drill that can keep up with changing tasks.
• Why it stands out: The four-speed gearbox, FastFix attachment system, brushless EC-TEC motor, and kickback control make it more versatile than a typical drill-driver or basic hammer drill.
• Worth knowing: This is a serious system-focused kit, not a stripped-down budget option. If you will use the attachments and gear range, it makes a lot of sense. If you just need a simple homeowner drill, it is more tool than you need.

Common Questions

• Can this drill handle masonry? Yes. The TPC 18/4 has an axial hammer function that can be switched on for drilling into masonry.
• Why does this model have four gears? The four-speed gearbox gives you a more useful spread between high-torque screwdriving and high-speed drilling, including up to 442.5 in-lbs in first gear and up to 3,600 RPM in fourth gear.
• Does it work with Festool attachment accessories? Yes. Festool states the FastFix interface allows use of Festool 18V attachments for drilling, screwdriving, angular drilling, and angular driving.
• What kind of chuck does it use? This set includes both a CENTROTEC chuck for faster bit changes and a FastFix 1/2 inch keyless chuck for standard drilling tasks.
