Description

Key Features

Fast Stock Removal

The Makita planer uses a brushless motor that runs at 15,000 RPM, so it removes material quickly without dragging through the cut. That matters when you are fitting doors, trimming framing, or cleaning up rough lumber on site.

One-Pass Capacity

This cordless planer handles up to 3-1/4 inches wide and 5/32 inch deep in a single pass, with rabbeting up to 1 inch deep. You get the capacity needed for door edges, framing stock, and finish work without switching tools.

AWS Dust Control

AWS capability lets the tool communicate wirelessly with a compatible dust extractor when used with the optional transmitter. That means less mess, less constant extractor noise, and a cleaner workflow indoors or in finished spaces.

Overview

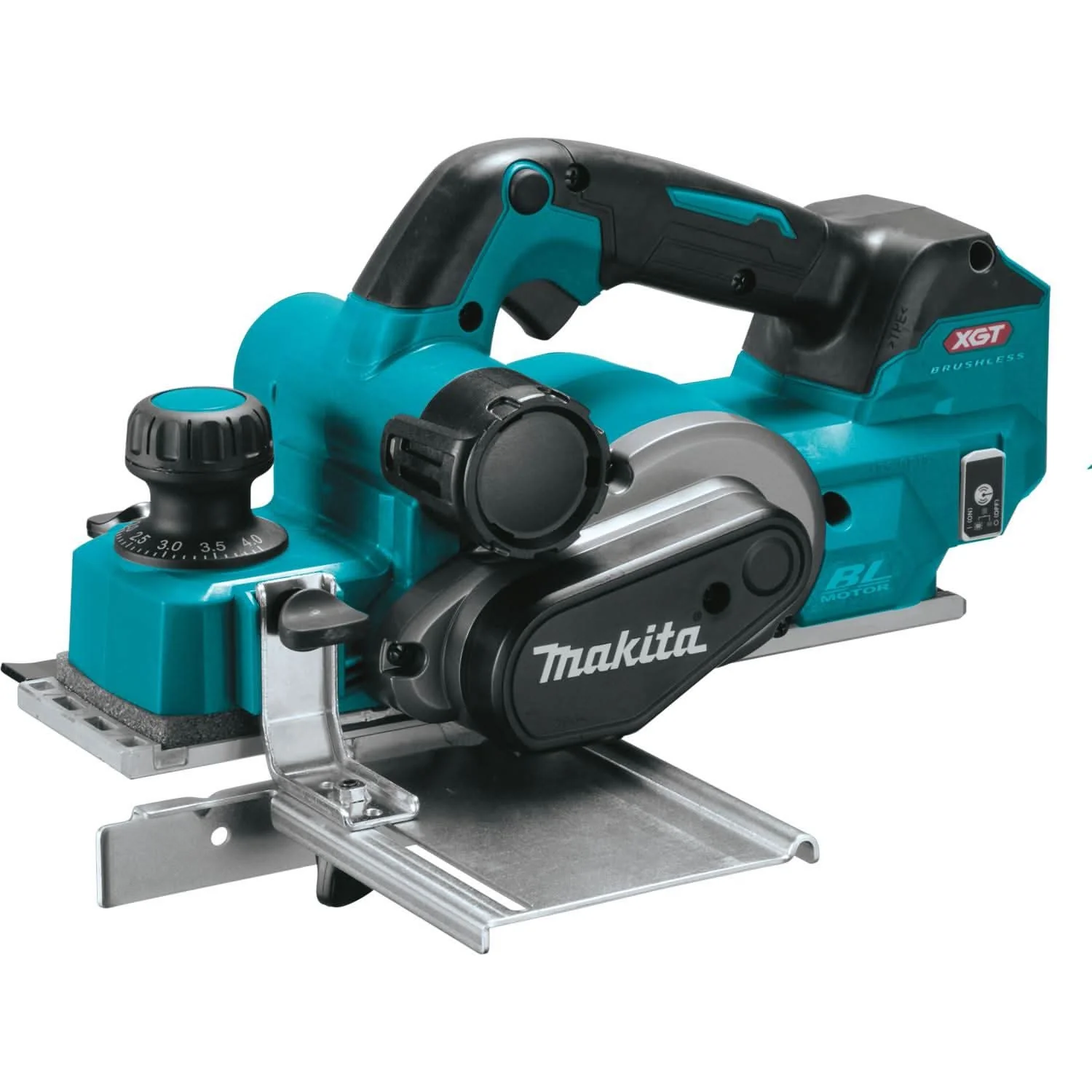

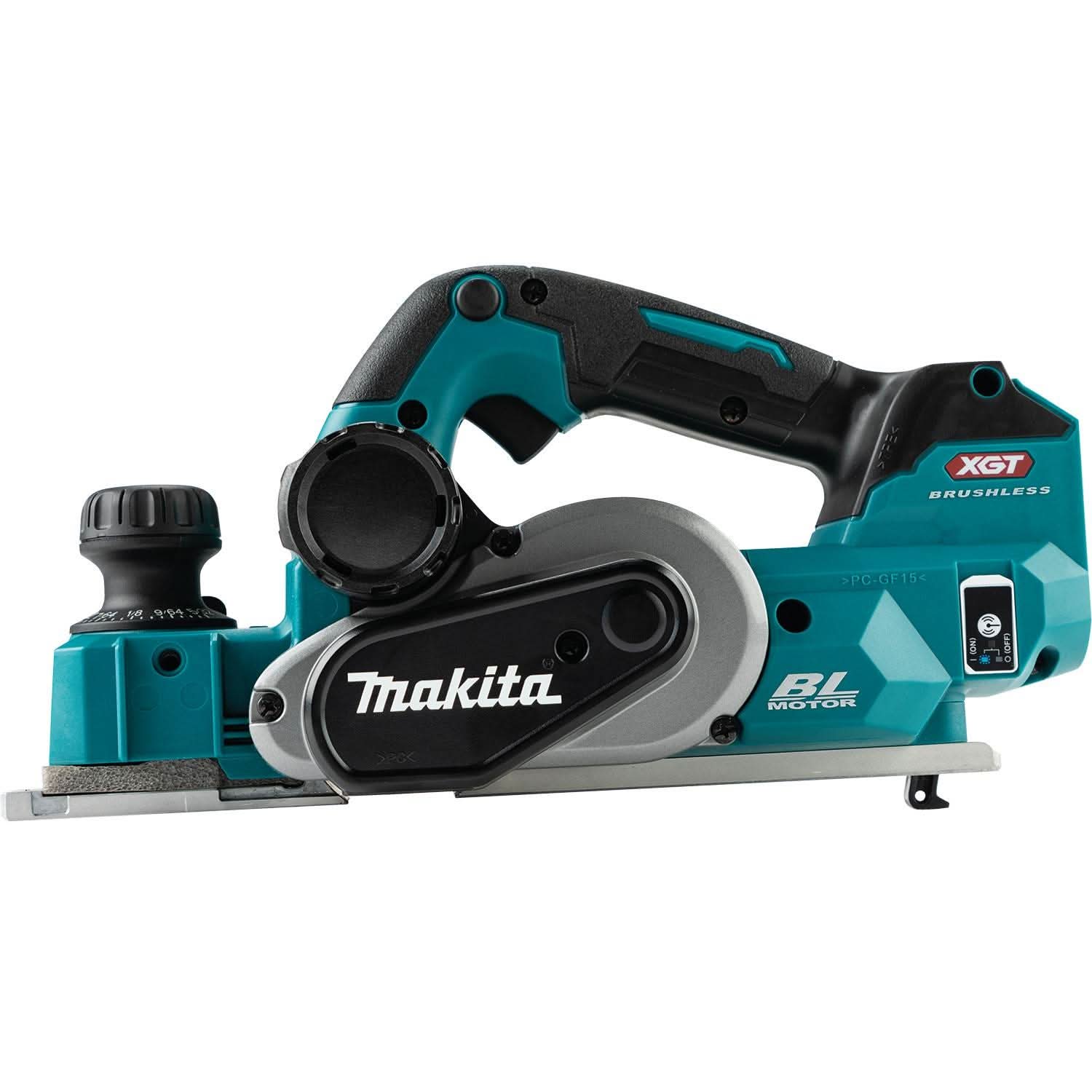

Makita GPK01Z 40V max XGT Brushless Cordless 3-1/4″ Planer, AWS Capable, Tool Only is a cordless wood planer built for jobsite fitting, edge trimming, and smoothing rough stock. This is a planer designed for fast stock removal and accurate dimensioning in finish carpentry, remodeling, and general construction. Model Number: GPK01Z. If you need a cordless planer that can move from door fitting to deck work without dragging a cord behind you, this is the kind of tool that makes sense.

The big story here is output. Makita pairs a brushless motor with a 15,000 RPM no-load speed, so the cutter head stays aggressive enough for quick material removal while still aiming for a clean finish. Capacity is right where a serious jobsite planer should be, with up to 3-1/4 inches of planing width and 5/32 inch of planing depth in a single pass. It can also rabbet up to 1 inch deep, which gives it more range than a basic edge trimmer.

On battery runtime, Makita claims up to 311 feet of planing at 1/16 inch depth using a 40V XGT 4.0Ah battery. That matters because a cordless planer only earns its keep if it can stay useful through real punch-list work, repeated door adjustments, and trim fitting without turning into a short-run specialty tool. For installers and remodelers already on the XGT platform, this tool is clearly aimed at replacing a corded planer for a lot of day-to-day work.

Makita did not stop at raw speed. The precision-machined aluminum base is there for planing accuracy, and the three chamfering groove options make it easier to break edges cleanly and consistently. The click depth adjustment knob uses an easy-to-read scale from 0 to 5/32 inch, which is the kind of feature you appreciate when you are sneaking up on a fit instead of hogging everything off at once. The spring-loaded stand lifts the base to help protect both the blades and the workpiece when you set the tool down between passes.

For finish quality and maintenance, this planer uses a two-blade cutter head with double-edge carbide blades. That setup is a good fit for a cordless planer because it balances cutting performance, finish quality, and straightforward blade service. Makita also includes an easy blade setting system, and the electric brake helps keep the workflow moving when you are making repeated short passes or jumping from one piece to the next.

Jobsite practicality is strong. Chip ejection can be directed to either side of the tool, which helps when you are working against a wall, planing from awkward positions, or trying to keep chips away from your line of sight. The ergonomically centered balance and rubberized soft grips on the front and rear handles are not glamorous features, but they matter on a planer because control is everything. A planer that feels planted is easier to start flat, easier to keep flat, and less likely to leave you fixing your own mistakes.

On system fit, this is part of the Makita 40V max XGT platform and is compatible with Makita 40V max XGT Lithium-Ion batteries. It is also AWS capable, which means it can wirelessly pair with a compatible dust extractor when used with the Auto-Start Wireless Transmitter, part number 198901-5, sold separately. Add in Makita XPT protection for increased dust and water resistance, and the tool is clearly built for real site conditions rather than shop-only use.

If you are a door and window installer, finish carpenter, deck builder, remodeler, or general contractor who already owns XGT batteries, this cordless planer is an easy fit. It is especially strong for users who want corded-level productivity in a more mobile package. If you are not already on XGT, remember this is a bare tool, so battery and charger are separate. But if you want a serious cordless planer instead of a light-duty convenience tool, this one checks the right boxes.

Makita GPK01Z 40V max XGT Brushless Cordless 3-1/4″ Planer, AWS Capable, Tool Only on the Job

This cordless planer is set up for accurate, repeatable work without making the tool fussy to use. The layout keeps the controls easy to reach, while the base and cutter head features are aimed at clean passes and quicker setup between tasks.

• Click depth adjustment scale from 0 to 5/32 inch for controlled material removal
• Precision-machined aluminum base with three chamfering groove options
• Left or right chip ejection helps when working in tight spaces or against a wall
• Spring-loaded stand helps protect blades and the work surface when setting the planer down

What’s in the Box

• (1) Makita GPK01Z Planer
• (1) Socket Wrench (782209-3)
• (1) Guide Rule (122785-9)
• (1) Depth Guide (342390-8)
• (1) 3-1/4 inch Planer Blade, 2-Pack (D-46246)
• (1) Blade Gauge (191C19-9)

Battery, charger, and AWS Wireless Transmitter are sold separately.

Key Specifications

No-Load Speed (RPM)	15,000 RPM
Planing Width	3-1/4 in
Planing Depth	5/32 in
Rabbet Capacity	1 in
Overall Length	13-1/8 in
Net Weight (lbs)	6.5 lbs
Voltage (V)	40V max
Motor Type	Brushless

Compatibility

Battery Platform

Compatible with Makita 40V max XGT Lithium-Ion batteries.

AWS System

AWS capable for wireless on-off communication with a compatible Makita dust extractor when using Auto-Start Wireless Transmitter 198901-5, sold separately.

Charging System

Designed for the Makita XGT charging system. Charger is not included with this bare tool.

Built For

Finish Carpentry Door & Window Installation Deck Building Remodeling General Contracting Woodworking Door Fitting Edge Chamfering

Pro Tip

When you are fitting doors, start with shallow passes using the click depth knob instead of trying to take the full cut at once. You will get a cleaner edge, better control at the start of the pass, and less chance of overshooting your final fit.

Warranty & Support

3-year limited warranty.

Tool Nut’s Take

Tool Nut’s Take

Makita GPK01Z 40V max XGT Brushless Cordless 3-1/4″ Planer, AWS Capable, Tool Only is Built for Real Jobsite Planing

This is the kind of cordless planer that makes sense for pros who actually use a planer often, not just once in a while.

• Who it’s for: Finish carpenters, remodelers, installers, and contractors who want cordless mobility without giving up serious cutting speed or usable capacity.
• Why it stands out: The 15,000 RPM brushless motor, 3-1/4 inch planing width, 5/32 inch cut depth, AWS capability, and solid aluminum base give it the right mix of speed, control, and system value.
• Worth knowing: This is a bare tool. If you are not already on Makita XGT, you need to budget for the battery and charger, and the AWS transmitter is another separate add-on.

Common Questions

• What battery platform does this planer use? It uses Makita 40V max XGT Lithium-Ion batteries.
• Is this an AWS-ready planer? Yes. It is AWS capable and works with the Auto-Start Wireless Transmitter 198901-5, sold separately, for wireless communication with a compatible dust extractor.
• How much material can it remove in one pass? It planes up to 3-1/4 inches wide and 5/32 inch deep in a single pass, and it can rabbet up to 1 inch deep.
• Does it include a battery and charger? No. This is a tool-only version, so the battery and charger are not included.
