Description

Key Features

Fast Framing Power

The Makita-built brushless motor runs at 6,000 RPM, so this circular saw keeps cut speed up in demanding framing and general construction work without dragging through the cut.

Single-Pass Capacity

With 2-3/8 in. cutting capacity at 90 degrees, it handles 3x material in one pass. That means fewer flip-and-finish cuts when you are moving through thicker stock.

Rail and AWS Ready

The guide rail compatible base works with optional guide rails without an adapter, and AWS capability lets the saw communicate wirelessly with a compatible dust extractor when the optional transmitter is added.

Overview

The Makita GSH02Z 40V max XGT Brushless Cordless 7-1/4″ Circular Saw is a cordless sidewinder saw built for high-demand cutting on the jobsite. This is a circular saw designed for framing, roofing, forming, and general construction cutting. Model Number: GSH02Z. It is a bare tool, so it is aimed at users already on the Makita 40V max XGT platform or those building into that system and wanting a full-size saw with real jobsite capacity.

What makes this saw matter is the combination of speed and depth. The brushless motor delivers 6,000 RPM for fast cutting performance, and the 2-3/8 in. cutting capacity at 90 degrees gives you the ability to cut 3x material in a single pass. On a framing crew or during remodel work, that translates to fewer passes, cleaner workflow, and less time wrestling thick stock with an underpowered cordless saw.

Makita also built in Automatic Torque Drive Technology, which adjusts cutting speed under load for optimum cutting performance. In plain terms, the saw reacts when the cut gets tougher instead of feeling like it falls on its face. That matters when you move from easier sheet goods into denser framing lumber or when the blade starts seeing more resistance midway through a cut.

The saw is set up for more than basic rip and cross cuts. It has a 0 to 56 degree bevel range with positive stops at 22.5 degrees, 45 degrees, and 56 degrees, plus max cutting capacities of 1-11/16 in. at 45 degrees and 1-5/8 in. at 48 degrees. If you are cutting roof angles, bevel work, or form material, those stops save setup time and help you get repeatable cuts without sneaking up on every adjustment.

From a build standpoint, Makita kept the weight down without making the tool feel cheap. The die-cast magnesium base, blade guard, and blade cover are there for a reason: you get durability with less weight to carry around all day. The saw measures only 13-1/4 in. long, which helps when you are working off sawhorses, climbing staging, or cutting in tighter spots where bulk gets in the way.

Jobsite practicality is strong here too. An electric brake helps the blade stop quickly between cuts, which keeps work moving and makes repositioning faster. Dual L.E.D. lights with preglow and afterglow help you track the cut line in dim spaces, early starts, or interior work. Makita’s Extreme Protection Technology is built in to improve dust and water resistance in harsh conditions by channeling water and dust away from key internal components.

System compatibility is one of the bigger reasons to buy this model. The GSH02Z is compatible with Makita 40V max XGT lithium-ion batteries, and the XGT platform uses digital communication to monitor and protect against overload, over-discharge, and overheating. The base is guide rail compatible and works with optional guide rails without needing an adapter, which is a real advantage for straight finish-sensitive cuts. It is also AWS capable, meaning it can wirelessly communicate with a compatible dust extractor when used with the optional Auto-start Wireless Transmitter, part number 198901-5.

Who should buy it? Framers, builders, roofers, form workers, and serious remodelers who want a cordless circular saw that is not giving up capacity or cut speed to stay cordless. If you are already on XGT, this one makes a lot of sense. If you need a compact homeowner saw for occasional shelf projects, it is more saw than you probably need. But if your circular saw earns its keep every day, this is the kind of model that saves time in real work, not just on paper.

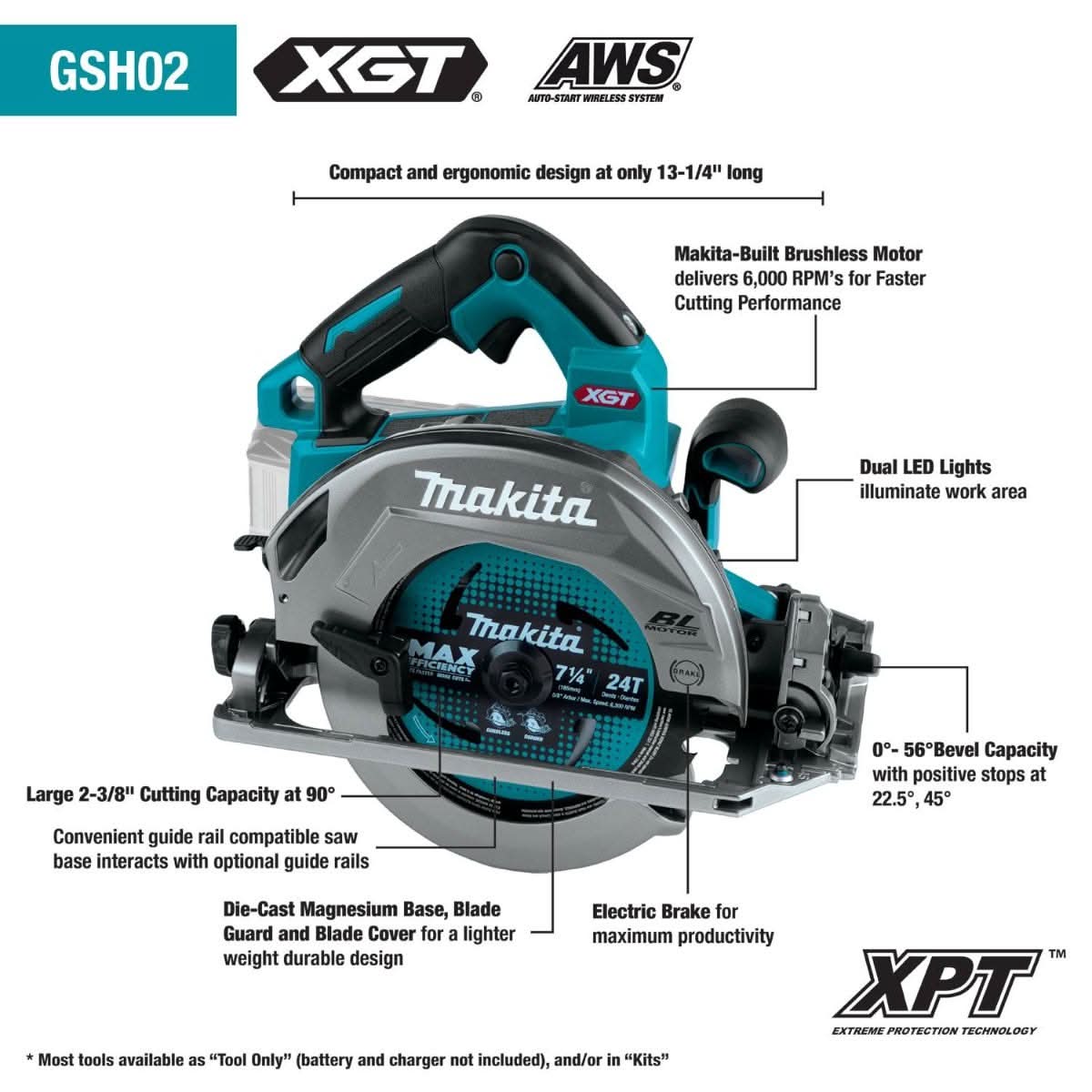

Makita GSH02Z 40V max XGT Brushless Cordless 7-1/4″ Circular Saw in a Compact Full-Size Layout

This saw is built like a real production tool, not a stripped-down cordless compromise. You get full-size 7-1/4 in. capacity, a compact 13-1/4 in. overall length, and a magnesium build that helps keep weight manageable while still holding up on the job.

• 7-1/4 in. blade diameter with 5/8 in. arbor
• Electric brake, dual L.E.D. lights, and onboard hex wrench storage

What’s in the Box

• (1) Makita GSH02Z Circular Saw
• (1) 7-1/4 in. saw blade
• (1) Hex wrench

Battery and charger are sold separately.

Key Specifications

Voltage	40V max XGT
Blade Diameter	7-1/4 in.
Arbor Size	5/8 in.
No-Load Speed	6,000 RPM
Max Cutting Capacity at 90°	2-3/8 in.
Max Cutting Capacity at 45°	1-11/16 in.
Bevel Capacity	0° to 56°
Overall Length	13-1/4 in.

Compatibility

Battery Platform

Compatible with Makita 40V max XGT Lithium-Ion batteries.

Guide Rail System

Guide rail compatible base works with optional guide rails for straight or bevel cutting without an adapter.

AWS Dust Extraction

AWS capable for wireless on-off communication with an AWS-equipped dust extractor when the optional Auto-start Wireless Transmitter, part no. 198901-5, is installed.

Built For

Framing Roofing Forming Construction General Contracting Remodeling Builders Straight and bevel cutting

Pro Tip

If you already use guide rails for finish-sensitive sheet goods or long rips, this saw saves setup hassle because the base is rail compatible without an adapter. That means fewer parts to keep track of and quicker changeover between rough framing cuts and straight precision cuts.

Warranty & Support

3-year limited warranty.

Tool Nut’s Take

Tool Nut’s Take

Makita GSH02Z 40V max XGT Brushless Cordless 7-1/4″ Circular Saw for Crews Who Actually Lean on Their Saw

This is a serious cordless circular saw for users who need full-size capacity, rail compatibility, and jobsite speed in one package.

• Who it’s for: Framers, roofers, builders, and remodelers who cut all day and want a cordless saw that can keep up with heavier work.
• Why it stands out: The 6,000 RPM brushless motor, 2-3/8 in. depth at 90 degrees, guide rail compatible base, and AWS capability make it more than just another 7-1/4 in. sidewinder.
• Worth knowing: It is a bare tool, so you need a Makita 40V max XGT battery and charger, and AWS requires the optional transmitter if you want wireless dust extractor control.

Common Questions

• Is this a corded or cordless saw? It is a cordless circular saw powered by the Makita 40V max XGT battery platform.
• Does it work with guide rails? Yes. The saw has a guide rail compatible base that works with optional guide rails without an adapter.
• Can it connect to a dust extractor automatically? Yes, it is AWS capable. For wireless on-off communication, it needs the optional Auto-start Wireless Transmitter and a compatible AWS-equipped dust extractor.
• What is the maximum cutting depth at 90 degrees? The max cutting capacity at 90 degrees is 2-3/8 in.
