Description

Key Features

Long-Range Accuracy

Built for layout and grading work where small errors turn into big problems. It delivers horizontal accuracy of ± 1/16 in. at 100 ft. and vertical accuracy of ± 1/8 in. at 100 ft., with an operating range up to 2,600 ft. using a digital receiver.

Dual Battery Flexibility

The Makita SKR001Z 18V LXT Green Exterior Dual Slope 360-Degree Rotary Laser works on Makita 18V LXT batteries and can also run on 40V max XGT with the correct battery tray. That gives crews more flexibility if they already own Makita cordless platforms.

Jobsite-Tough Build

IP67 dust and water resistance, four-sided rubber handles, and drop protection up to 6 ft. help this rotary laser hold up on real jobsites. The tip-over alarm also lets you know when the tool has been knocked out of position.

Overview

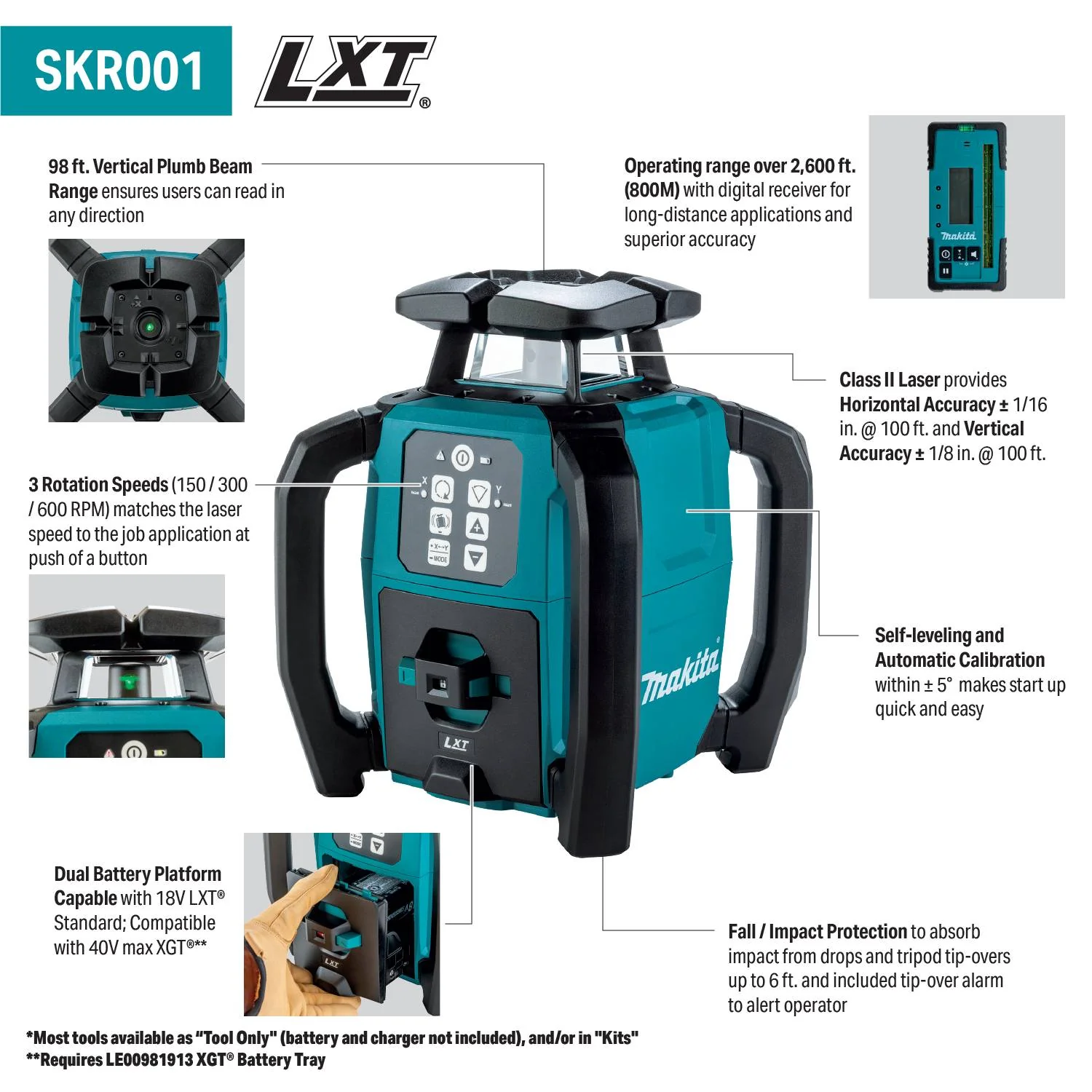

The Makita SKR001Z 18V LXT Green Exterior Dual Slope 360-Degree Rotary Laser with Case, Tool Only is a cordless exterior rotary laser built for layout, leveling, and grading work across large areas. This is a rotary laser designed for long-distance leveling, grading, slope work, and jobsite layout. Model number SKR001Z, it is aimed at contractors who need better outdoor visibility, long operating range, and the flexibility to run on Makita battery platforms they may already own.

Where this tool earns its keep is on jobs where tape-measure methods are too slow and line levels are not even in the conversation. Makita rates it for up to 2,600 ft. operating range with a digital receiver, which makes it a practical fit for commercial construction, road grading, foundation plotting, hardscape layout, drain pitch, plumbing walls and frames, and interior layout work. The green beam helps in outdoor conditions where lower-visibility beams can get washed out, and the dual slope capability gives you a way to handle ramps, pipes, and grade changes without fighting the tool.

Accuracy is the big deciding factor with any rotary laser, and Makita gives you hard numbers here. Horizontal accuracy is rated at ± 1/16 in. at 100 ft., and vertical accuracy is rated at ± 1/8 in. at 100 ft.. That matters when you are setting forms, checking elevations, laying out hardscape, or establishing pitch, because a tool like this only saves time if you can trust what it is telling you. Makita also includes self-leveling and automatic calibration within ± 5 degrees, so setup is faster and you spend less time chasing level before you can start working.

Makita also gave this laser enough adjustment to match different tasks instead of forcing one speed for everything. You get three rotation speeds: 150, 300, and 600 RPM, plus three scan modes: 10 degrees, 20 degrees, and 30 degrees. In plain terms, that means you can tailor the beam behavior to the kind of work you are doing, whether you want broad site coverage or a tighter scan area. There is also a 98 ft. vertical plumb beam range and 100 ft. Bluetooth remote control range, which helps when you are working around a larger layout and do not want to walk back to the unit every time you need to make an adjustment.

On the durability side, Makita clearly built this for rough handling instead of showroom conditions. The housing uses four-sided rubber handles that improve grip and add impact protection. It has IP67 dust and water resistance for harsh jobsite conditions, plus fall protection for drops and tripod tip-overs up to 6 ft. There is also a tip-over alarm to alert the operator if the unit gets bumped out of position. Those details matter because layout tools do not live pampered lives. They ride in trucks, get carried across dirt and concrete, and spend plenty of time near equipment, mud, and foot traffic.

Battery flexibility is another strong point. The SKR001Z is part of the Makita 18V LXT platform, and it is also compatible with 40V max XGT when used with the specified battery tray. Makita lists runtime up to 135 hours with an 18V LXT 6.0Ah battery at maximum rotation speed, and up to 160 hours with a 40V max XGT 4.0Ah battery. For crews already invested in Makita cordless gear, that can be the difference between adding a laser to the system you already run and buying into another battery setup just to cover layout work.

This tool is a good fit for contractors who need a serious exterior rotary laser and want cordless convenience without giving up range or durability. If you are doing site layout, slope detection, grade work, drop ceilings, cabinet installation, framing layout, or foundation and hardscape work, this is the kind of laser that makes sense. If your work is mostly small indoor punch-list tasks, it is probably more laser than you need. But for pros who need range, accuracy, slope capability, and a platform-friendly cordless setup, this Makita is built with the right priorities.

Built for Rough Jobsite Layout

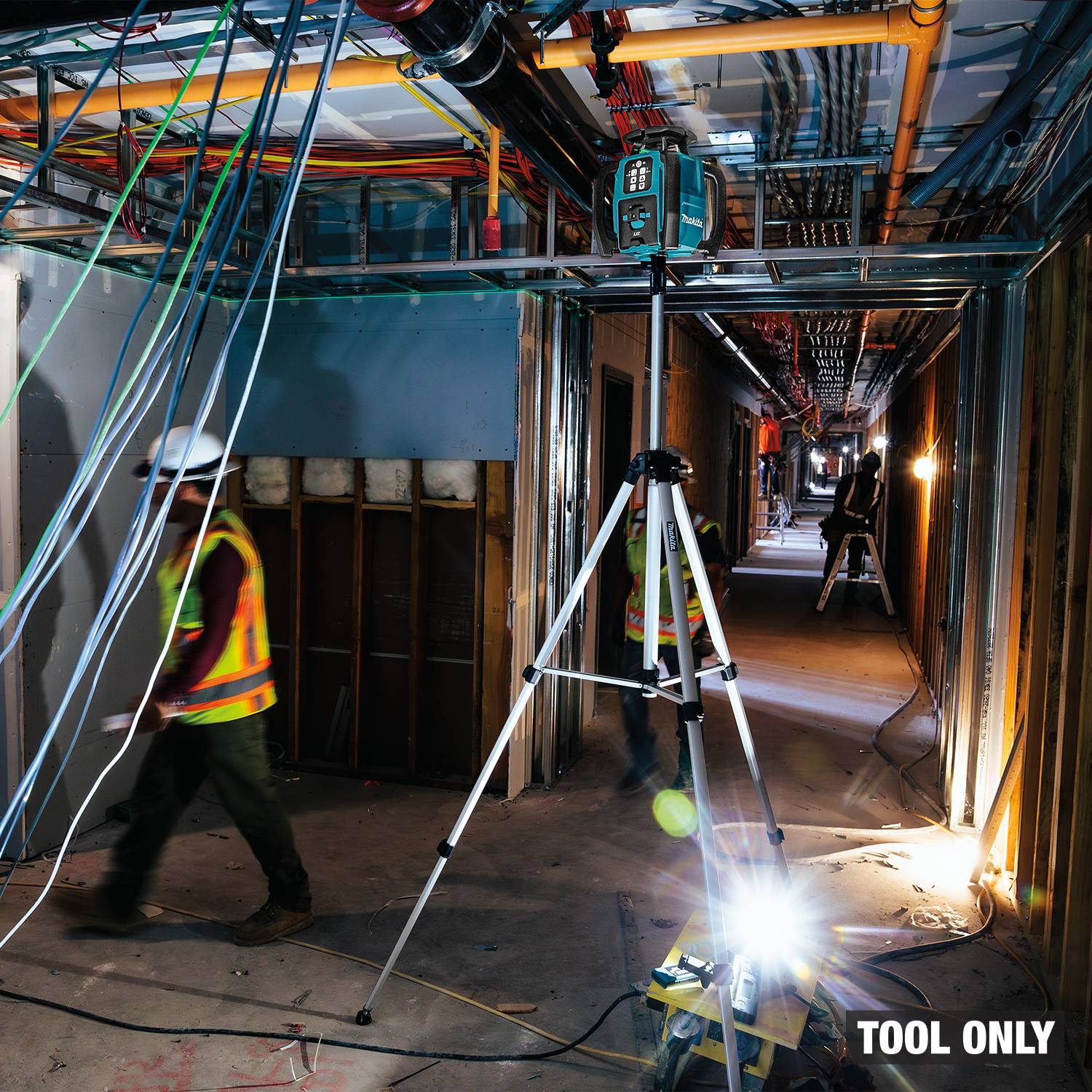

This rotary laser is built around long-range layout work where visibility, stability, and durability matter more than flashy extras. The protected housing and rugged handle design are there for one reason: to keep the laser working when the jobsite is not gentle.

• IP67 dust and water resistance for harsh jobsite conditions
• Impact protection for drops and tripod tip-overs up to 6 ft.
• Tip-over alarm helps catch a bumped laser before it turns into layout mistakes

Flexible Control for Slope and Layout Work

The value here is not just that it throws a beam a long way. It gives you useful control over how that beam works, so you can adapt the laser to the job instead of working around a one-mode tool.

• Three rotation speeds: 150 / 300 / 600 RPM
• Three scan modes: 10 degrees / 20 degrees / 30 degrees
• Self-leveling and automatic calibration within ± 5 degrees speeds up setup

What’s in the Box

• (1) Adjustable Wall Mount Bracket, SKR001 (LE00981930)
• (1) LDX2 Digital Laser Receiver & Receiver Bracket Set, SKR001 (LE00981928)
• (1) Radio Remote Control, SKR001 (LE00981929)
• (1) Receiver Bracket, SKR001 (LE00835249)
• (1) LXT Battery Tray (LE00981912)
• (1) Laser Safety Glasses
• (1) Target Plate
• (1) Hard Plastic Case

Battery and charger are sold separately.

Key Specifications

Battery Platform	Makita 18V LXT Lithium-Ion
Working Range with Detector	2,625 ft.
Horizontal Accuracy	± 1/16 in. at 100 ft.
Vertical Accuracy	± 1/8 in. at 100 ft.
Rotation Speeds	150 / 300 / 600 RPM
Scan Modes	10 degrees / 20 degrees / 30 degrees
IP Rating	IP67
Weight	8.8 lbs. without battery

Compatibility

Battery Platform

Runs on Makita 18V LXT batteries.

Alternate Platform Support

Also compatible with 40V max XGT when used with Battery Tray LE00981913.

Tripod Mounting

Compatible with common tripods using 5/8 in. threaded screw mounts in horizontal and vertical positions.

Built For

Commercial Construction Road Grading Foundation Plotting Hardscape Layout Drain Pitch Interior Layout Drop Ceiling Installation Cabinet Installation

Pro Tip

If you are using this laser for grade or drain pitch work, pick the rotation speed and scan mode based on how far you need to read, then verify the tripod is settled before trusting your first reference. That makes the tip-over alarm a backup instead of the thing that tells you your layout already moved.

Warranty & Support

3-year limited warranty.

Tool Nut’s Take

Tool Nut’s Take

Makita SKR001Z 18V LXT Green Exterior Dual Slope 360-Degree Rotary Laser That Actually Belongs on a Real Jobsite

The Makita SKR001Z 18V LXT Green Exterior Dual Slope 360-Degree Rotary Laser with Case, Tool Only is for crews that need range, slope capability, and jobsite durability more than they need a bargain-bin laser that quits after a few bumps.

• Who it’s for: Contractors handling grading, foundation layout, hardscape, framing layout, ceilings, cabinet install, and other work where a rotary laser saves serious time.
• Why it stands out: You get long operating range, dual slope capability, green beam visibility, Bluetooth remote control, and the option to stay inside Makita’s cordless battery ecosystem.
• Worth knowing: This is a bare tool setup, so battery and charger are not included. If you want to run it on 40V max XGT, you also need the correct battery tray.

Common Questions

• Is this a rotary laser or a line laser? It is a dual slope 360-degree rotary laser designed for leveling, grading, and layout work.
• What is the working range? Makita lists an operating range up to 2,600 ft., with specification data showing 2,625 ft. working range with detector.
• Can it run on more than one Makita battery platform? Yes. It runs on 18V LXT batteries and is also compatible with 40V max XGT when used with Battery Tray LE00981913.
• Is it built for outdoor jobsite use? Yes. It uses a green beam for better outdoor visibility and has IP67 dust and water resistance, plus drop and tripod tip-over protection.
