Description

Key Features

Tight-Space Power

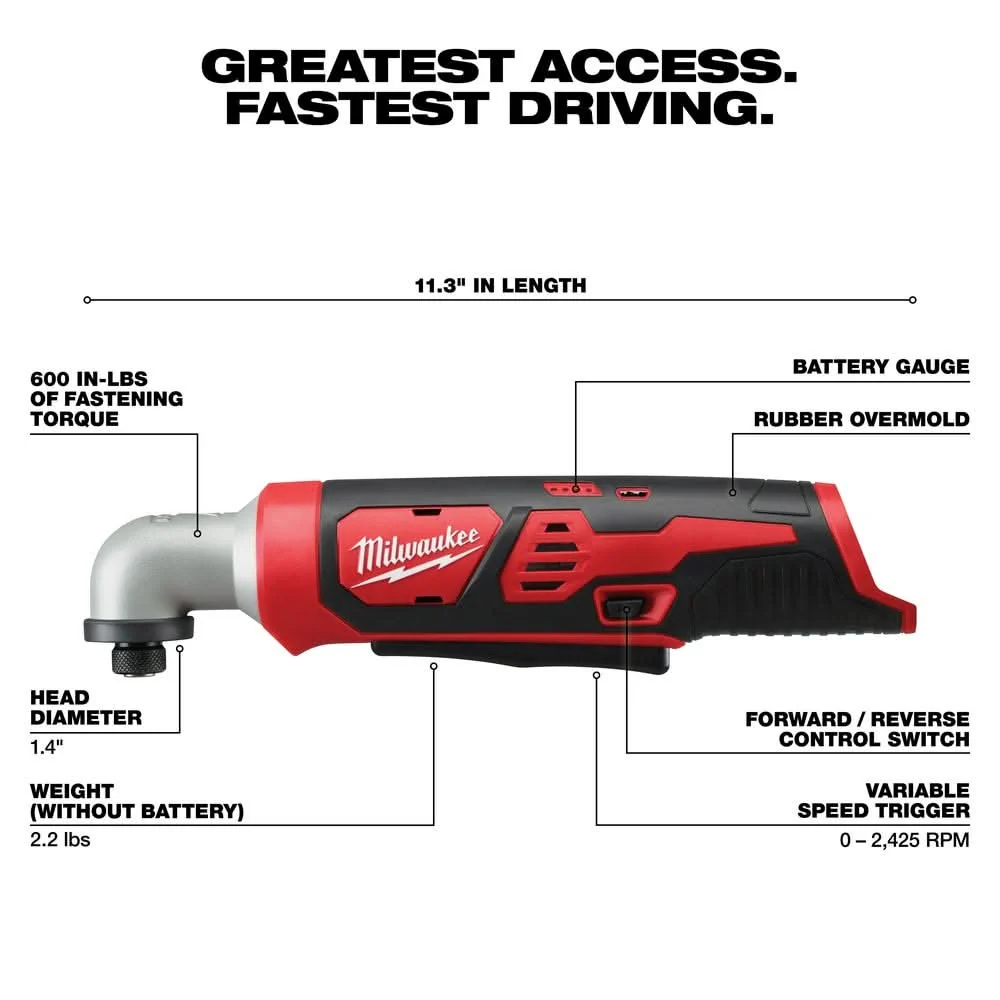

This Milwaukee 2467-20 M12 1/4″ Hex Right Angle Impact Driver packs up to 600 in-lbs of torque into a compact right angle layout, so you can drive fasteners where a standard impact driver simply will not fit.

1.4 in Head

The 1.4 inch head diameter is the whole story here. It gives you better access between studs, inside cabinets, and around engine bays where clearance is limited.

Better Grip Control

An extended paddle switch and variable speed trigger let you run the tool from different hand positions and ease into fasteners instead of overdriving them.

Overview

The Milwaukee 2467-20 M12 1/4″ Hex Right Angle Impact Driver is a cordless right angle impact driver built for driving screws and fasteners in places where a full-size drill or impact driver cannot reach. This is a right angle impact driver designed for tight-space fastening in cabinets, framing bays, mechanical work, and repair work. Model Number 2467-20. If you already run Milwaukee M12 batteries and need more access without giving up useful torque, this is the tool that fills that gap.

The big reason people buy this tool is access. Milwaukee gives it a compact 1.4 inch head diameter, which matters when you are working between studs, inside a vanity, behind ductwork, or down in an engine compartment. It also accepts a 1/4 inch hex quick-change bit interface and is designed to work with most 1 inch insert bits, so you can keep the overall working length short and get into places that usually turn into a hand-tool job.

Performance is solid for the size. The tool is rated at up to 600 inch-pounds of torque, 0 to 2,450 RPM, and 0 to 3,300 impacts per minute. In practical terms, that means it is not just a niche access tool that barely gets by. It is built to keep driving common fasteners with real speed, especially in wood, light construction, remodeling, punch-list work, and mechanical service where you need an impact driver rather than a drill.

Milwaukee also got the control side right. Variable speed helps when you are starting a screw near finished material or working with smaller fasteners that are easy to strip. The extended paddle switch is a smart setup on a right angle tool because it gives you multiple grip positions. That makes a difference when your wrist is twisted around a corner and you cannot hold the tool the same way every time.

On the design side, this is a brushed-motor M12 tool that stays simple and proven. It weighs about 2.2 pounds without a battery and measures 11.3 inches long, so it stays manageable overhead and in awkward positions. Milwaukee also calls out REDLINK Intelligence for optimized performance and overload protection, which helps the tool manage hard use better than a basic cordless tool with no electronic protection.

Battery platform matters here too. The Milwaukee 2467-20 M12 1/4″ Hex Right Angle Impact Driver is part of the M12 system, which is one of the deeper 12V cordless platforms out there. If you already own M12 batteries and chargers, this bare tool makes a lot of sense because you can add a specialty fastening tool without buying into another battery line. If you do not own M12 yet, just know this version does not include a battery or charger.

Who is it for? Electricians, remodelers, cabinet installers, maintenance techs, automotive techs, plumbers, and general contractors will get the most from it. Serious DIY users working on built-ins, furniture assembly, under-sink installs, and vehicle projects will also appreciate what it does. If your main problem is clearance, this right angle impact driver solves it faster and with more control than trying to force a standard impact driver into a space it was never meant to fit.

Reach Fasteners Other Tools Cannot

When the fastener is buried behind parts, brackets, or framing, access matters more than raw size. This tool is built specifically for that kind of work.

• 1.4 inch head diameter helps the tool fit where standard impact drivers do not
• Right angle layout is well suited for mechanical service, repair, and tight-space fastening

Keep the Tool Short and Manageable

Inside cabinets, casework, and built-ins, overall working length is everything. The short head and 1/4 inch hex quick-change interface help keep the setup compact.

• Compatible with most 1 inch insert bits for maximum access in shallow spaces
• Extended paddle switch allows different hand positions when you cannot hold the tool straight on

Real Impact Driver Speed in a Specialty Format

A lot of tight-access tools trade away too much performance. This one is built to stay useful on actual jobs, not just light-duty assembly.

• Up to 600 in-lbs of torque for driving fasteners through wood and general construction materials
• 0 to 2,450 RPM and 0 to 3,300 IPM for faster fastening and better productivity

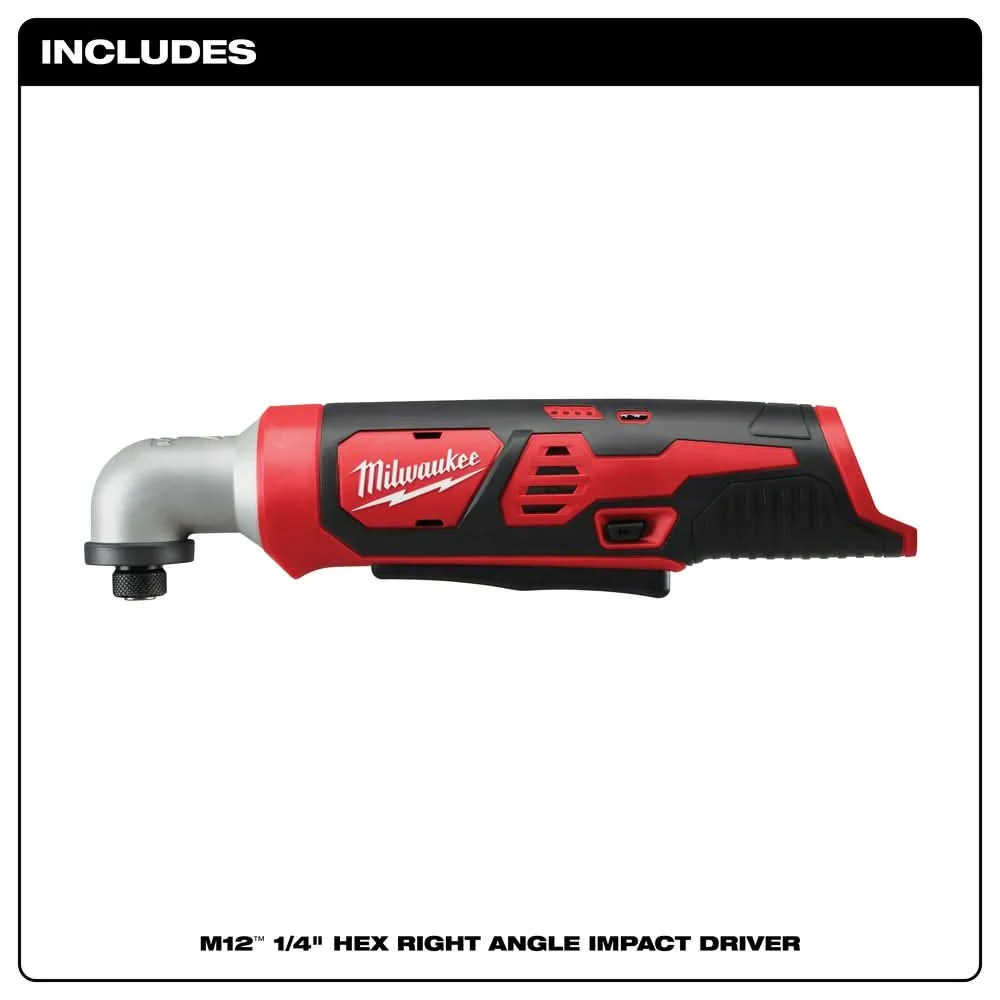

What’s in the Box

• (1) Milwaukee 2467-20 M12 1/4″ Hex Right Angle Impact Driver

Battery and charger are sold separately.

Key Specifications

Battery Platform	M12
Motor Type	Brushed
Torque	600 in-lbs
No-Load Speed	0 – 2,450 RPM
Impact Rate	0 – 3,300 IPM
Chuck Type	Hex Quick Change
Chuck Size	1/4 in
Length	11.3 in
Weight Excluding Battery	2.2 lb
ONE-KEY Enabled	No

Compatibility

Battery Platform

Works with Milwaukee M12 batteries and chargers.

Bit Interface

Uses a 1/4 inch hex quick-change chuck for standard hex driver bits.

Best Access Setup

Designed to work with most 1 inch insert bits when you need the shortest possible fastening setup.

Built For

Construction Remodeling Repair Work Cabinet Installation Automotive Electrical Plumbing General Contracting

Pro Tip

If you are buying this tool for clearance, pair it with short 1 inch insert bits. That keeps the overall nose length down and lets the Milwaukee 2467-20 do what it is built for instead of giving that space back with a long bit holder.

Warranty & Support

5 Year Limited Warranty.

Tool Nut’s Take

Tool Nut’s Take

Milwaukee 2467-20 M12 1/4″ Hex Right Angle Impact Driver Means Business in Tight Spots

This is the kind of specialty fastening tool that earns its keep the first time a normal impact driver will not fit and you still need real driving speed.

• Who it’s for: Pros and serious DIY users doing cabinet work, remodeling, service, repair, and automotive jobs where clearance is the problem.
• Why it stands out: The compact 1.4 inch head, useful 600 in-lbs of torque, and extended paddle switch make it more than a gimmick access tool.
• Worth knowing: This is a bare tool, so bring your own M12 battery and charger. If you already own the platform, that is a plus, not a drawback.

Common Questions

• What type of bits does this tool use? It uses a 1/4 inch hex quick-change chuck and is designed to work with standard hex driver bits, including most 1 inch insert bits.
• What battery platform does it use? It is part of the Milwaukee M12 system and works with M12 batteries.
• Is this a brushless impact driver? No. The listed motor type is brushed.
• Does it support ONE-KEY? No. Milwaukee lists this model as not ONE-KEY enabled.
