Description

Key Features

Compact 2-Tool Kit

The Milwaukee 3497-22 M12 FUEL 2-Tool Combo Kit gives you a subcompact hammer drill and impact driver that are built for tight work areas. That matters when you’re working inside cabinets, between studs, above your head, or anywhere a full-size tool gets in the way.

Brushless Power

Both tools are part of Milwaukee’s M12 FUEL line, built around a brushless motor and electronic controls for faster drilling and driving under load. You get real jobsite performance without jumping up to a heavier 18V platform.

Better Bit Visibility

The impact driver uses a Tri-LED light setup around the collet instead of a single light under the handle. That puts light where the bit meets the fastener and cuts down on shadows when you’re working in dark corners.

Overview

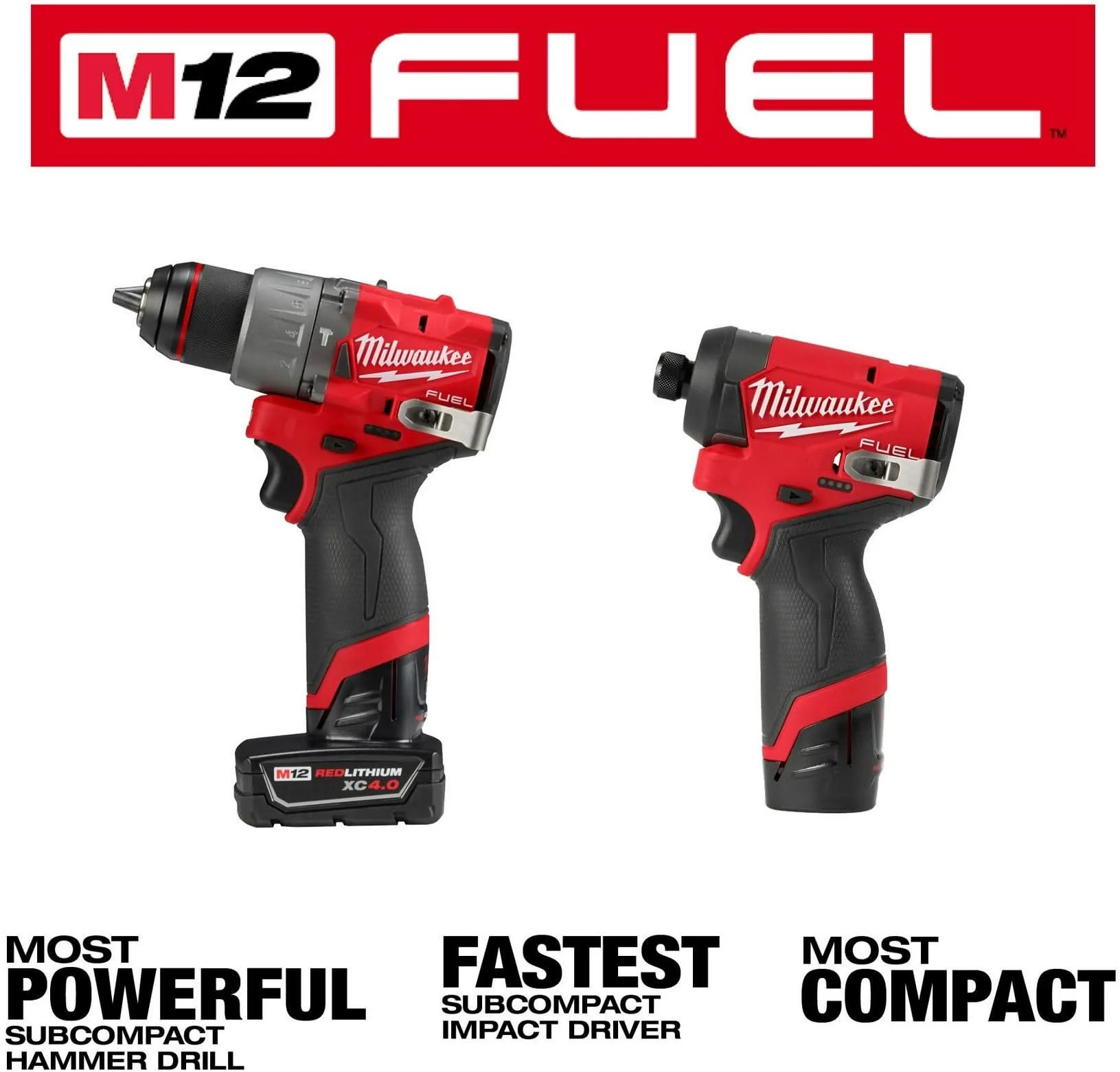

The Milwaukee 3497-22 M12 FUEL 2-Tool Combo Kit is a cordless combo kit built around a 1/2 inch hammer drill/driver and a 1/4 inch hex impact driver. This is a drill and impact driver combo kit designed for drilling, hammer drilling, and fastening in tight spaces. Model Number 3497-22. If you want compact tools that still handle real installation and service work, this kit is aimed right at that sweet spot.

Milwaukee positions this kit around subcompact size and speed under load, and the included tool set makes that easy to understand on the job. The hammer drill gives you a 1/2 inch all-metal chuck for stronger bit grip and better long-term durability, plus a mechanical clutch for more consistent screw driving across different fastener sizes. The impact driver adds 4-mode drive control with a dedicated self-tapping screw mode, so you get better control when you need finesse and fast output when you’re running long fasteners.

What separates this kit from a basic compact set is how much jobsite performance Milwaukee packs into the M12 FUEL platform. The tools use a brushless motor and REDLINK PLUS intelligence to manage power and heat, which is a big deal when you’re drilling or driving continuously instead of just doing the occasional quick task. Milwaukee also calls out the impact driver as its fastest subcompact impact driver, with up to 3,600 RPM listed in supplementary product data and 1,500 in-lbs of torque. In plain terms, that means it is built to keep moving on repetitive fastening work instead of feeling like a light-duty backup tool.

There are also a few practical design details that make this kit easier to live with day to day. The impact driver is only 5 inches long and 7.6 inches tall with the compact battery installed, which helps when you are driving screws inside electrical boxes, mechanical rooms, casework, and other cramped areas. Its Tri-LED lighting surrounds the collet to throw light directly at the fastener. On the drill side, the all-metal chuck and all-metal gearcase matter because those are the areas that usually show wear first when a compact drill gets used hard.

Battery setup is another strong point here. The kit includes both an M12 REDLITHIUM XC 4.0 battery and an M12 REDLITHIUM CP 2.0 battery, so you can choose longer runtime or a lighter, more compact setup depending on the task. That is a smart mix for service work because you are not locked into one battery size. Since this kit is part of the Milwaukee M12 system, the tools are also compatible with the broader M12 battery platform, which Milwaukee lists at over 125 tools.

This combo kit makes the most sense for electricians, HVAC techs, plumbers, remodelers, punch-list crews, maintenance teams, and serious DIY users who want compact cordless tools without giving up speed and control. If most of your work happens in finished spaces, overhead, or in places where a bulky drill slows you down, this kit is a practical buy. If you mostly drill large holes all day or run structural fasteners nonstop, you may still want a larger platform for max output, but for compact everyday drilling and fastening, this setup hits a very useful middle ground.

Compact Size That Actually Helps on the Job

This kit is built for users who need two core cordless tools ready to go without carrying a full-size setup everywhere. You get the basic drill-and-drive pairing most trades reach for first, plus two battery sizes so you can match runtime and size to the task.

• Includes a 1/2 inch hammer drill/driver and a 1/4 inch hex impact driver
• Comes with both an XC 4.0 battery and a CP 2.0 battery, plus charger and contractor bag

Durable Drill Design for Daily Use

The hammer drill is designed for real installation work, not just light-duty chores. The chuck, clutch, and compact overall size all work together to make it easier to drill accurately and drive screws without fighting the tool.

• 1/2 inch all-metal chuck for stronger grip and bit retention
• Mechanical clutch helps keep screw driving more consistent across different fasteners

See the Fastener Better

The impact driver is clearly set up for service work and interior installs where lighting is not always on your side. Milwaukee’s Tri-LED layout puts light around the bit instead of below it, which helps when you’re lining up screws in dark corners or inside a box.

• Tri-LED work lights reduce shadows at the bit tip
• 4-mode drive control includes a dedicated self-tapping screw mode

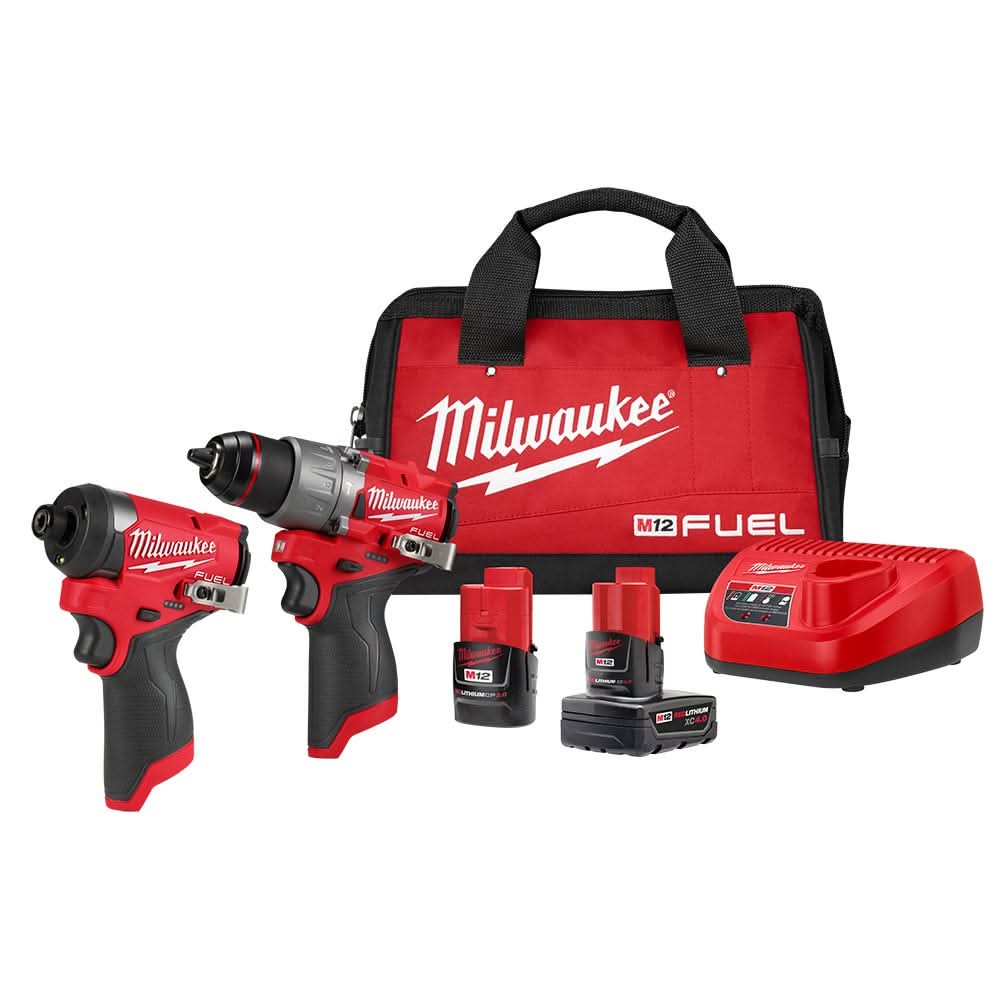

What’s in the Box

• (1) M12 FUEL 1/2 in Hammer Drill/Driver (3404-20)
• (1) M12 FUEL 1/4 in Hex Impact Driver (3453-20)
• (1) M12 REDLITHIUM XC 4.0 Battery Pack (48-11-2440)
• (1) M12 REDLITHIUM CP 2.0 Battery Pack (48-11-2420)
• (1) M12 Lithium-Ion Battery Charger (48-59-2401)
• (1) Contractor Bag

Key Specifications

Voltage	12V
Battery System	M12
Motor Type	Brushless
Number of Tools	2
Weight	8.03 lbs
Drill Chuck Size	1/2 in
Impact Collet	1/4 in Hex
Impact No-Load Speed	3,600 RPM
Impact Torque	1,500 in-lbs
Made In	Mexico

Compatibility

Battery Platform

Part of the Milwaukee M12 system and compatible with M12 batteries.

Impact Driver Interface

The impact driver uses a 1/4 inch hex collet for standard impact driver accessories.

Drill Capacity

The hammer drill uses a 1/2 inch chuck for common drill bits and driver accessories sized for that chuck capacity.

System Expansion

Milwaukee lists the M12 platform at over 125 tools, making this kit a solid starting point if you plan to build around compact cordless tools.

Built For

ElectricalHVACPlumbingRemodelingMaintenanceCabinet and fixture installationCompact drillingFastening in tight spaces

Pro Tip

Run the CP 2.0 battery when access matters most and switch to the XC 4.0 when you’re drilling or driving for longer stretches. That simple swap lets you keep the tool compact for finish work without giving up runtime when the pace picks up.

Warranty & Support

5 Year Tool Warranty, 3 Year XC Battery Warranty, and 2 Year CP Battery Warranty.

Tool Nut’s Take

Tool Nut’s Take

Milwaukee 3497-22 M12 FUEL 2-Tool Combo Kit for guys who want compact tools without settling for weak ones

This is one of the better compact drill and impact kits for service work, interior installs, and everyday carry because it gives you real speed, useful control, and a smart battery mix in a small package.

• Who it’s for: Tradesmen and serious DIY users who spend more time in tight spaces than on wide-open framing jobs.
• Why it stands out: The combo of M12 FUEL brushless performance, Tri-LED visibility, a 1/2 inch all-metal chuck, and both compact and extended-capacity batteries makes this kit more versatile than a lot of entry-level combo sets.
• Worth knowing: This is a compact 12V platform kit, so it is a smart choice for access and daily carry, not the first pick if your work is mostly heavy structural drilling all day.

Common Questions

• Is this a brushed or brushless combo kit? It is a brushless combo kit in Milwaukee’s M12 FUEL line.
• Does the drill have hammer mode? Yes. The included drill is a 1/2 inch hammer drill/driver.
• What battery platform does it use? It uses Milwaukee M12 batteries and is part of the broader M12 system.
• Does the impact driver have a work light? Yes. It uses a Tri-LED work light setup around the collet for better visibility.
