Description

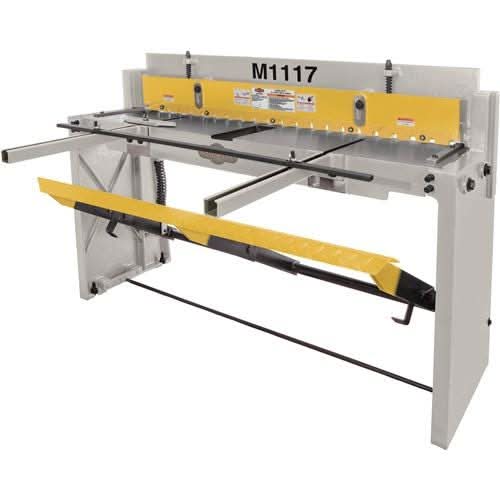

Cut your work down to size with this heavy-duty shear! The M1117 Sheet Metal Shear cuts up to 52″ wide with all the stability and precision you would expect from a machine this size. The front stop and angle guide are quickly adjusted by wing nuts on the top of the stops. The rear extension arms have micro-adjusting stops that allow you to fine tune your cut length. For those really large sheet metal jobs this shear includes table gauges and front extension arms. Additional features include a heavy cast-iron body with foot control, precision ground blade, spring activated hold down, and a safety guard.

• Maximum Width: 52″
• Maximum Thickness Mild Steel: 16 Gauge
• Front Stop Scale Range: 0 – 12-1/2″
• Rear Stop Scale Range: 0 – 33″
• Adjustable Front Stop & Micro-Adjustable Rear Stop
• Reversible Upper Blade with Two Cutting Edges
• Adjustable Bevel Gauge
• Steel Foot Pedal that Extends Full Width of Machine
• Blade Guard Doubles as Hold-Down
• Infeed and Outfeed Scales
• Adjustable Blade Bow
