Description

Key Features

Load-Rated Strength

This Simpson Strong-Tie LSTA12 Strap Tie is built for structural wood connections where uplift and tension matter. The load-rated design gives you a defined fastening schedule instead of guessing on site.

G90 Galvanized Finish

The zinc galvanized G90 coating helps resist corrosion in typical framing applications. That matters when the connector is part of a long-term structural connection, not a temporary patch.

Staggered Hole Pattern

The staggered nailing pattern is there for a reason. It helps optimize strength while reducing the chance of splitting wood members during installation.

Overview

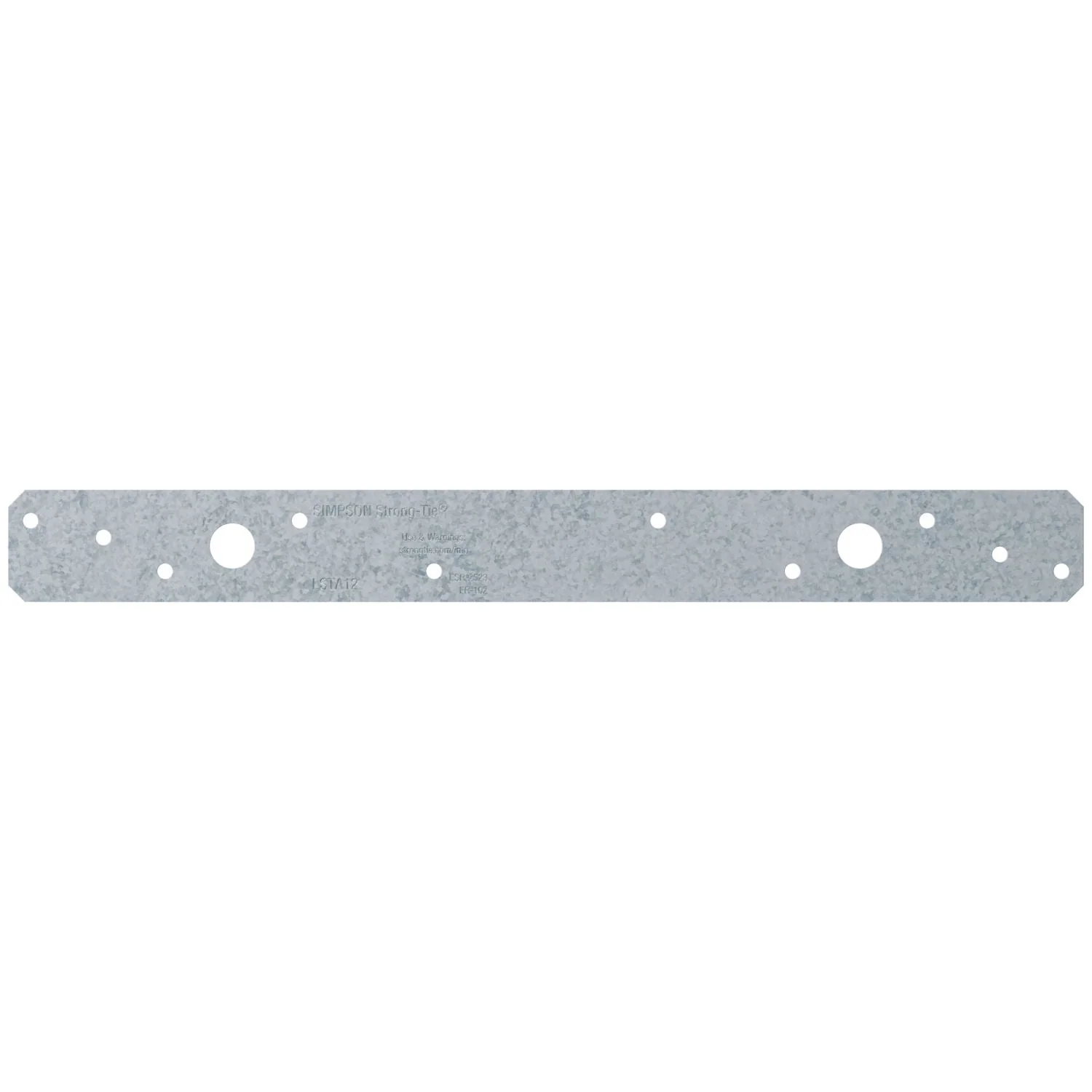

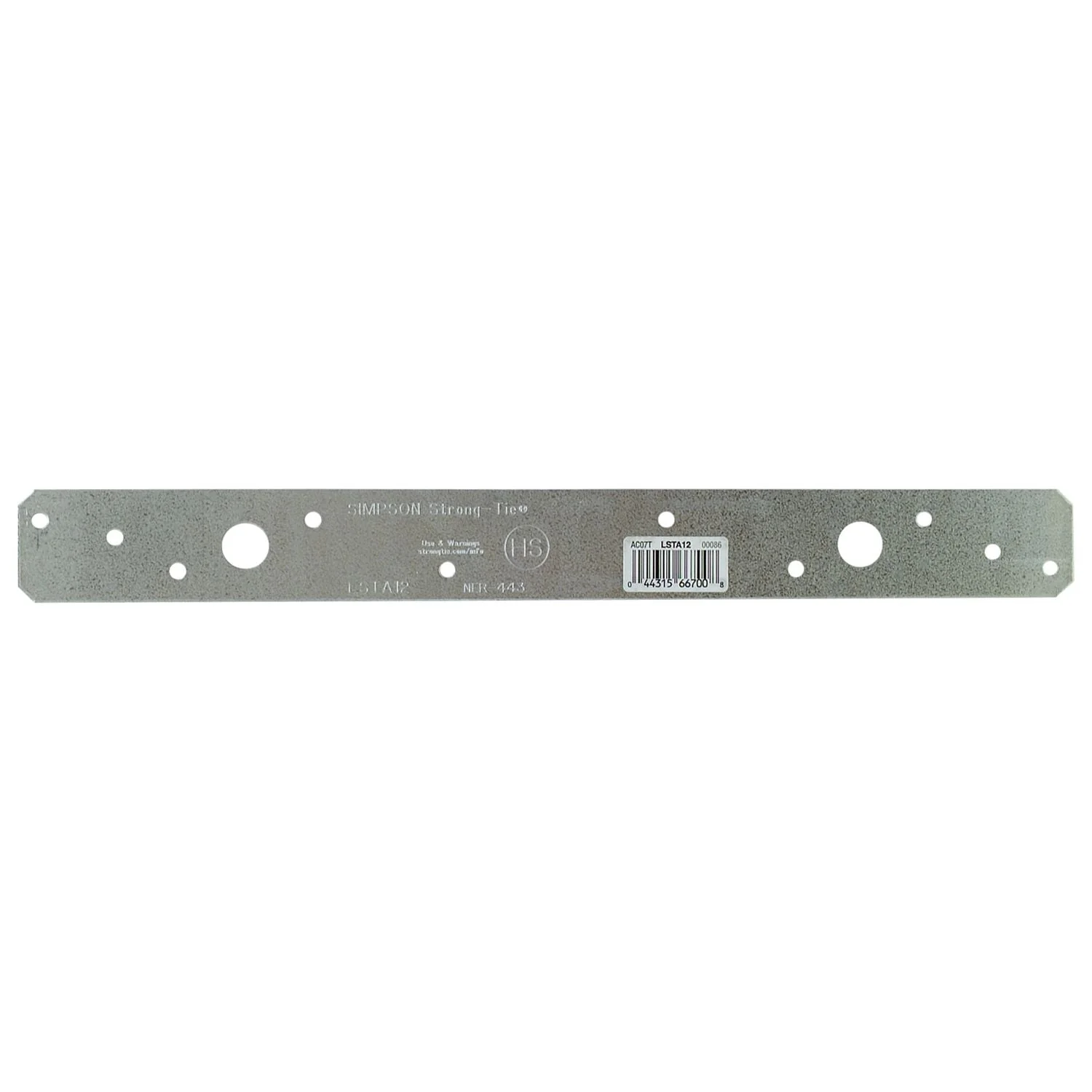

The Simpson Strong-Tie LSTA12 Strap Tie is a light-gauge straight strap connector for structural wood framing. This is a strap tie designed for uplift and tension-load wood-to-wood connections. Model Number LSTA12, this connector is made for edge use on 2x members where you need a load-rated tie that installs quickly and gives predictable performance.

What separates the LSTA12 from a generic flat strap is that it is an engineered connector, not just a piece of punched steel. Simpson Strong-Tie rates this series for structural use, and the LSTA12 uses a staggered fastener hole pattern to optimize strength. In practical terms, that means you are not just tying members together, you are using a connector designed to handle uplift and tension forces in the connection.

The 12 inch length and 1-1/4 inch width make this model a practical size for reinforcement and tie applications on standard wood framing members. For the LSTA12 specifically, the published fastening schedule calls for (10) SD9112 screws in Simpson load data, and supplementary product data also lists (10) 0.148 inch x 2-1/2 inch nails as required fasteners. The important takeaway is simple: this connector only performs to published values when the specified fasteners are used in the specified holes.

Material and finish matter on structural hardware, and this model uses 20-gauge steel with a Zinc Galvanized G90 coating. That makes it a solid fit for standard framing environments where corrosion resistance is needed beyond bare steel. It is not listed for treated lumber in the provided product data, so if you are working with pressure-treated stock, you will want to verify the right connector and fastener combination before ordering.

On the job, the design is straightforward and useful. The strap is precut, load-rated, and ready to install without field-fabricating a tie from coil stock. The staggered hole layout helps reduce splitting compared with driving a straight line of fasteners down the same grain path. That saves time and helps the connection go in cleaner, especially when you are working on edges of 2x framing members.

The Simpson Strong-Tie LSTA12 Strap Tie is a good fit for framers, remodelers, and general contractors handling wood-to-wood structural connections in high-wind or uplift-prone areas. It is especially useful when you need a simple straight strap for tying members together across a connection while staying inside an engineered fastening pattern. If you want a small structural connector that is easy to understand, easy to install correctly, and backed by published load information, this is exactly the kind of part you buy.

Engineered for Structural Tension Connections

This connector is built for real structural fastening, not general-purpose hardware duty. The hole pattern and published load data are what make it useful when uplift and tension loads are part of the connection.

• Designed for uplift applications and wood-to-wood tension connections
• Load data for LSTA12 lists a fastening schedule of 10 SD9112 screws

Cleaner Installs on 2x Members

The LSTA series is intended for edge use on 2x members, which makes it practical for common framing reinforcement jobs. The staggered fastening layout helps the connector go in without concentrating every fastener in one straight split-prone line.

• Designed for use on the edge of 2x members
• Staggered nail pattern helps minimize wood splitting

Corrosion Resistance for Standard Framing Use

The G90 galvanized finish gives this strap tie a better shot at holding up in normal framing conditions than unfinished steel. For a structural connector, that finish is not a cosmetic extra, it is part of choosing the right hardware for the environment.

• Zinc Galvanized G90 finish
• 20-gauge steel body with 1-1/4 inch width

What’s in the Box

• (1) Simpson Strong-Tie LSTA12 12 in. strap tie

Fasteners are not included. Use only the specified fasteners and fastening pattern to achieve published load values.

Key Specifications

Length	12 in.
Width	1-1/4 in.
Gauge	20 gauge
Thickness	33 mil
Finish	Zinc Galvanized, G90
Fasteners Required	(10) SD9112 screws
Material	Steel
Packaging Quantity	1

Compatibility

Wood Framing Application

Designed for wood-to-wood connections and edge use on 2x members.

Specified Fasteners

Use all specified fasteners. Simpson load data for the LSTA12 lists 10 SD9112 screws, and supplementary product data lists (10) 0.148 in. x 2-1/2 in. nails.

Treated Lumber Note

Provided product data indicates this model is not for treated lumber.

Built For

ConstructionCarpentryGeneral ContractingRemodelingWood FramingHigh-Wind ConstructionUplift ConnectionsWood-to-Wood Reinforcement

Pro Tip

If you are buying the LSTA12 to match published load values, order the correct fasteners at the same time. With structural connectors like this, the strap is only half the system, and swapping in whatever nails are on the truck can cost you the rating you thought you were getting.

Tool Nut’s Take

Tool Nut’s Take

Simpson Strong-Tie LSTA12 Strap Tie Keeps Structural Ties Simple

If you need a straightforward strap for wood framing tension and uplift work, this one does the job without any mystery.

• Who it’s for: Framers, remodelers, and contractors tying 2x members together in structural wood applications.
• Why it stands out: It is load-rated, sized right for common framing work, and the staggered hole pattern helps you get strength without beating up the wood.
• Worth knowing: This is sold as a single connector and fasteners are not included, so make sure you match the specified hardware before you head to the site.

Common Questions

• What is the LSTA12 used for? It is used for uplift and tension-load wood-to-wood connections, including edge use on 2x members.
• What finish does this strap tie have? The LSTA12 uses a Zinc Galvanized G90 finish.
• How long is the Simpson Strong-Tie LSTA12 Strap Tie? It is 12 inches long and 1-1/4 inches wide.
• Can this be used with treated lumber? The provided product data says no.
