Description

Key Features

Built for Deck Framing

The Simpson Strong-Tie DJT14Z deck joist tie connects a 2x deck member to the side of a 4x or larger post. It gives you a cleaner, stronger post-to-joist or post-to-beam connection without the hassle of through-bolting in every case.

14-Gauge Steel Strength

Made from 14-gauge steel, this tie is built for structural deck work where connection strength matters. That added strength helps support wood-to-wood framing at critical deck joints.

ZMAX for Exterior Use

The ZMAX coating adds corrosion resistance for exterior jobs and treated lumber applications. That makes it a better fit for deck builds exposed to weather than basic unfinished steel hardware.

Overview

The Simpson Strong-Tie DJT14Z deck joist tie is a deck framing connector designed to attach a 2x deck joist or beam to the side of a 4x or larger support post. This is a deck tie designed for wood-to-wood deck framing connections. Model Number: DJT14Z. If you are building or reinforcing a deck and need a solid side-mounted connection at the post, this hardware is made for that exact job.

What matters here is the application. The DJT14Z is used where a 2x member, typically a beam or joist, meets the side of a post and needs more holding power and better load transfer than a simple face-fastened screw connection. Simpson lists this connector for decks and joist connections to a beam, and the allowable load data gives you real structural context instead of vague claims. That is the kind of information that matters when you are trying to build to code or avoid a weak spot in the frame.

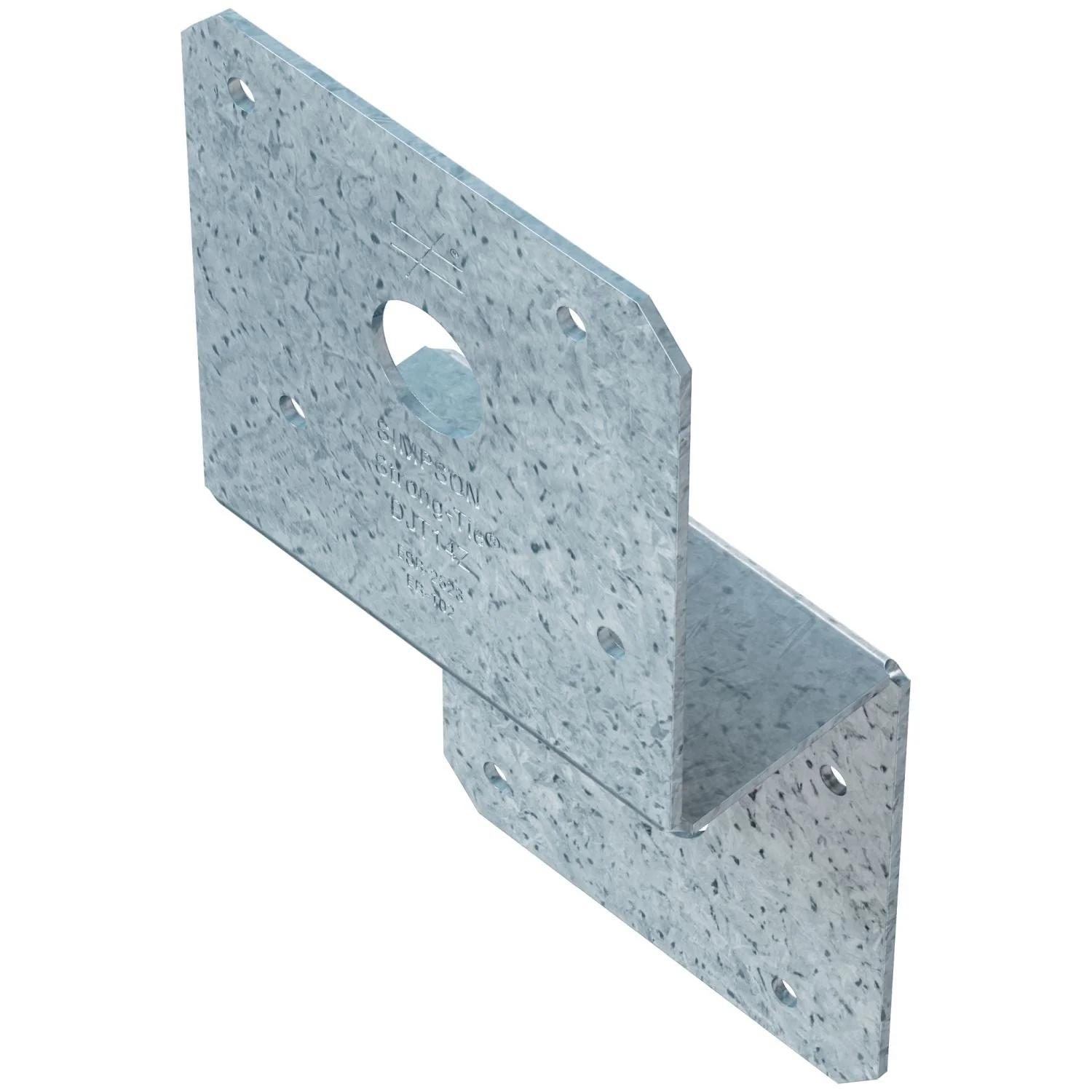

The body is formed from 14-gauge steel, which is a practical balance of strength and installability for residential deck framing. It is not just a flat strap bent into shape. The formed geometry wraps the joint so the connector can tie the horizontal member back into the vertical post with a more controlled, purpose-built connection. That is why a dedicated deck tie like this is typically a better choice than improvising with loose hardware when the joint actually matters.

The ZMAX finish is another big reason contractors and serious DIY deck builders reach for this part. Exterior deck framing sees moisture, temperature swings, and in many cases pressure-treated lumber. Simpson specifies the ZMAX coating for extra corrosion resistance in exterior and treated-wood applications, which is exactly where cheap uncoated connectors start to become a problem. If the deck is going outside, the finish is not a minor detail. It is part of the service life of the connection.

Installation flexibility is also useful on a real job. The DJT14Z can be installed with specified hot-dip galvanized fasteners, and supplementary data notes installation with 16d common nails, #10 x 2-1/2 in. Strong-Drive SD screws, or 5/8 in. machine bolts. Simpson also recommends installing on the post first. That is the kind of small note that saves time during layout and assembly, especially when you are working alone or trying to keep a deck frame straight while fastening.

Size compatibility is clear and jobsite-friendly. This connector is intended for a minimum nominal 2×4 cross member and a minimum nominal 4×4 post, and it is designed around a 2x member connection. The published dimensions, including roughly 3 in. width and 6.322 in. overall length, give you a better idea of the footprint if you are checking fit around trim, decking overhangs, or post layouts.

For deck builders, remodelers, general contractors, and homeowners fixing or upgrading older framing, this is one of those small pieces of hardware that does a very specific job well. If your project calls for tying a beam or joist into the side of a support post, the Simpson Strong-Tie DJT14Z deck joist tie is the right kind of connector to use instead of trying to make a generic bracket do structural work it was not designed for.

Reinforce Post-to-Member Connections

This is the kind of connector you use when the joint actually matters. The DJT14Z is made to tie a 2x member into the side of a 4x or larger post in deck framing, giving you a purpose-built connection where a loose mix of screws or improvised brackets would be a step backward.

• Designed to attach 2x deck joists and beams to the side of 4x or larger support posts
• Wood-to-wood deck framing application with published allowable load data

Made for Real Deck Hardware Conditions

Exterior connectors live in a tough environment, especially around treated lumber. The ZMAX finish is here for a reason. It helps this deck tie hold up better in outdoor framing where basic steel hardware is a bad bet long term.

• ZMAX coating for exterior and treated-wood applications
• ACQ approved for use with modern pressure-treated lumber environments

Simple Layout, Strong Hardware

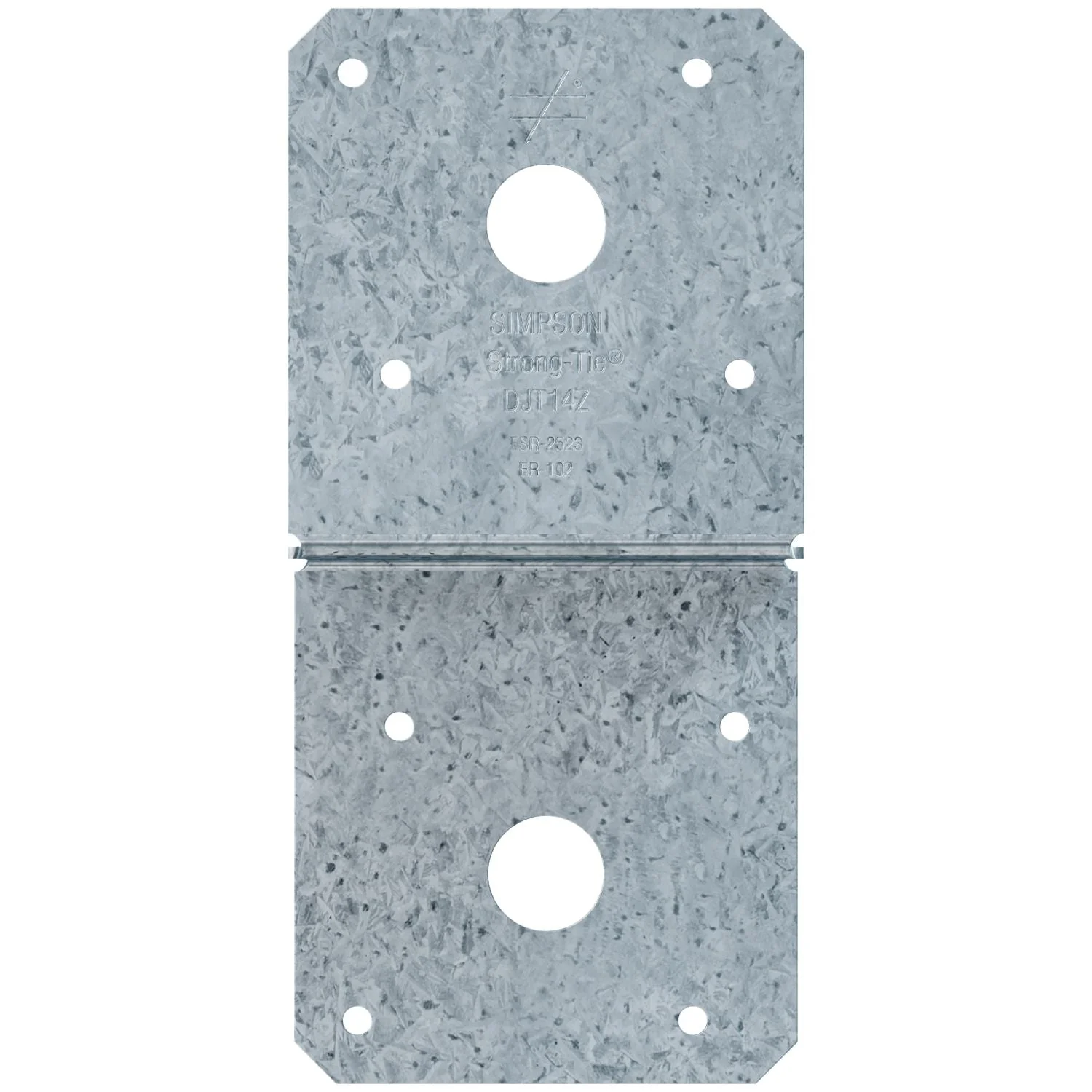

The formed shape gives you a dedicated connection point with pre-made holes for approved fasteners. That means faster layout and more consistent installs than trying to piece together a structural connection from generic hardware.

• Made from 14-gauge steel for structural deck framing use
• Can be installed with nails, specified screws, or machine bolts depending on the application details

Key Specifications

Tool Type	Deck tie
Material	Steel
Gauge	14 ga.
Finish	ZMAX galvanized, G185
Application	Deck joist connections to beam; wood to wood
Minimum Cross Member	Nominal 2×4
Minimum Post Size	Nominal 4×4
Actual Size	6.322 in. L x 3 in. W x 1.572 in. D

Compatibility

Framing Members

Designed for 2x deck members, typically a beam or joist, attached to the side of a 4x or larger wood support post.

Fastener Options

Supplementary product data lists installation with 16d common nails, #10 x 2-1/2 in. Strong-Drive SD screws, or 5/8 in. machine bolts. Simpson also specifies use of HDG fasteners.

Treated Lumber Use

ACQ approved and finished with ZMAX coating for exterior framing and treated-wood applications.

Built For

Deck Building Construction General Contracting Remodeling Exterior Wood Framing Deck Repair

Pro Tip

Install the Simpson Strong-Tie DJT14Z on the post first, then bring your 2x member into position. It makes alignment easier and helps keep the connection square while you drive the specified fasteners.

Warranty & Support

Limited lifetime warranty.

Tool Nut’s Take

Tool Nut’s Take

Simpson Strong-Tie DJT14Z Deck Joist Tie Keeps a Critical Deck Joint Simple

If you need to tie a 2x deck member into the side of a post, this is the right hardware instead of improvising with generic brackets and hoping for the best.

• Who it’s for: Deck builders, remodelers, inspectors fixing older framing issues, and serious DIY homeowners doing deck work the right way.
• Why it stands out: It is a purpose-built 14-gauge connector with exterior-rated ZMAX protection and clear minimum member sizing, so you know exactly what job it is meant to do.
• Worth knowing: Fasteners are not included, so make sure you match the connector with the specified galvanized nails, screws, or bolts for your build.

Common Questions

• What does the DJT14Z connect? It connects a 2x member, typically a deck joist or beam, to the side of a 4x or larger wood support post.
• Is this connector suitable for exterior deck work? Yes. The ZMAX finish is intended for exterior and treated-wood applications, and the connector is listed as ACQ approved in supplementary product data.
• What size framing does it require? Simpson lists a minimum nominal 2×4 cross member and a minimum nominal 4×4 post.
• Can it be installed with bolts instead of nails? Yes. Supplementary product information states it can be installed with nails or bolts, and also lists compatible screw options.
