Description

• Cost-effective one-piece design compared to welded hangers

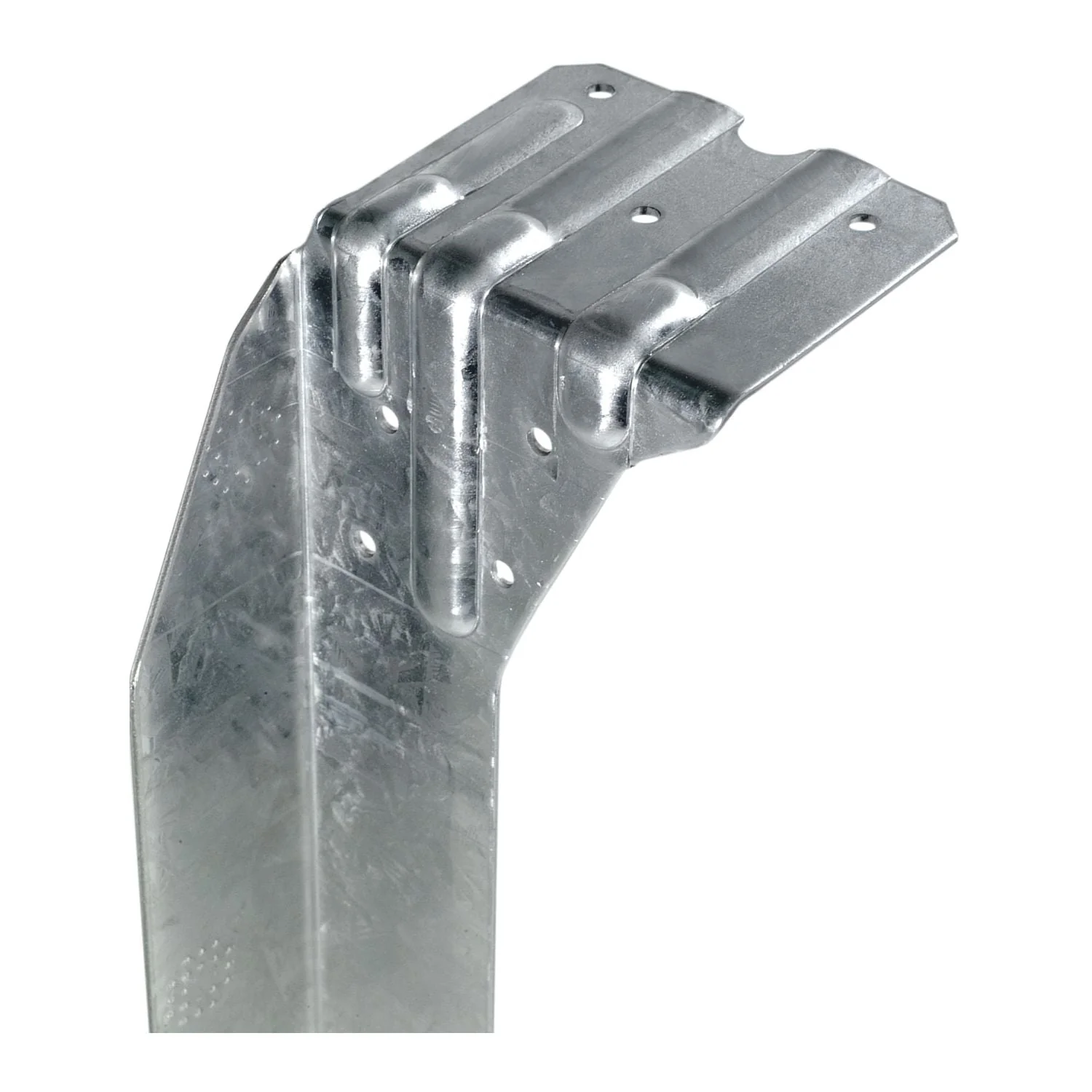

• A full-height joist flange that captures the top chord of the joist to prevent rotation and eliminate the need for web stiffeners
• Available for special order to accommodate sloped and/or skewed members
• Nominal joist size: 3×16
• Made from 12-gauge steel
• Galvanized (G90) for corrosion resistance

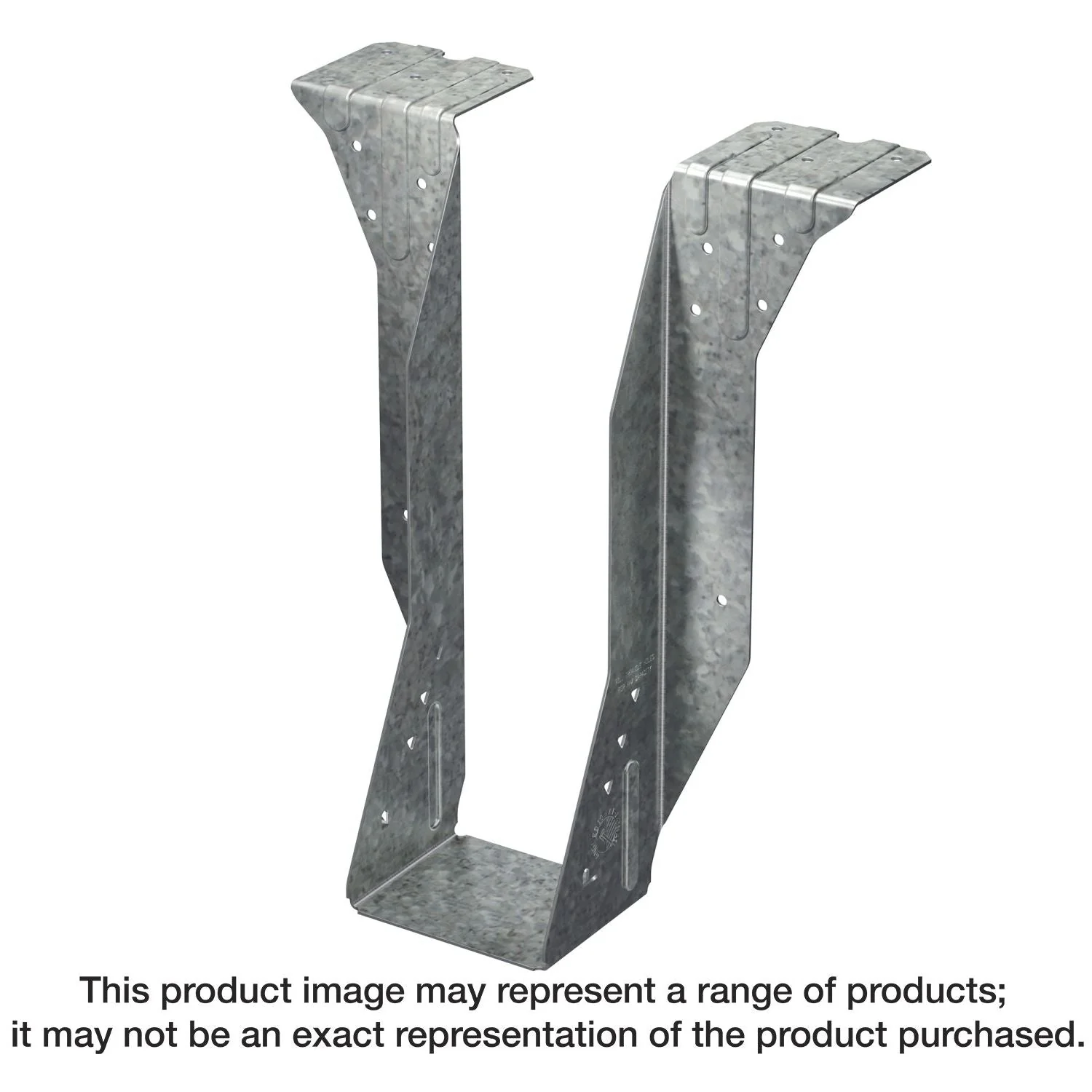

The Simpson Strong-Tie BA hanger series is designed for engineered wood and solid sawn lumber applications. This top-flange hanger can carry medium loads with solid sawn lumber and higher loads with engineered wood products. The BA features minimum nailing with positive-angle nailing (PAN) to target moderate load conditions and maximum nailing to support higher loads.

• Cost-effective one-piece design compared to welded hangers
• A full-height joist flange that captures the top chord of the joist to prevent rotation and eliminate the need for web stiffeners
• Available for special order to accommodate sloped and/or skewed members
• Nominal joist size: 3×16
• Made from 12-gauge steel
• Galvanized (G90) for corrosion resistance

Install With: Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist
