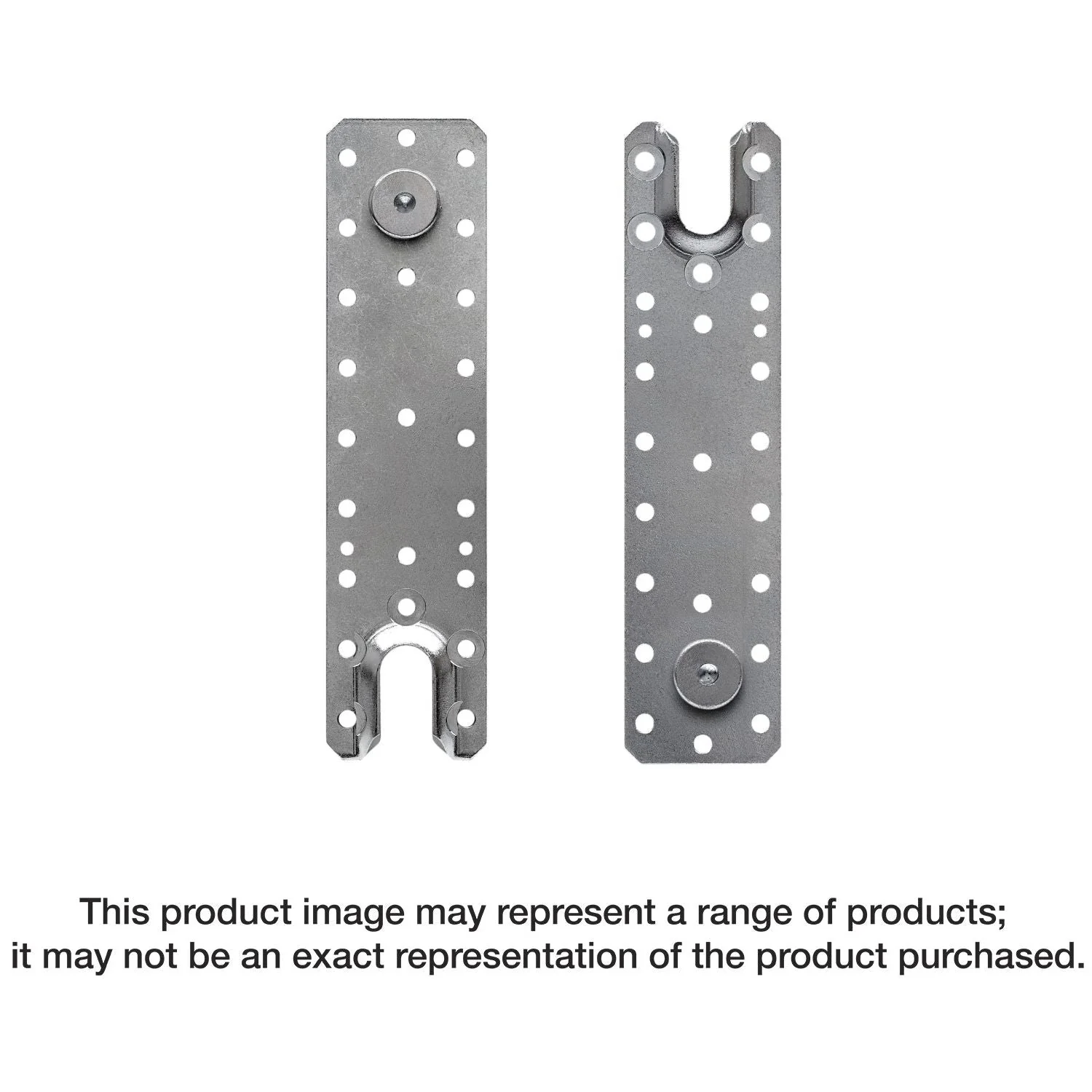

Simpson Strong-Tie CBH2.37X7.63H-KT CBH 2-3/8-in. x 7-5/8-in. HDG Joist to Beam or Column Concealed Hanger - Image 1

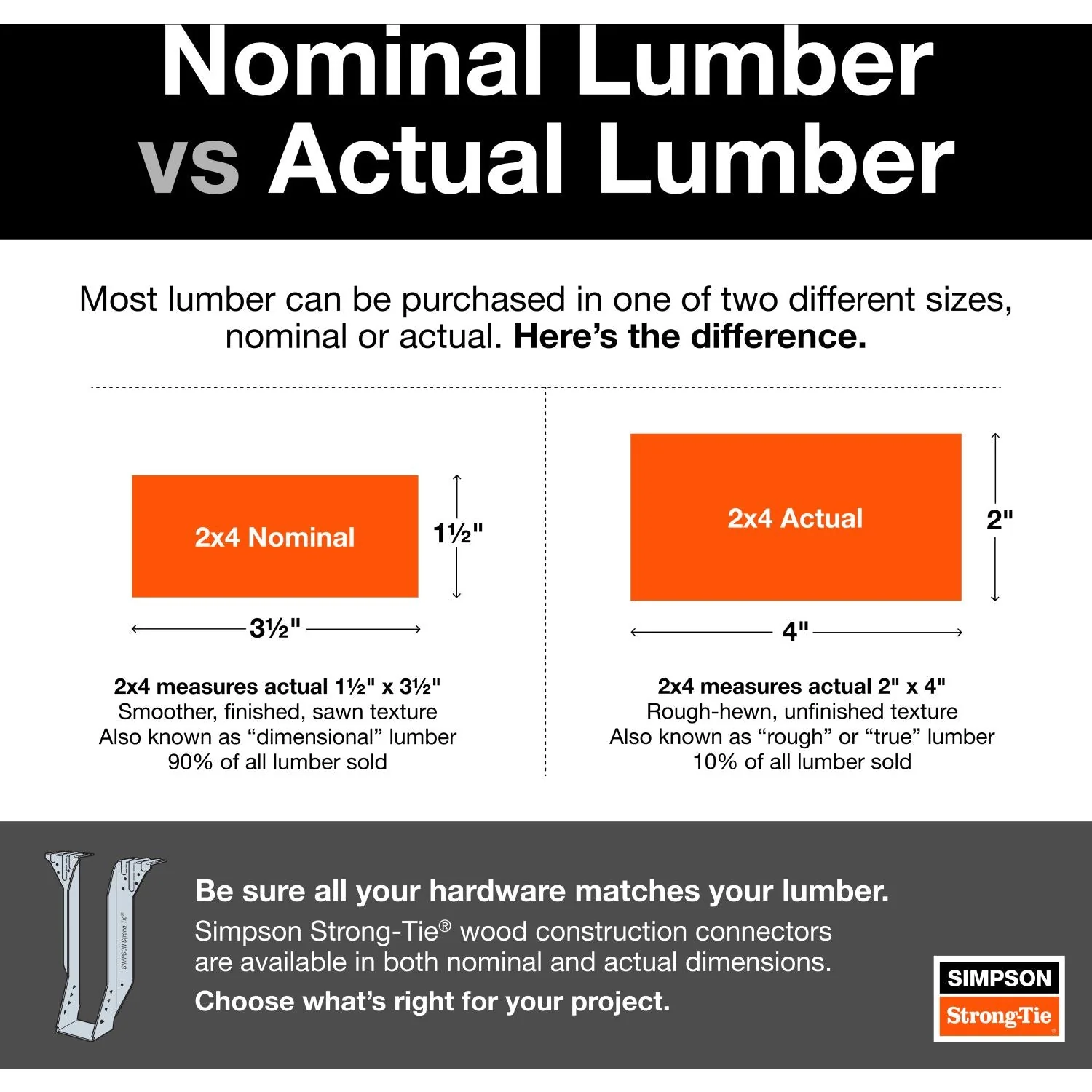

Simpson Strong-Tie CBH2.37X7.63H-KT CBH 2-3/8-in. x 7-5/8-in. HDG Joist to Beam or Column Concealed Hanger - Image 2

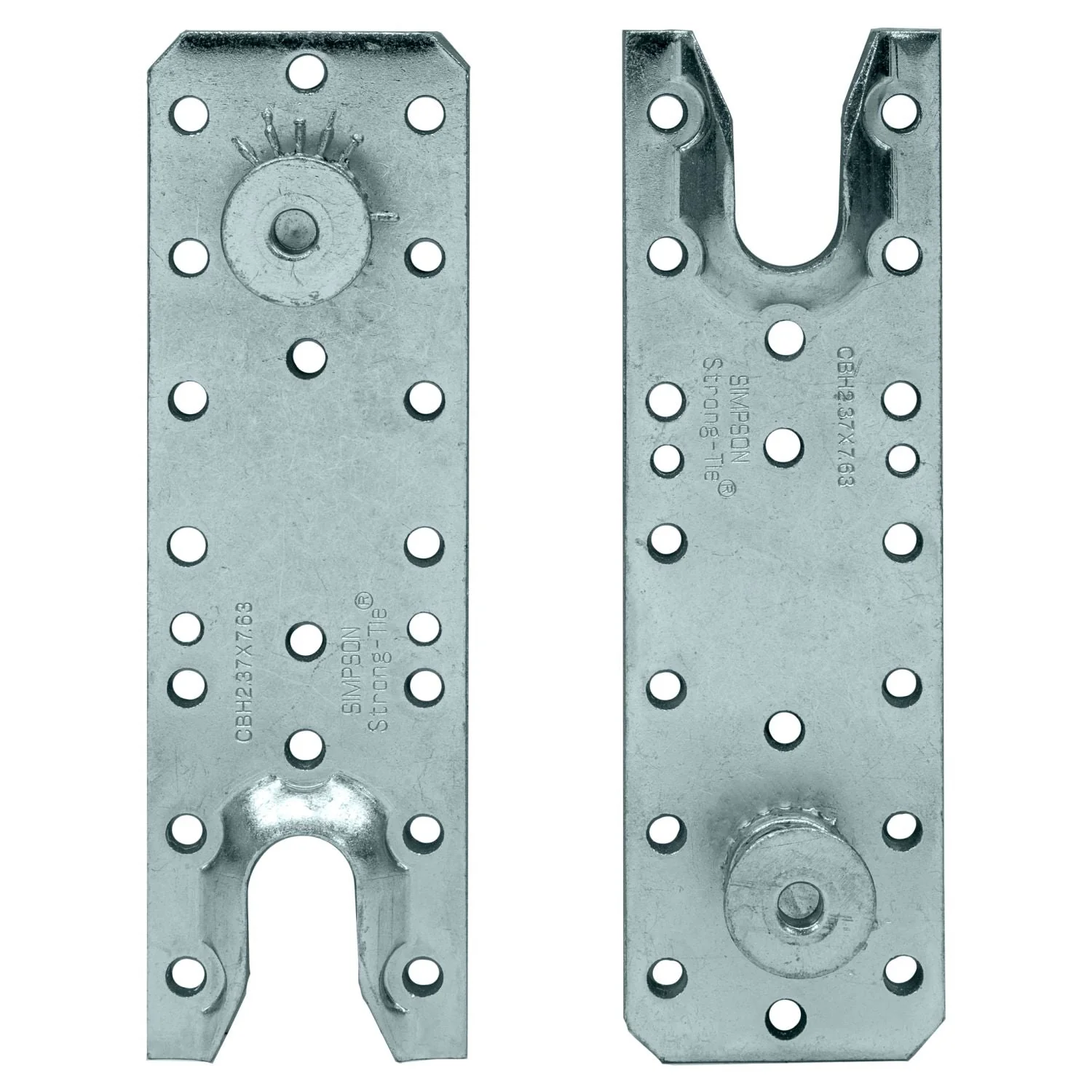

Simpson Strong-Tie CBH2.37X7.63H-KT CBH 2-3/8-in. x 7-5/8-in. HDG Joist to Beam or Column Concealed Hanger - Image 3
Product on sale
Simpson Strong-Tie CBH2.37X7.63H-KT CBH 2-3/8-in. x 7-5/8-in. HDG Joist to Beam or Column Concealed Hanger - Image 1Simpson Strong-Tie CBH2.37X7.63H-KT CBH 2-3/8-in. x 7-5/8-in. HDG Joist to Beam or Column Concealed Hanger - Image 2Simpson Strong-Tie CBH2.37X7.63H-KT CBH 2-3/8-in. x 7-5/8-in. HDG Joist to Beam or Column Concealed Hanger - Image 3

Simpson Strong-Tie CBH2.37X7.63H-KT CBH 2-3/8-in. x 7-5/8-in. HDG Joist to Beam or Column Concealed Hanger

Original price was: $111.99.Current price is: $22.40.

Concealed for architectural aesthetics and fire-rated performance Multiple router options to suit jobsite needs The +/- 1/32-in. beam length tolerance on each end enables easier installation 1-hr and 2-hr fire resistance ratings per ASTM E119 Inter-story drift performance tested to over 2% Code-listed per ICC-ESR-2552 2-3/8 in. width x 7-5/8 in. height 3-gauge steel; hot-dip…

Checkout

Description

  • Concealed for architectural aesthetics and fire-rated performance
  • Multiple router options to suit jobsite needs
  • The +/- 1/32-in. beam length tolerance on each end enables easier installation
  • 1-hr and 2-hr fire resistance ratings per ASTM E119
  • Inter-story drift performance tested to over 2%
  • Code-listed per ICC-ESR-2552
  • 2-3/8 in. width x 7-5/8 in. height
  • 3-gauge steel; hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
  • Two backplates make up one connection

Computer modeling and CNC manufacturing enables glulam to be delivered to the jobsite in precise lengths and with preinstalled concealed hangers. The Simpson Strong-Tie CBH™ concealed beam hanger is specifically designed for such applications, and is installed with readily available Strong-Drive SDS Heavy-Duty Connector screws. The CBH has been tested for inter-story drift and has achieved 1-hr and 2-hr fire resistance ratings according to ASTM E119.

  • Concealed for architectural aesthetics and fire-rated performance
  • Multiple router options to suit jobsite needs
  • The +/- 1/32-in. beam length tolerance on each end enables easier installation
  • 1-hr and 2-hr fire resistance ratings per ASTM E119
  • Inter-story drift performance tested to over 2%
  • Code-listed per ICC-ESR-2552
  • 2-3/8 in. width x 7-5/8 in. height
  • 3-gauge steel; hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
  • Two backplates make up one connection

Install With: (18) Strong-Drive SDS25300 screws and (18) Strong-Drive SDS25600 screws for joist-to-beam application OR (36) Strong-Drive SDS25600 screws for joist-to-column application
