Description

• 2-in. elevated base accommodates moisture barrier and surface material while still providing 1-in. standoff
• Can be used with hollow columns or solid sawn posts
• Flexible anchorage options – 4 corner holes (screw down to wood) or 1 center hole (anchor to concrete)
• Nominal column size: 6×6
• Gauge: Cup 12; base and tube 7
• Simpson Strong-Tie gray paint finish

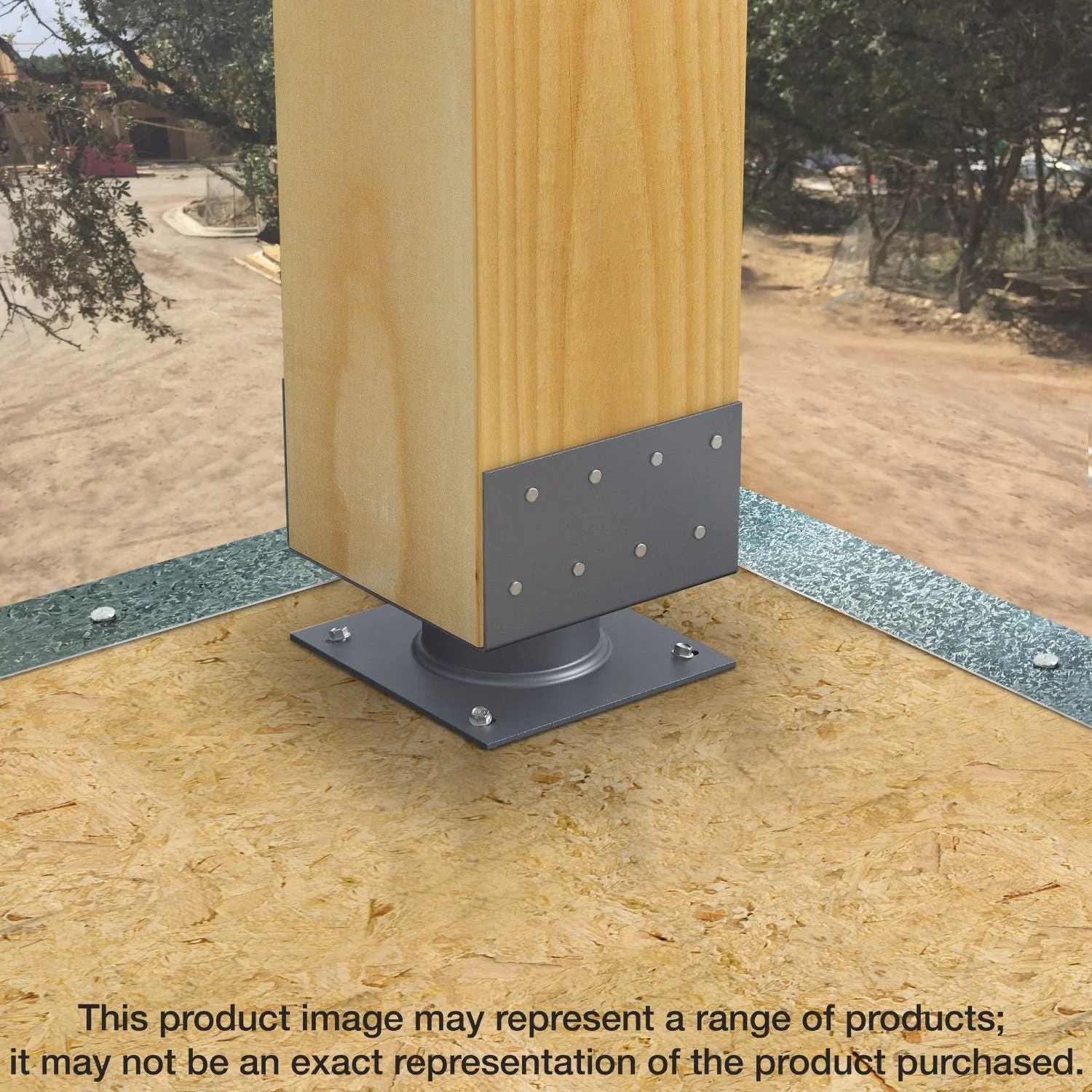

The Simpson Strong-Tie ECB elevated column base for hollow columns or solid-sawn posts makes it easy to install waterproofing material on stacked balconies in multi-family buildings. It’s the only post base available off the shelf that features a 2-in. standoff, providing enough room for moisture barrier material and a thin finish surface while still allowing for the 1-in. code-required standoff to prevent post decay. There are two model sizes available, suitable for either 6×6 or 8×8 posts.

• 2-in. elevated base accommodates moisture barrier and surface material while still providing 1-in. standoff
• Can be used with hollow columns or solid sawn posts
• Flexible anchorage options – 4 corner holes (screw down to wood) or 1 center hole (anchor to concrete)
• Nominal column size: 6×6
• Gauge: Cup 12; base and tube 7
• Simpson Strong-Tie gray paint finish

Install With: Install with (1) 1/2-in. diameter Titen HD, Stainless-Steel Titen HD or Titen Turbo™ anchor into concrete OR (4) 1/4-in. diameter Strong-Drive SDS Heavy-Duty Connector screws into wood AND (16) 0.148-in. x 1.5-in. nails into the column
