Description

Key Features

Fast Layout Fit

Speed prongs temporarily hold the hanger in place so you can position the joist and start fastening without fighting the connector. That saves time when you are laying out multiple bays.

Galvanized 20-Gauge Steel

The Simpson Strong-Tie LU28 face-mount joist hanger is made from 20-gauge steel with a G90 galvanized finish. You get the strength needed for wood framing plus corrosion resistance for typical exterior and interior framing work.

Rated for 2×8 and 2×10

Built for nominal 2×8 and 2×10 joists, this face-mount hanger gives you a tested, code-compliant connection for joist-to-header installation in wood-framed construction.

Overview

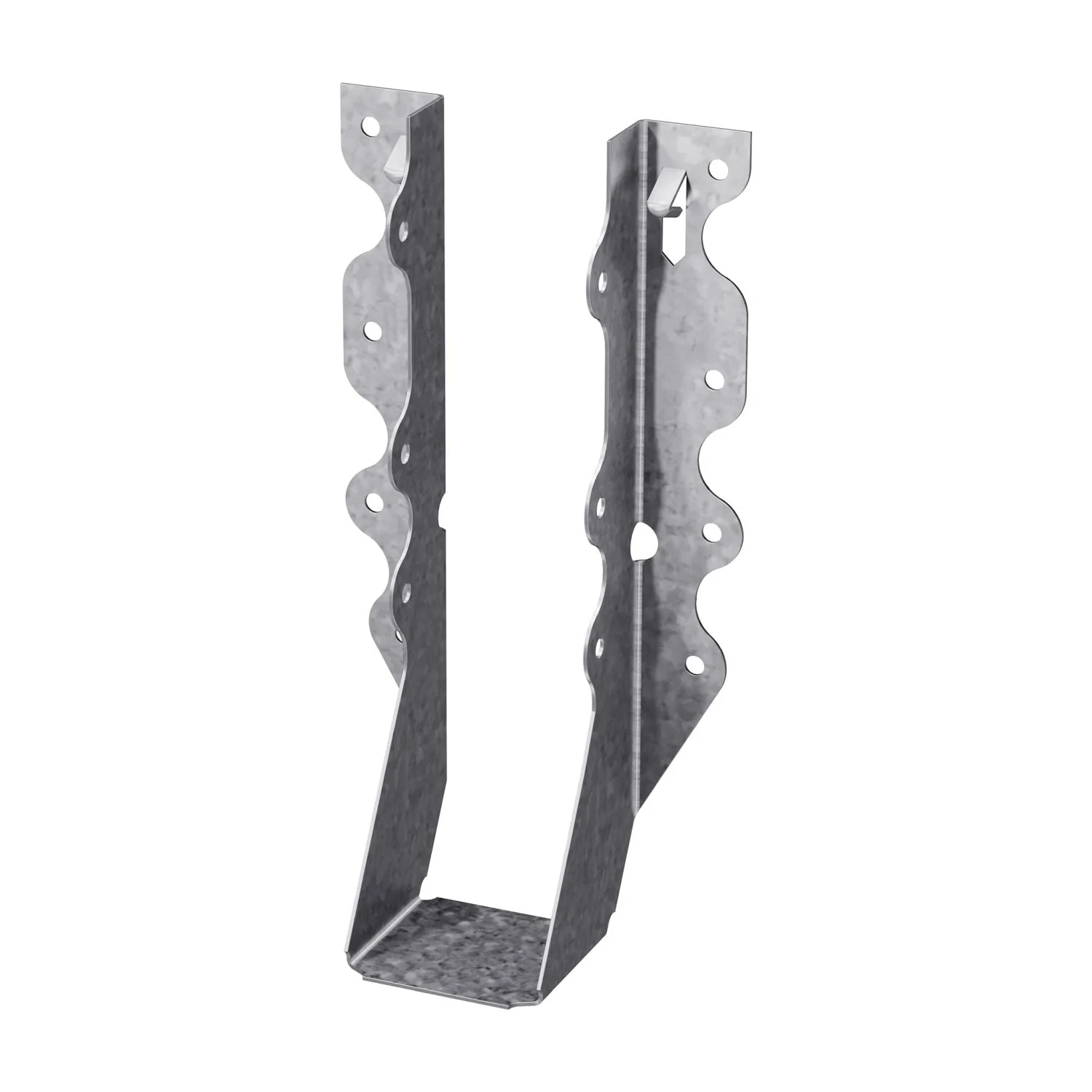

The Simpson Strong-Tie LU28 face-mount joist hanger is a light face-mount connector for joist-to-header installation in wood-framed construction. This is a joist hanger designed for fastening nominal 2×8 and 2×10 wood members to a wood header. Model Number: LU28. If you are framing decks, floor systems, or other wood structures where a clean, rated connection matters, this hanger is built to do that job without a lot of extra fuss.

What makes the LU28 practical on the job is that it is not just a bent piece of steel. Simpson Strong-Tie built the LU series with tested allowable loads and multiple approved fastener options, so you can match the connection to the job requirements. For the LU28, the published load table shows installation with Strong-Drive SD connector screws or the specified nails, which gives builders flexibility depending on workflow, tool setup, and inspection requirements.

The design is straightforward in a good way. The 1-9/16 inch seat width fits the intended joist size, and the 6-3/8 inch height gives enough side engagement for the connection without stepping up to a heavier hanger than the job needs. Precision forming helps the hanger sit where it should, and the built-in speed prongs temporarily position the connector before full fastening. On repetitive framing, that small detail makes a real difference because it keeps layout moving instead of forcing you to hold the hanger with one hand and fasten with the other.

Material and finish matter with hardware like this. The LU28 uses 20-gauge steel with a zinc galvanized G90 coating. That gives the connector the rated structural form plus added corrosion resistance for common wood construction applications. It is intended for wood-to-wood connections and is listed for engineered wood applications as well, so it fits a wide range of standard residential framing conditions.

Installation details are where a lot of hangers either earn their keep or create headaches. Simpson notes that the LU series is tested and code compliant when installed with the specified fasteners. For the LU28, published guidance calls for either approved nails or Simpson Strong-Drive SD #9 x 1-1/2 inch connector screws. The key point is simple: use the full fastener schedule if you want the published allowable loads. That is what separates a real structural connection from something that only looks finished.

This hanger is best suited for carpenters, deck builders, remodelers, and general contractors working on wood framing where 2×8 or 2×10 joists need a face-mount connection. It also makes sense for serious DIY users building to code and wanting the same hardware pros use. If your job calls for a clean, economical hanger with tested performance and easier positioning during install, the LU28 is a solid pick.

See the Connection Before You Fasten It

This installed view shows why this style of joist hanger is so common in deck and framing work. It gives the joist a defined seat and a face-mounted connection point that is easy to inspect after installation.

• Designed for joist-to-header wood framing connections
• Speed prongs help hold position before the full fastener schedule is installed

Key Specifications

Type	Face-mount joist hanger
Joist Size	2×8, 2×10
Material	Steel
Gauge	20 ga.
Seat Width	1 9/16 in.
Height	6 3/8 in.
Base Width	1 1/2 in.
Finish	Zinc galvanized, G90

Compatibility

Materials Connected

Designed for wood-to-wood connections in wood-framed construction.

Member Size

Fits nominal 2×8 and 2×10 joists.

Fastener Options

Install with the specified nails or with Simpson Strong-Drive SD #9 x 1-1/2 in. connector screws where approved.

Application

Listed for engineered wood applications and general joist-to-header framing.

Built For

Deck Framing Floor Framing Wood Framing Carpentry General Contracting Remodeling Engineered Wood Code-Compliant Connections

Pro Tip

Use the speed prongs to hold the LU28 in layout position, then complete the full specified fastener schedule. The prongs help with placement, but the published load values depend on using all required fasteners.

Warranty & Support

Limited lifetime warranty.

Tool Nut’s Take

Tool Nut’s Take

Simpson Strong-Tie LU28 face-mount joist hanger gets the job done without overbuilding it

If you need a clean, rated hanger for 2×8 or 2×10 framing, this is the kind of connector that keeps the job moving and keeps inspectors happy.

• Who it’s for: Carpenters, deck builders, remodelers, and serious DIY users framing with nominal 2×8 or 2×10 members.
• Why it stands out: You get tested load data, G90 galvanized steel, and speed prongs that make placement easier when you are repeating the same connection across a job.
• Worth knowing: This is a light face-mount hanger, so the real story is proper application and proper fasteners. Match the hanger to the member size and install it exactly as specified if you want the rated performance.

Common Questions

• What size members does the LU28 fit? The LU28 is sized for nominal 2×8 and 2×10 joists.
• What type of connection is this? It is a face-mount joist hanger for joist-to-header installation in wood-framed construction.
• Can it be installed with screws? Yes. Simpson lists Strong-Drive SD #9 x 1-1/2 inch connector screws as an approved fastener option for this hanger.
• Is it code compliant? Simpson states the LU-series hangers are tested, load rated, and code compliant when installed with the specified fasteners.
