Description

Key Features

Built for Roof Framing

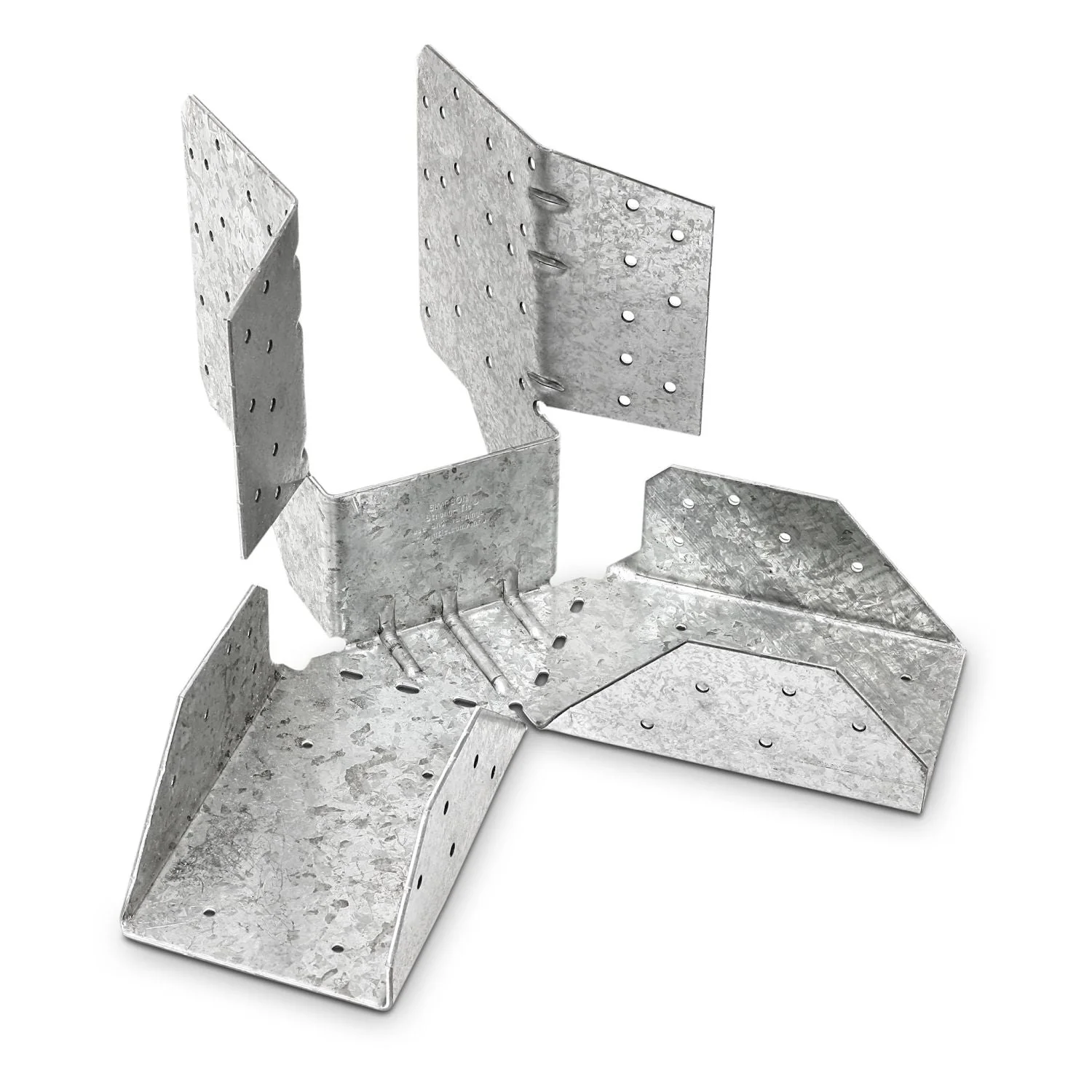

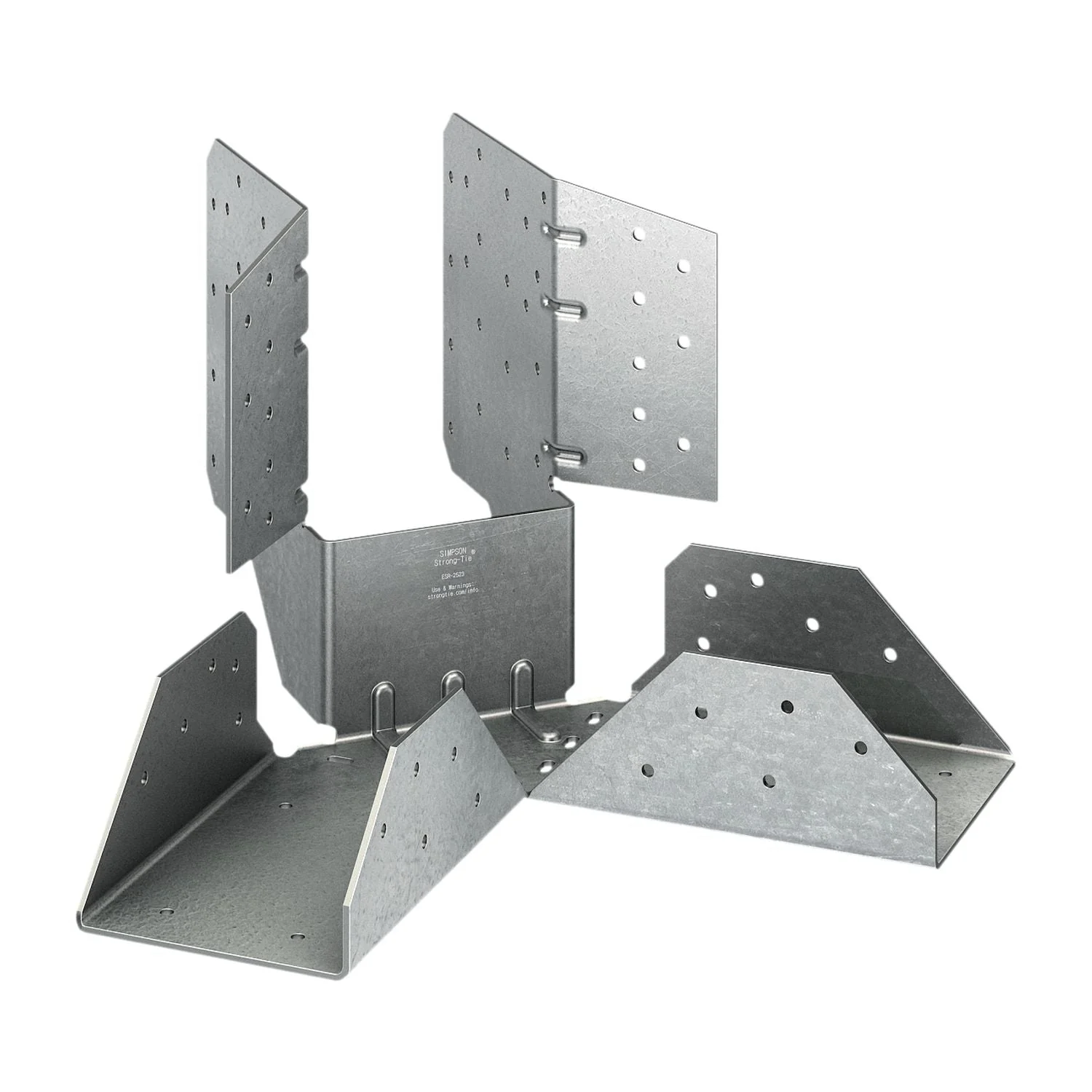

The Simpson Strong-Tie HHRC44 Hip-Ridge Face-Mount Connector is made to tie a hip beam into the end of a ridge beam without field-fabricating a connection. That gives you a cleaner, more repeatable roof framing detail with known load capacity.

12 Gauge Steel

Heavy 12 gauge construction matters here because this connector is handling a structural joint, not trim work. The thicker steel helps it hold shape during install and support the intended roof framing loads.

Screws Included

Simpson specifies Strong-Drive SD Connector screws with this connector, and the included fasteners save a step when you are ordering hardware for the job. That helps keep the install consistent with the manufacturer-approved fastening pattern.

Overview

Simpson Strong-Tie HHRC44 Hip-Ridge Face-Mount Connector – Galvanized is a structural roof framing connector for tying a hip beam to the end of a ridge beam. This is a hip-ridge face-mount connector designed for secure roof framing connections between hip rafters and ridge beams. Model Number: HHRC44. It is sized for solid sawn lumber with a 4x ridge and 4x hip, and it also supports structural composite lumber with a 3-1/2 inch ridge and 3-1/2 inch hip.

What makes this part useful is consistency. Instead of building this connection in the field and hoping every crew member handles it the same way, the HHRC44 gives you a defined connector with a standard load capacity. Simpson calls out that it can be placed higher or lower on the ridge beam so the hips are flush at the top, which is a practical detail when you are working through roof layout and trying to keep framing aligned.

The connector is made from 12 gauge steel with a zinc galvanized G90 finish. In plain jobsite terms, that means you are getting a heavy structural connector with corrosion resistance intended for general atmospheric exposure in interior and dry environments. The steel thickness matters because this joint carries real roof framing loads, and the galvanized finish helps protect the connector in the kinds of conditions typical for standard residential framing work.

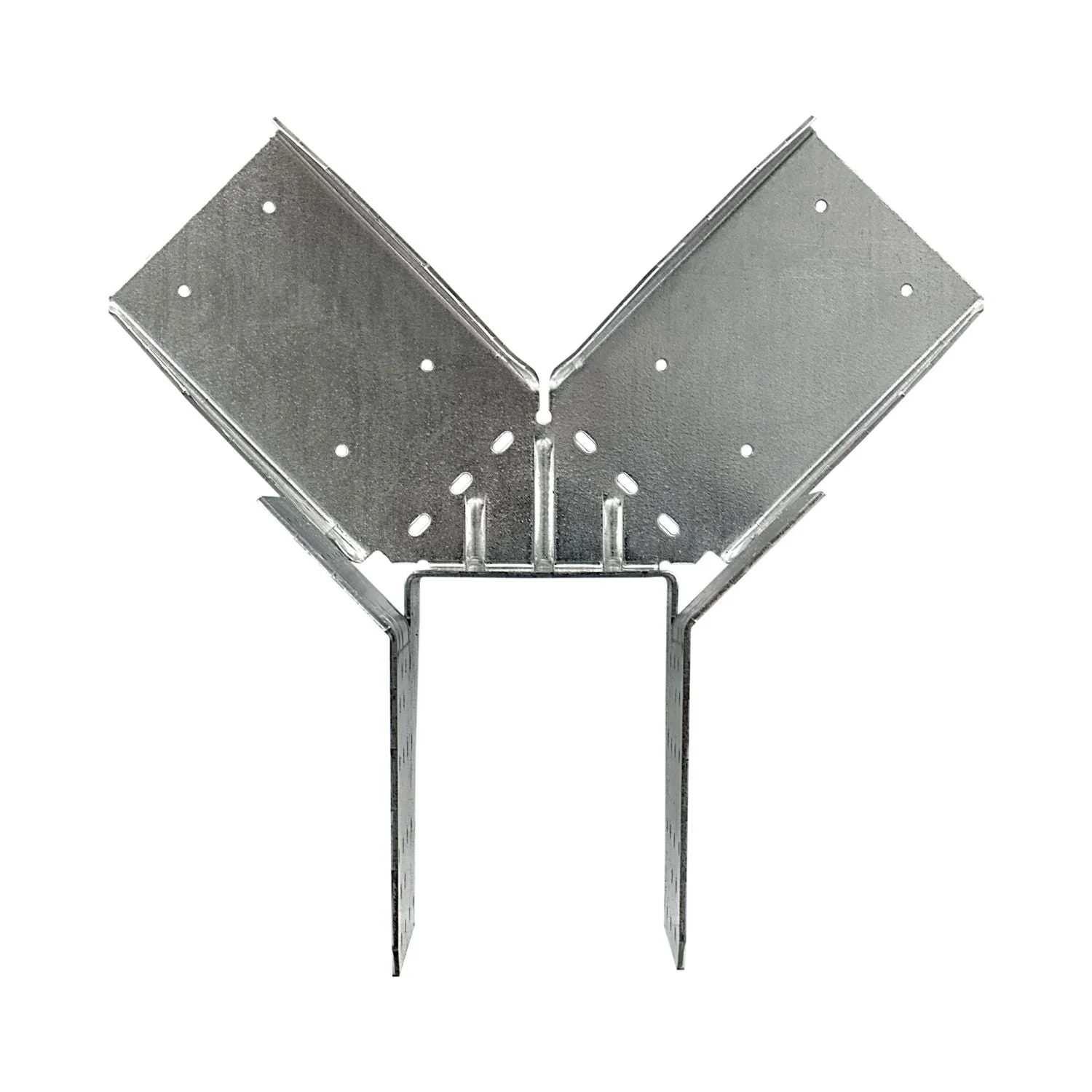

Seat dimensions are a big part of fitment on a connector like this. The HHRC44 uses a 3-5/8 inch ridge seat width and a 3-5/8 inch hip seat width. That is why it matches the listed 4x solid sawn members and 3-1/2 inch structural composite lumber members. If you are matching connector size to framing stock, these dimensions are what keep you out of trouble before the order is placed.

Installation is set up around Simpson Strong-Drive SD Connector screws, and Simpson specifically notes that the specified fasteners are included. That matters because a connector is only as good as the fastening schedule used with it. Pre-punched holes and a purpose-built fastening pattern help the connector install in a repeatable way, which is exactly what you want in a structural connection where guesswork is a bad idea.

This Simpson Strong-Tie hip-ridge connector is best suited for roof framing, timber-style framing details, residential construction, and other structural wood connections where the hip-to-ridge joint needs a clean, engineered solution. If you are a framing contractor, builder, or serious remodeler working with solid sawn lumber or structural composite lumber, this is the kind of hardware that saves time, reduces field improvisation, and gives you a connection backed by published load data.

See the Connection in Place

This is the kind of connector that makes more sense once you see it on the framing. It creates a defined hip-to-ridge connection that keeps the joint cleaner and more repeatable than field-built alternatives.

• Designed to attach a hip beam to the end of a ridge beam
• Can be positioned higher or lower on the ridge so the hips are flush at the top

Heavy Steel Where It Counts

For structural framing hardware, shape and thickness are not cosmetic details. The formed body, heavy gauge steel, and full fastening pattern are what give this connector its fit and strength in the assembly.

• Made from 12 gauge steel
• G90 galvanized finish for general atmospheric corrosion resistance in interior and dry environments

Match the Connector to the Member Size

Fit is everything on a connector like this. The HHRC44 is not a one-size-fits-all bracket. It is sized specifically for the framing members listed by Simpson, which helps avoid install issues before the connector ever gets to the job.

• For solid sawn lumber: Ridge 4x and Hip 4x
• For structural composite lumber: Ridge 3-1/2 in. and Hip 3-1/2 in.

Clearer Framing Layout

Illustrations like this show why framers use dedicated connectors for this joint. You get a straightforward fastening location and a repeatable layout instead of building the detail from scratch every time.

• Face-mount style supports accurate placement during framing
• Use all specified included fasteners per Simpson installation notes

Key Specifications

Connector Type	Hip-Ridge Face-Mount Connector
Material Thickness	12 gauge steel
Finish	Zinc Galvanized, G90
Application	Solid Sawn Lumber / Structural Composite Lumber
Member Size	SSL: Ridge 4x – Hip 4x / SCL: Ridge 3-1/2 in. – Hip 3-1/2 in.
Ridge Seat Width	3-5/8 in.
Hip Seat Width	3-5/8 in.
Packaging Quantity	1

Compatibility

Framing Material

Sized for solid sawn lumber and structural composite lumber applications listed for the HHRC44.

Member Sizes

Fits SSL ridge 4x with hip 4x, or SCL ridge 3-1/2 in. with hip 3-1/2 in.

Fasteners

Uses Simpson Strong-Drive SD Connector screws, with specified fasteners included according to manufacturer information.

Built For

Roof Framing Carpentry Construction General Contracting Residential Framing Structural Wood Connections

Tool Nut’s Take

Tool Nut’s Take

Simpson Strong-Tie HHRC44 Hip-Ridge Face-Mount Connector – Galvanized solves a tricky framing joint the right way

If you are tying a hip into a ridge and want a cleaner, engineered detail instead of site-made guesswork, this is the right kind of hardware to have in the plan.

• Who it’s for: Framers, builders, and remodelers working on roof framing with 4x solid sawn members or matching 3-1/2 inch structural composite lumber.
• Why it stands out: You get 12 gauge steel, G90 galvanizing, published fitment, and included Strong-Drive connector screws from a brand that owns this category.
• Worth knowing: This is a size-specific structural connector, so the member dimensions need to match the HHRC44 listing. It is also intended for interior and dry-environment corrosion conditions, not every treated-lumber or exterior exposure situation.

Common Questions

• What is the HHRC44 designed to connect? It is designed to attach a hip beam to the end of a ridge beam in roof framing.
• What lumber sizes does this model fit? For solid sawn lumber, it fits a 4x ridge and 4x hip. For structural composite lumber, it fits a 3-1/2 inch ridge and 3-1/2 inch hip.
• What is the connector made from? The HHRC44 is made from 12 gauge steel with a zinc galvanized G90 finish.
• Are fasteners included? Yes. Manufacturer information states that the specified Strong-Drive SD Connector screws are included.
