Description

• Wider seat to fit 1-3/4 in. LVL rafters
• Both side faces connect to the joist for better support
• Can be installed on inside or outside of wall, or both sides
• Connector embossments add stiffness in crucial areas for improved performance
• Fits popular 0.148 in. x 1-1/2 in. connector nails
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

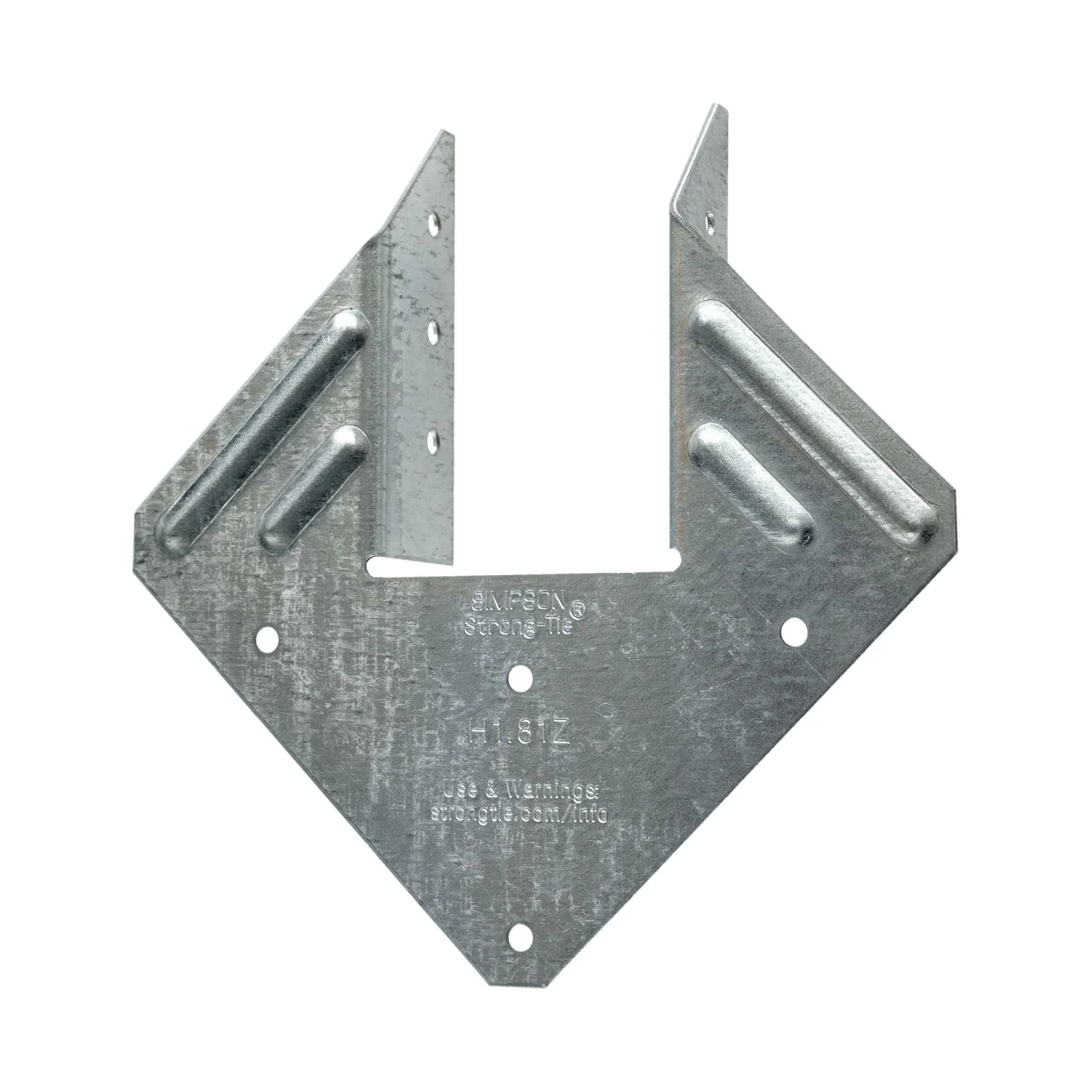

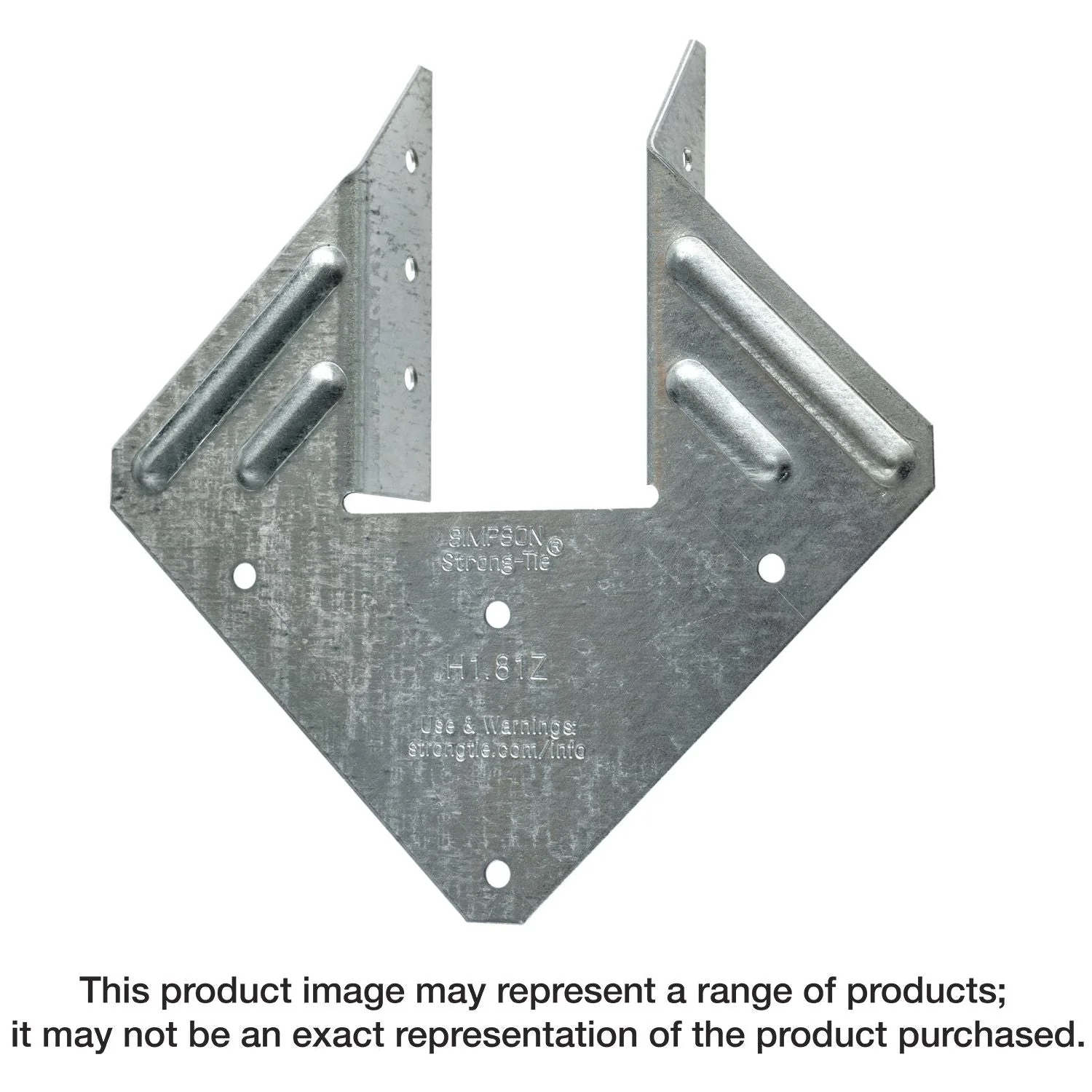

The Simpson Strong-Tie H1.81Z hurricane tie is designed for use with 1-3/4 in. LVL roof rafters to provide a stronger connection to the top plate of the wall. It’s ideal for connections when there are higher-load demands on the structure, like a heavy snow load, and provides lateral resistance in a seismic event. The 1-3/4 in. wide H1.81Z connector is the first hurricane tie to be specifically sized for engineered wood. The H1.81Z installs with half the nails that are needed for two single-sided twist straps and offers a higher lateral allowable load, making it a cost-effective and higher-performing solution to tie down an LVL roof.

• Wider seat to fit 1-3/4 in. LVL rafters
• Both side faces connect to the joist for better support
• Can be installed on inside or outside of wall, or both sides
• Connector embossments add stiffness in crucial areas for improved performance
• Fits popular 0.148 in. x 1-1/2 in. connector nails
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Install With: Installs with 0.148 in. x 1-1/2 in. connector nails or #9 x 1-1/2 in. Simpson Strong-Tie Strong-Drive SD Connector screws
