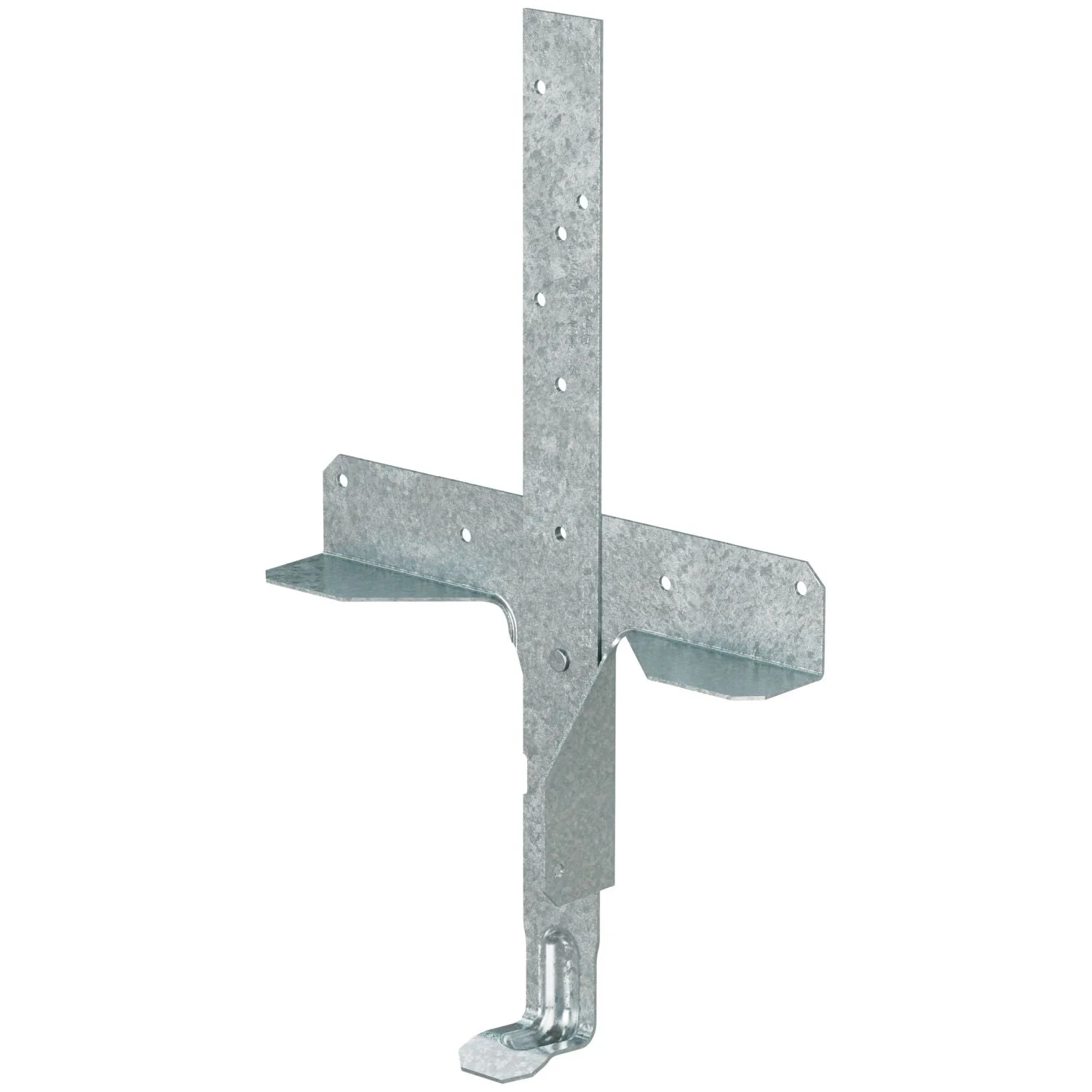

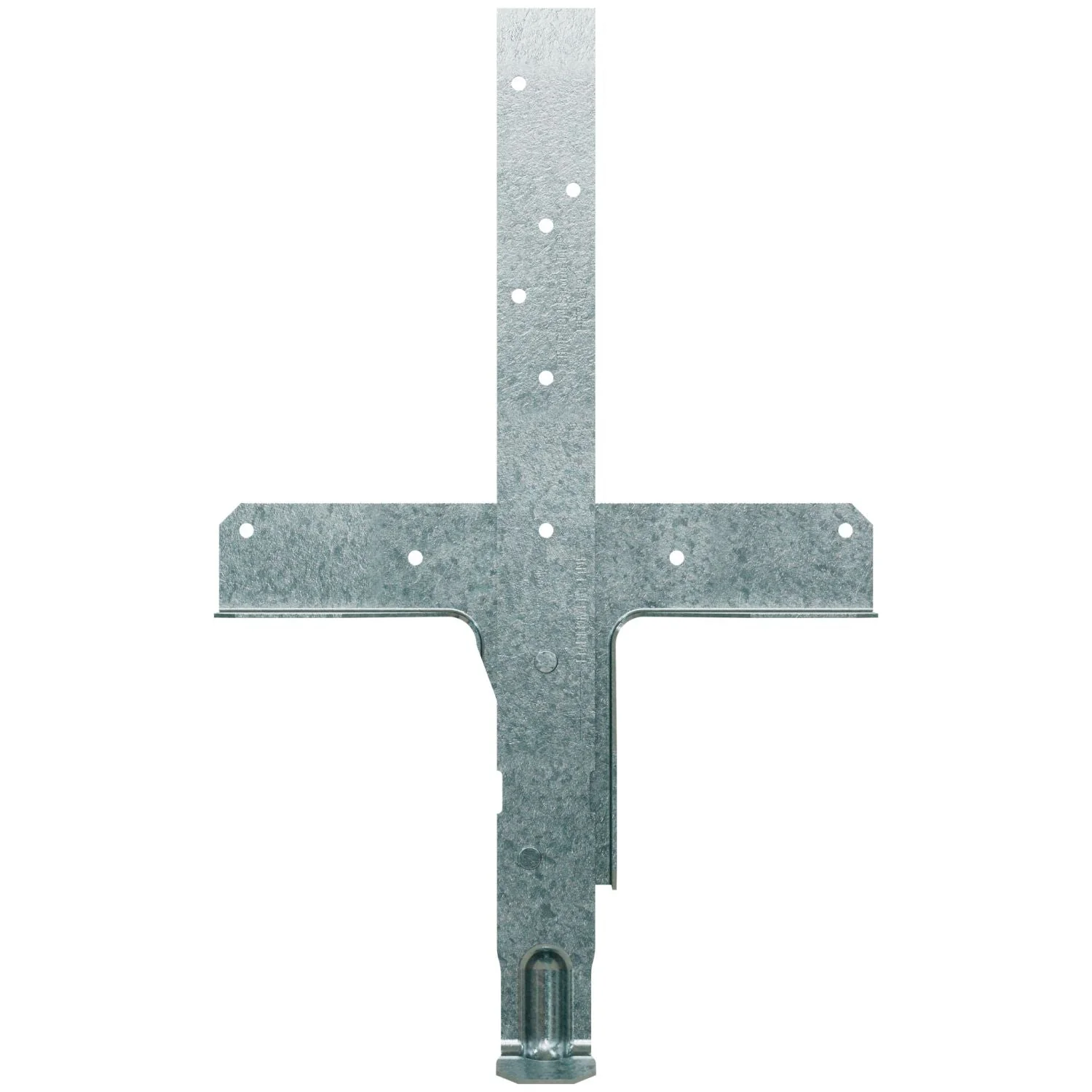

Simpson Strong-Tie HETAL12 HETAL 12-in. Galvanized Heavy Embedded Truss Anchor

Original price was: $3.99.Current price is: $1.20.

Can be installed straight or field-bent around truss or rafter members Built-in moisture barrier Load rated for wind and seismic forces 7-in. exposed length Embed 5-1/16 in. into a poured concrete bond beam or grouted block wall Strap made from 16-ga. steel; truss seat made from 18-ga. steel Galvanized (G90) for extra corrosion resistance The…

Checkout

Description

  • Can be installed straight or field-bent around truss or rafter members
  • Built-in moisture barrier
  • Load rated for wind and seismic forces
  • 7-in. exposed length
  • Embed 5-1/16 in. into a poured concrete bond beam or grouted block wall
  • Strap made from 16-ga. steel; truss seat made from 18-ga. steel
  • Galvanized (G90) for extra corrosion resistance

The HETAL provides an engineered method to attach roof trusses securely to concrete and masonry walls. This heavy embedded truss anchor works specifically to support lateral loads and features a staggered nail pattern to strengthen uplift resistance. The HETAL also features a built-in moisture plate that sits above the concrete or masonry wall.

  • Can be installed straight or field-bent around truss or rafter members
  • Built-in moisture barrier
  • Load rated for wind and seismic forces
  • 7-in. exposed length
  • Embed 5-1/16 in. into a poured concrete bond beam or grouted block wall
  • Strap made from 16-ga. steel; truss seat made from 18-ga. steel
  • Galvanized (G90) for extra corrosion resistance

Install With: Install with 10d x 1-1/2 in. nails or 16d common nails
