Description

• Kit includes (20) HM9 connectors
• Packaged with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws and 2-1/4 in. Titen Turbo screws
• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

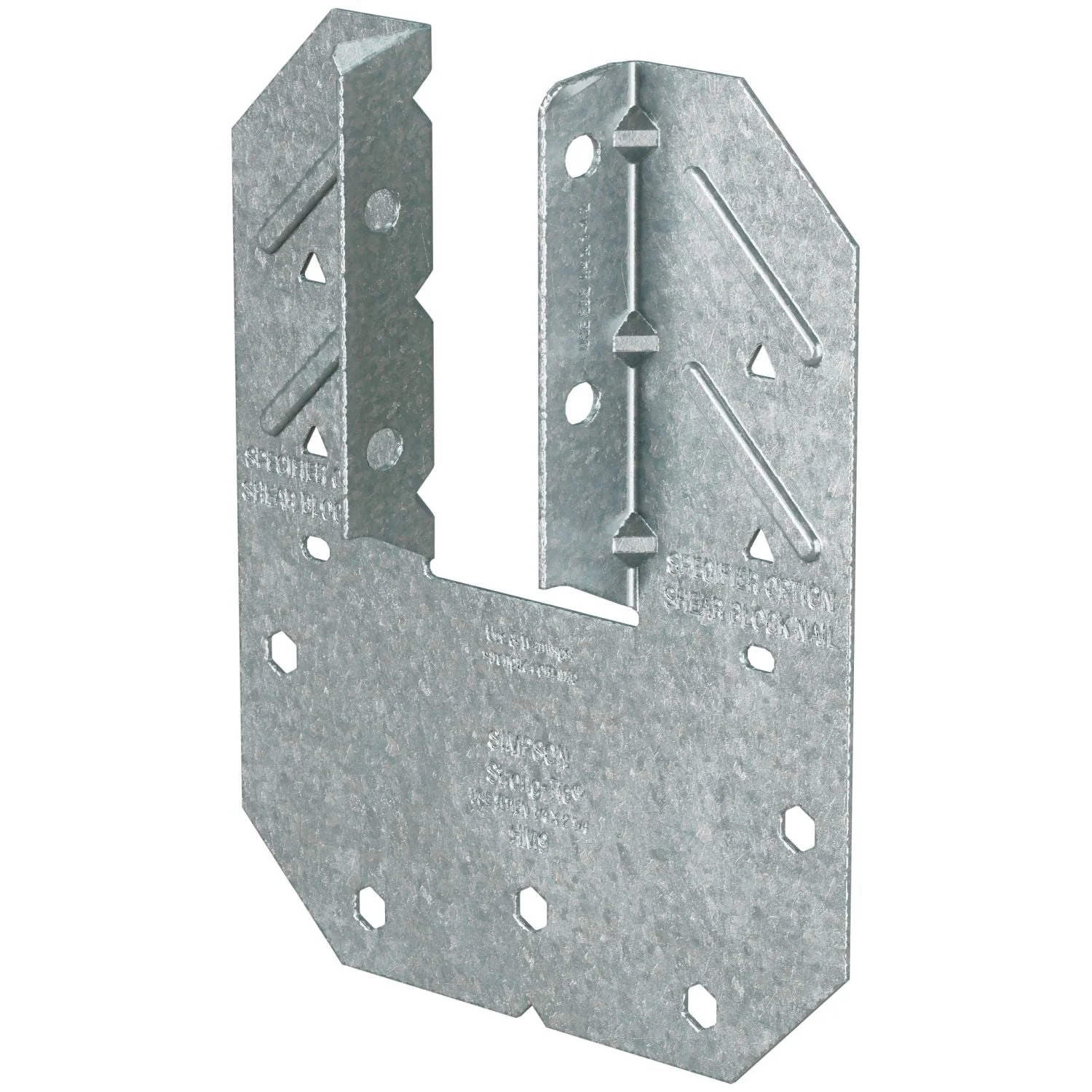

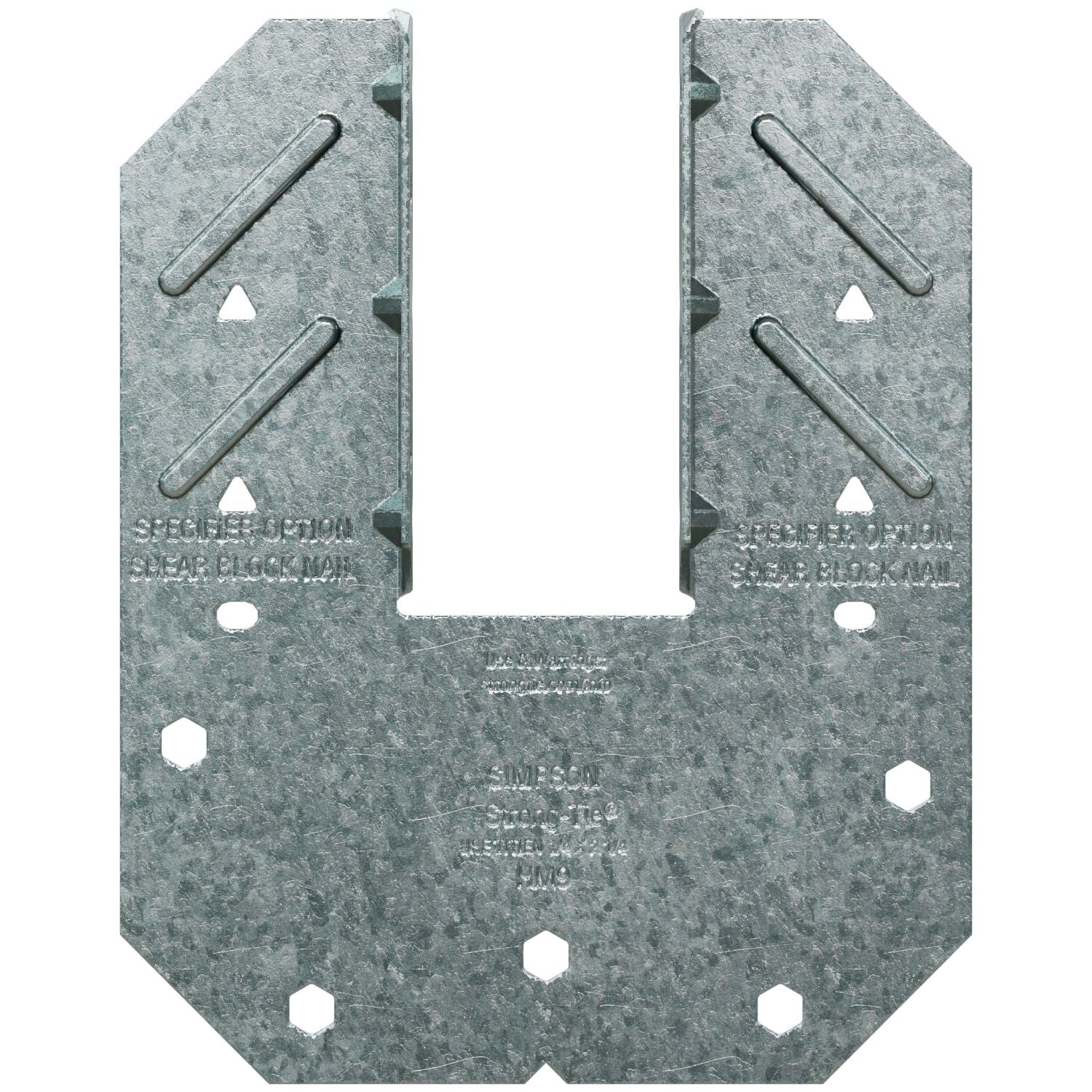

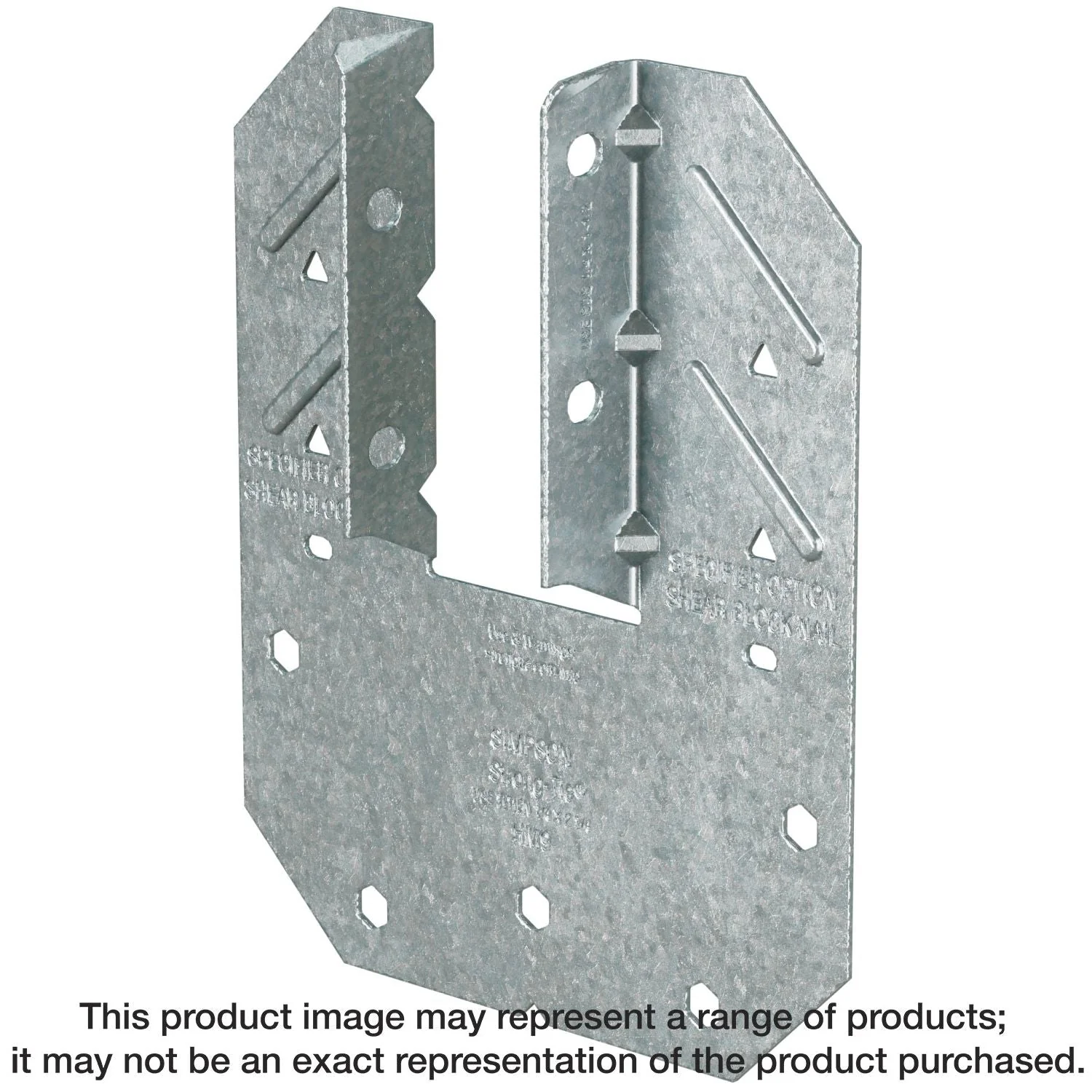

Simpson Strong-Tie hurricane ties are designed to resist high winds and seismic forces by positively connecting trusses/rafters to the top of wall of the structure. These ties connect both solid-sawn and engineered lumber across a wide range of applications. Designed to retrofit roof truss/rafters for block construction, the HM9 hurricane tie provides high uplift and lateral capacity using Simpson Strong-Tie Titen Turbo concrete and masonry screws.

• Kit includes (20) HM9 connectors
• Packaged with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws and 2-1/4 in. Titen Turbo screws
• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: Install with 1/4 in. x 1-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included) and 1/4 in. x 2-1/4 in. Titen Turbo screws (to GFCMU) or 1/4 in. x 1-3/4 in. Titen Turbo screws (to concrete)
