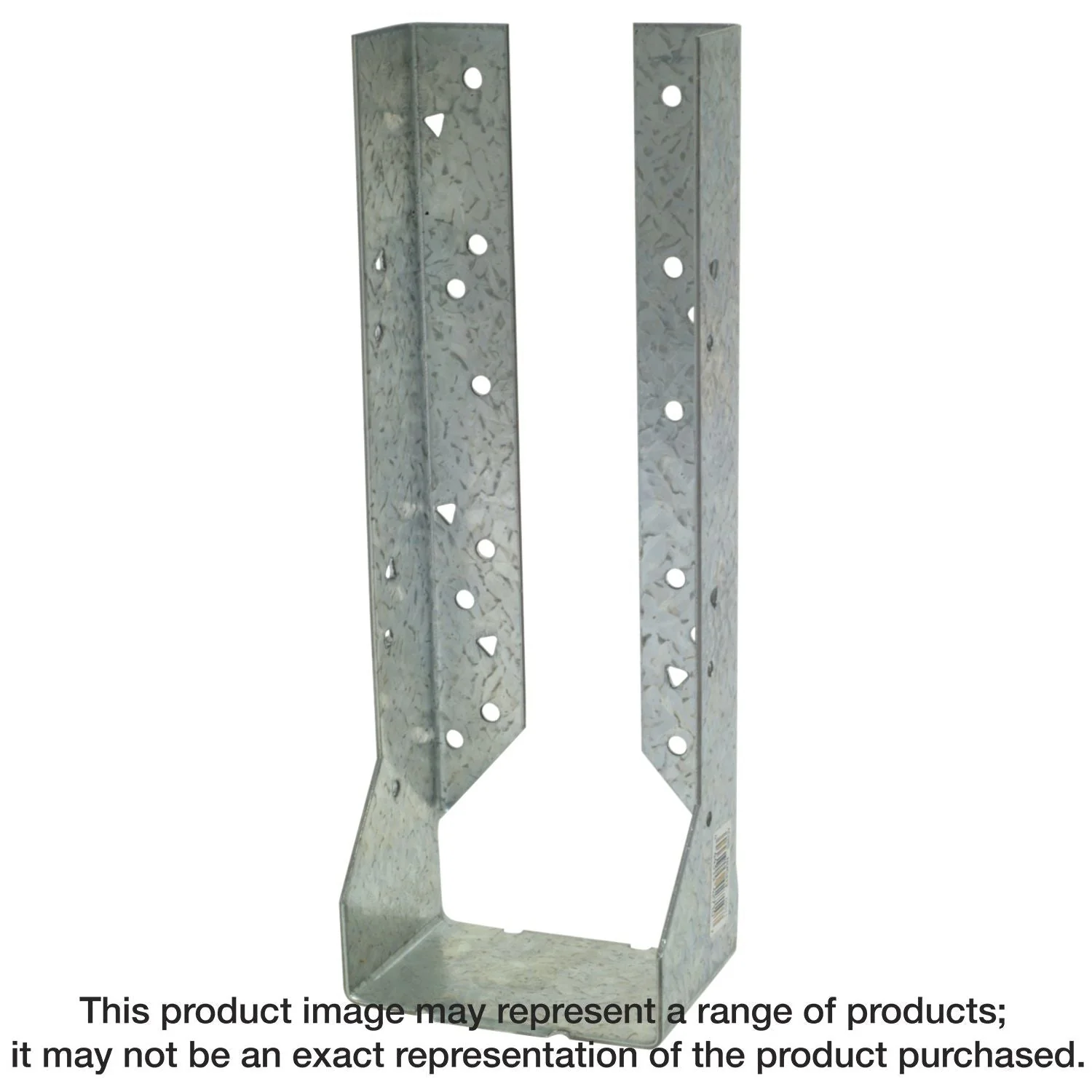

Simpson Strong-Tie HUC412 HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for 4x12 - Image 1

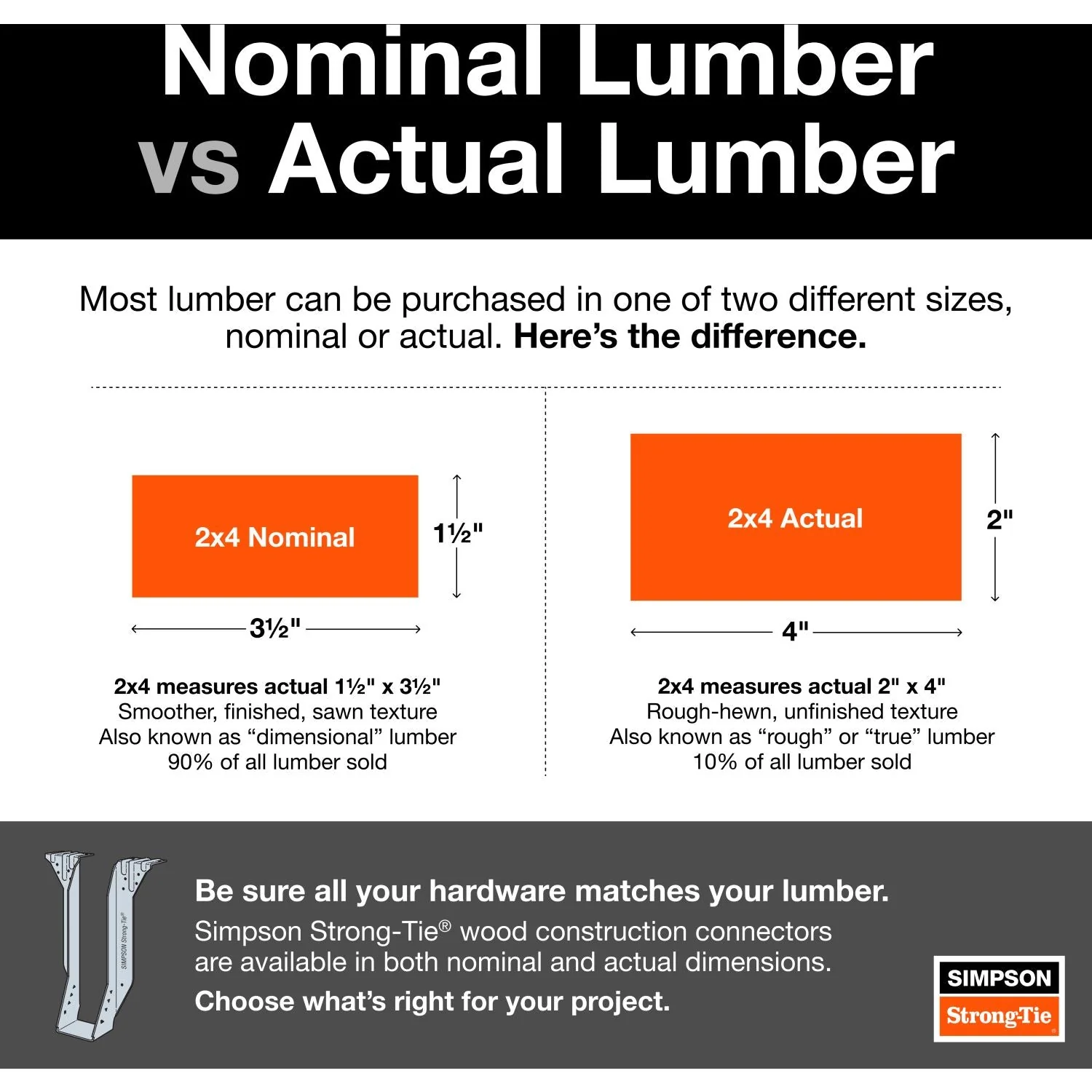

Simpson Strong-Tie HUC412 HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for 4x12 - Image 2

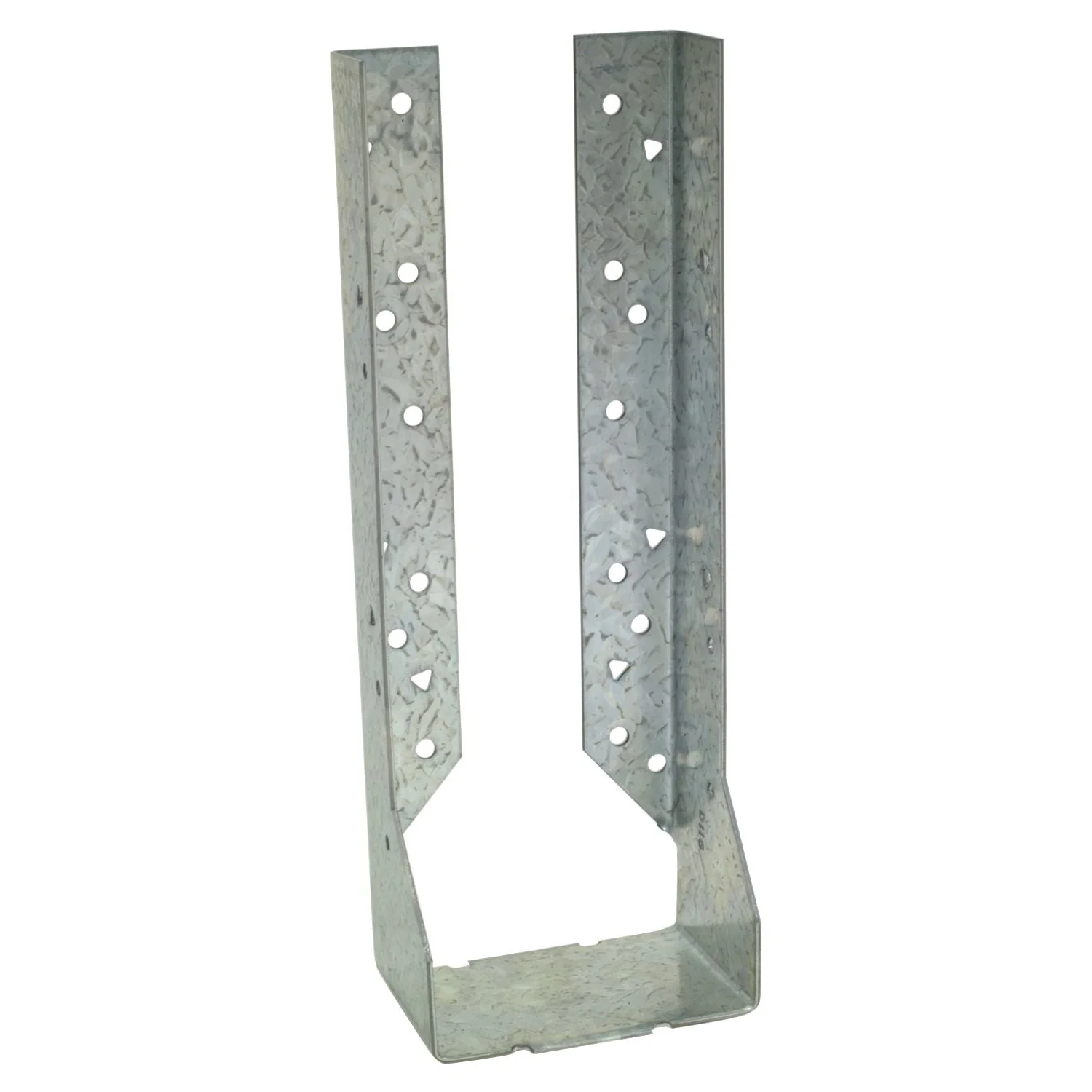

Simpson Strong-Tie HUC412 HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for 4x12 - Image 3
Product on sale
Simpson Strong-Tie HUC412 HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for 4x12 - Image 1Simpson Strong-Tie HUC412 HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for 4x12 - Image 2Simpson Strong-Tie HUC412 HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for 4x12 - Image 3

Simpson Strong-Tie HUC412 HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for 4×12

Original price was: $19.99.Current price is: $6.00.

Extra optional triangle holes for additional load HUC-series hangers are tested, load rated and code compliant Install wood joists to wood, masonry and concrete Seat width: 3-9/16 in. Nominal joist size: 4×12 Made from 14-gauge steel Galvanized (G90) for extra corrosion resistance The HUC is designed for structures requiring additional strength and safety factors. These…

Checkout

Description

  • Extra optional triangle holes for additional load
  • HUC-series hangers are tested, load rated and code compliant
  • Install wood joists to wood, masonry and concrete
  • Seat width: 3-9/16 in.
  • Nominal joist size: 4×12
  • Made from 14-gauge steel
  • Galvanized (G90) for extra corrosion resistance

The HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.

  • Extra optional triangle holes for additional load
  • HUC-series hangers are tested, load rated and code compliant
  • Install wood joists to wood, masonry and concrete
  • Seat width: 3-9/16 in.
  • Nominal joist size: 4×12
  • Made from 14-gauge steel
  • Galvanized (G90) for extra corrosion resistance

Install With: Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 3 in. nails in the joist
