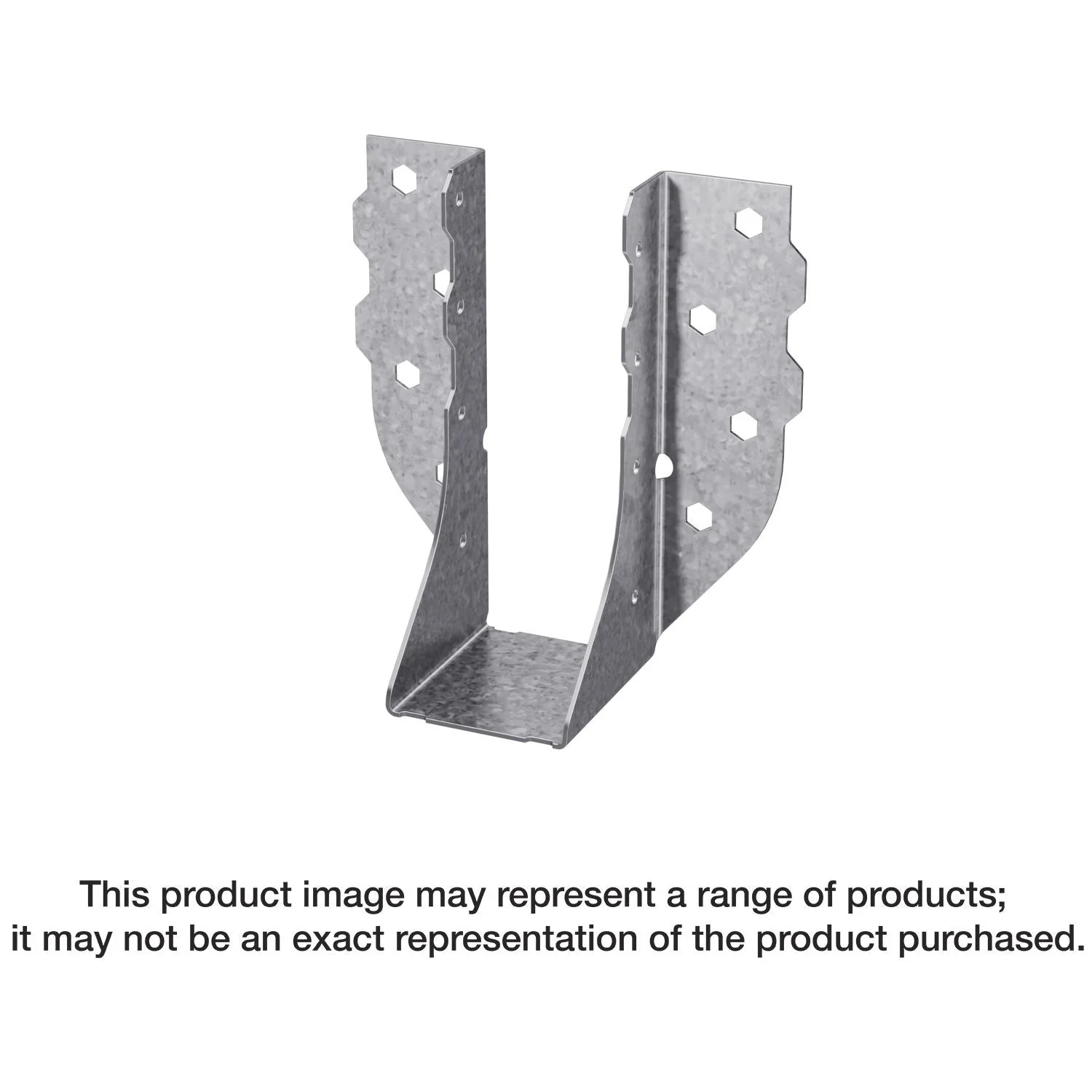

Simpson Strong-Tie LGUM46-SDS LGUM High-Capacity Girder Hanger for Masonry for 4x6 with Screws/Anchors - Image 1
Simpson Strong-Tie LGUM46-SDS LGUM High-Capacity Girder Hanger for Masonry for 4x6 with Screws/Anchors - Image 2

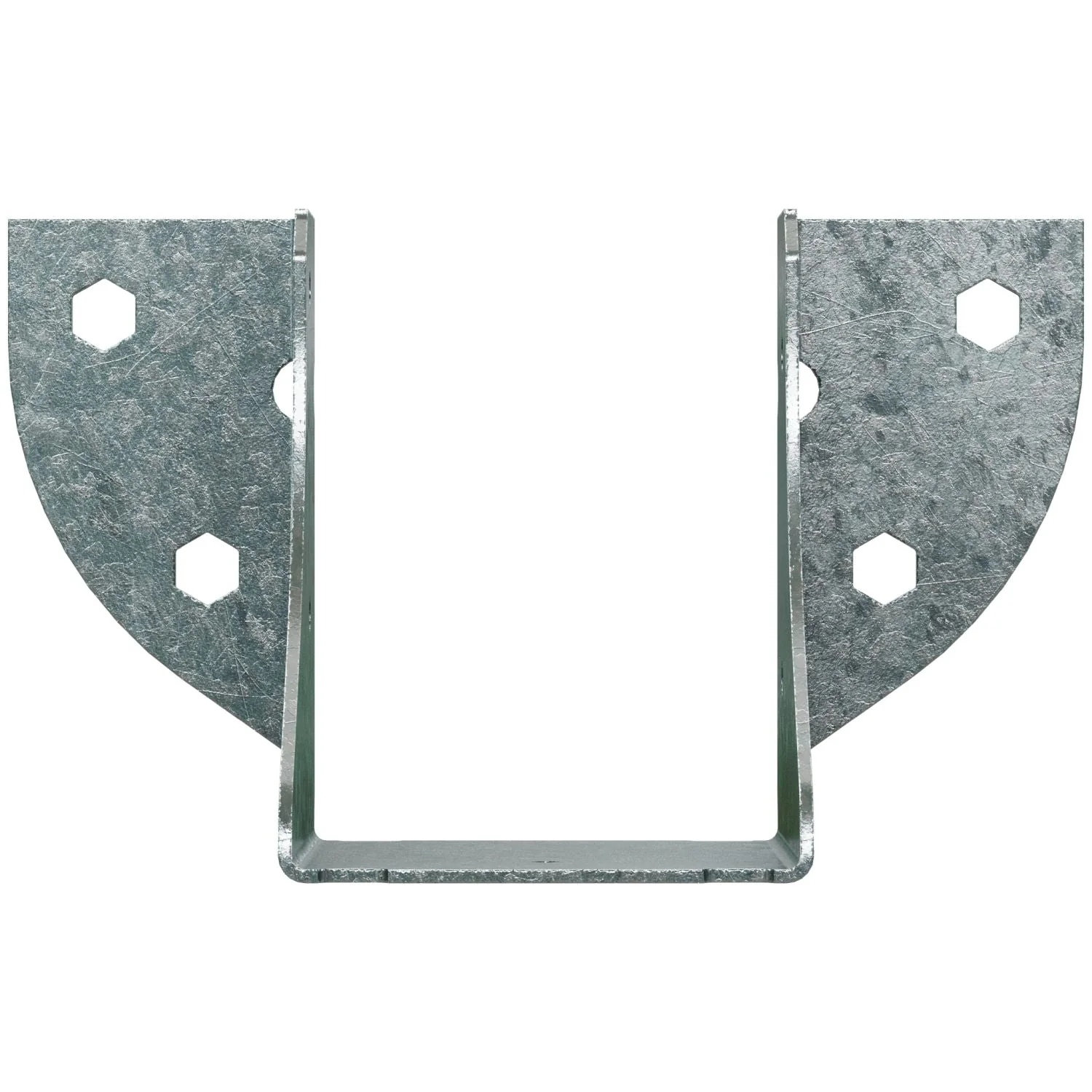

Simpson Strong-Tie LGUM46-SDS LGUM High-Capacity Girder Hanger for Masonry for 4x6 with Screws/Anchors - Image 3
Product on sale
Simpson Strong-Tie LGUM46-SDS LGUM High-Capacity Girder Hanger for Masonry for 4x6 with Screws/Anchors - Image 1Simpson Strong-Tie LGUM46-SDS LGUM High-Capacity Girder Hanger for Masonry for 4x6 with Screws/Anchors - Image 2Simpson Strong-Tie LGUM46-SDS LGUM High-Capacity Girder Hanger for Masonry for 4x6 with Screws/Anchors - Image 3

Simpson Strong-Tie LGUM46-SDS LGUM High-Capacity Girder Hanger for Masonry for 4×6 with Screws/Anchors

Original price was: $81.99.Current price is: $20.50.

Attach hanger to a concrete or grouted CMU wall using Titen HD anchors Titen HD is not recommended for exposed exterior applications Provide moisture barrier between beam and wall per jurisdictional requirements Nominal joist size: 4×6 Made from 12-gauge steel Galvanized (G90) for extra corrosion resistance Joist hangers are designed to provide support underneath the…

Checkout

Description

  • Attach hanger to a concrete or grouted CMU wall using Titen HD anchors
  • Titen HD is not recommended for exposed exterior applications
  • Provide moisture barrier between beam and wall per jurisdictional requirements
  • Nominal joist size: 4×6
  • Made from 12-gauge steel
  • Galvanized (G90) for extra corrosion resistance

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. LGUM high-capacity beam or girder hangers are for concrete or masonry applications. Installation is made easier using Simpson Strong-Tie Strong-Drive SDS screws (provided) into the wood member and Titen HD anchors (provided) into the masonry.

  • Attach hanger to a concrete or grouted CMU wall using Titen HD anchors
  • Titen HD is not recommended for exposed exterior applications
  • Provide moisture barrier between beam and wall per jurisdictional requirements
  • Nominal joist size: 4×6
  • Made from 12-gauge steel
  • Galvanized (G90) for extra corrosion resistance

Install With: Install with Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors (included)
