Description

• Adjustable design allows greater connection versatility
• Always install in pairs; universal design eliminates need for rights and lefts
• Stronger than angled nailing or screw fastening; eliminates nailing into end grain
• Can be installed after beams have been put in place
• For use with nominal 4x or 6x lumber
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

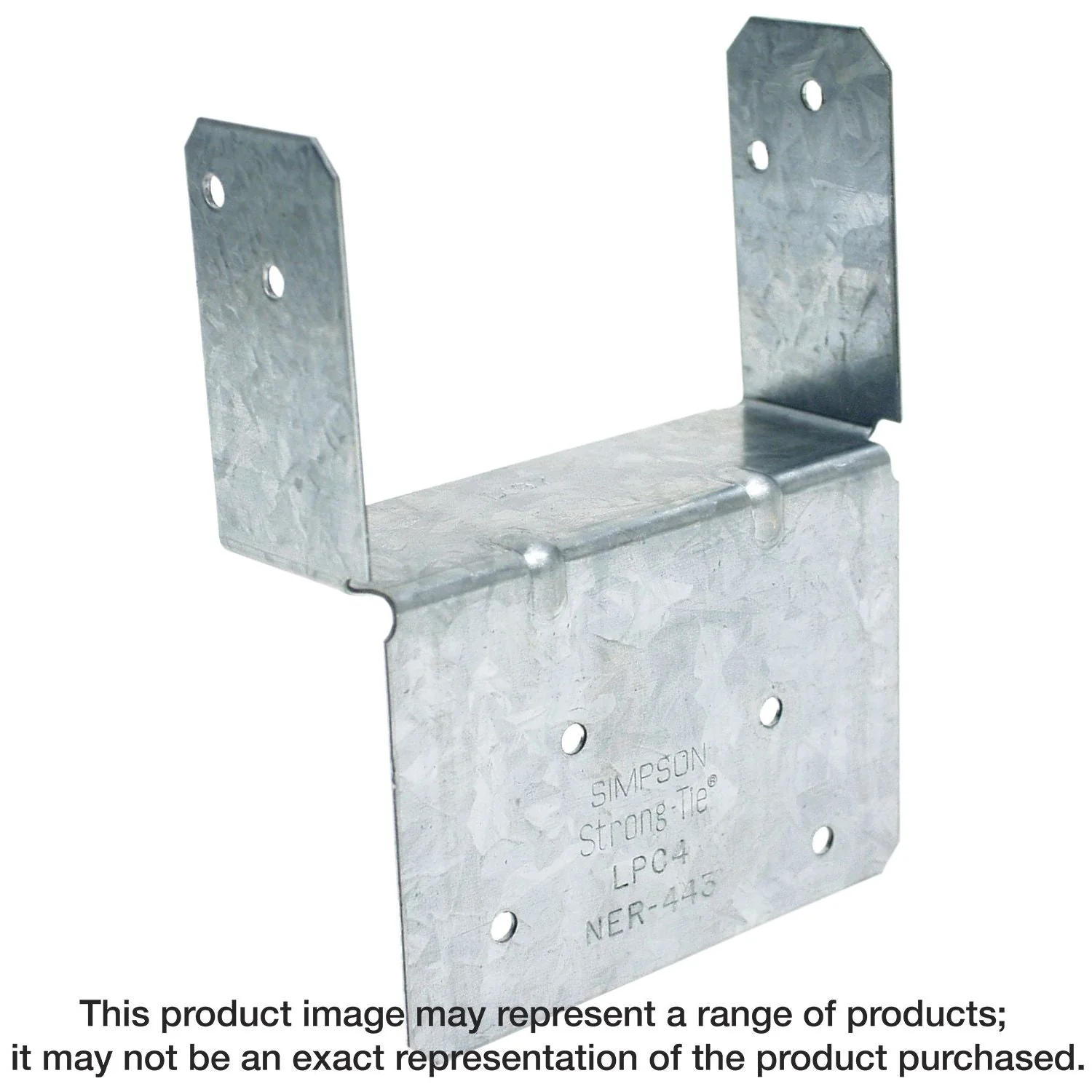

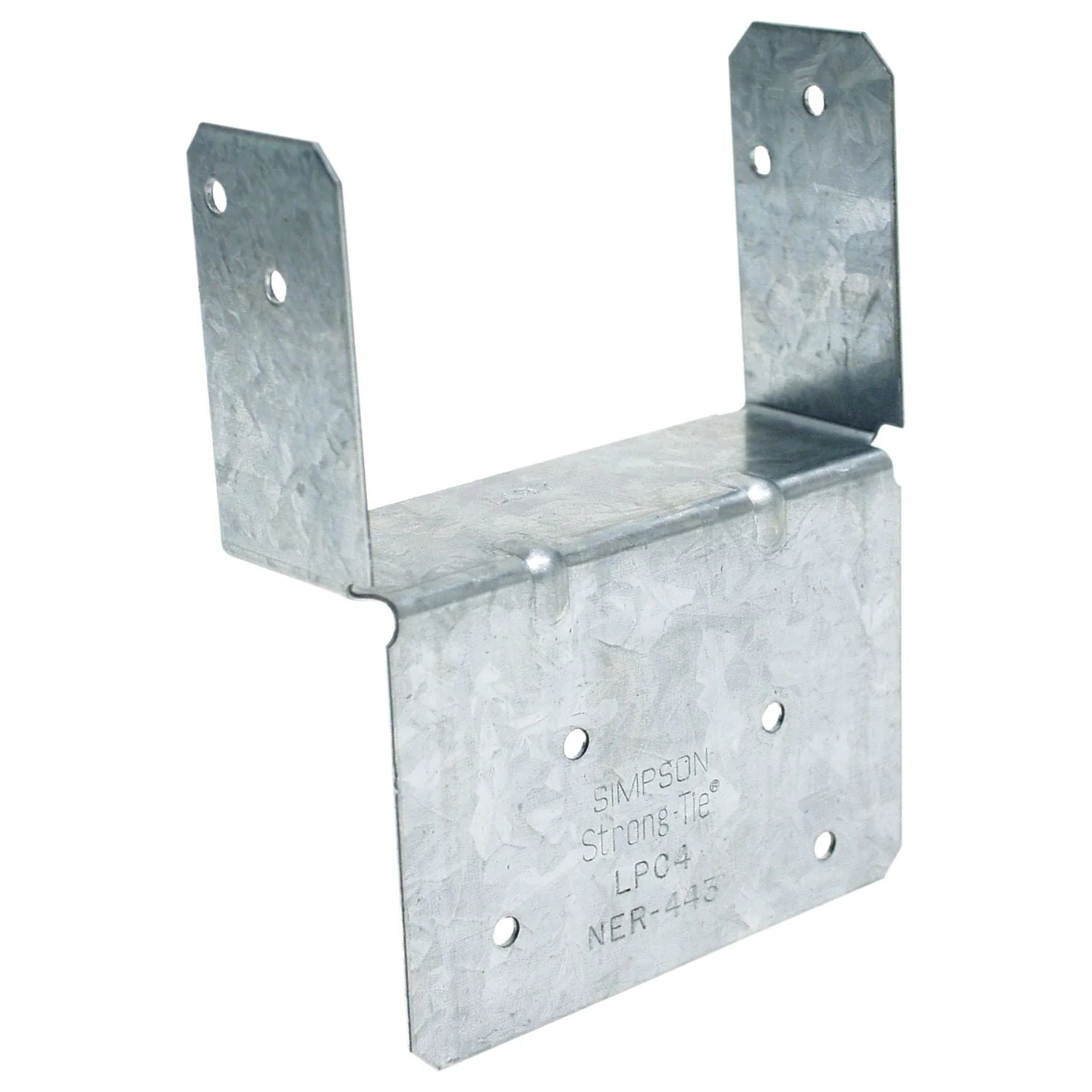

Post caps connect tops of posts to members for a secure connection and are ideal for new or retrofit applications where structural support is needed. Post caps are available in a variety of one-piece caps for new construction and two-piece options for retrofit of existing connections. The LPCZ™ provides a connection between a 4x or 6x beam and post. This versatile connector is suitable for a variety of connections with 4x or 6x lumber.

• Adjustable design allows greater connection versatility
• Always install in pairs; universal design eliminates need for rights and lefts
• Stronger than angled nailing or screw fastening; eliminates nailing into end grain
• Can be installed after beams have been put in place
• For use with nominal 4x or 6x lumber
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Install With: Install with 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws
