Description
- Available with the bend reversed; specify “-REV” after the model number, such as LTS20-REV
- Versatile with many lengths offered to fit the specific application
- Straps do not need to be wrapped over the truss to achieve the allowable load
- Length: 20 In.
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance

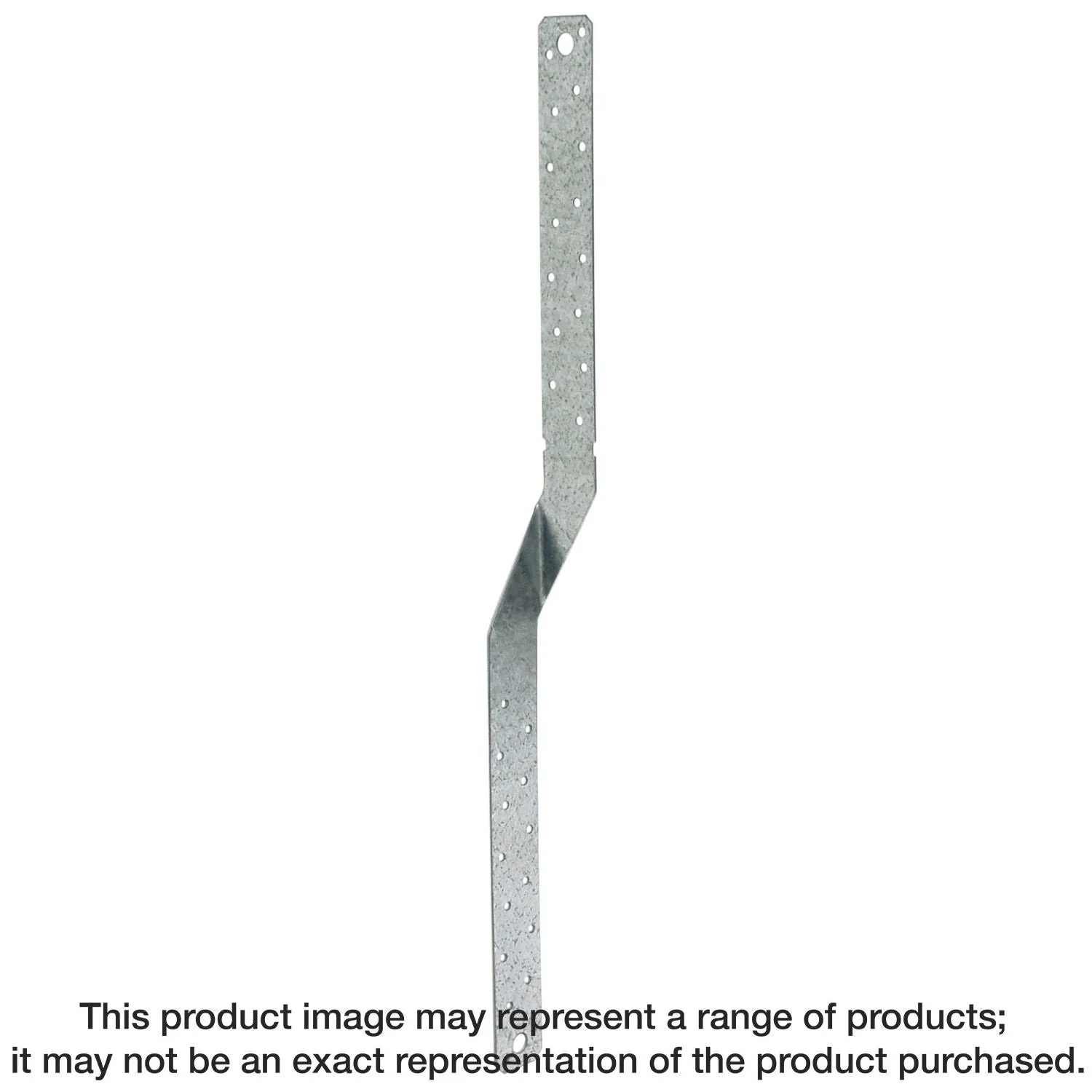

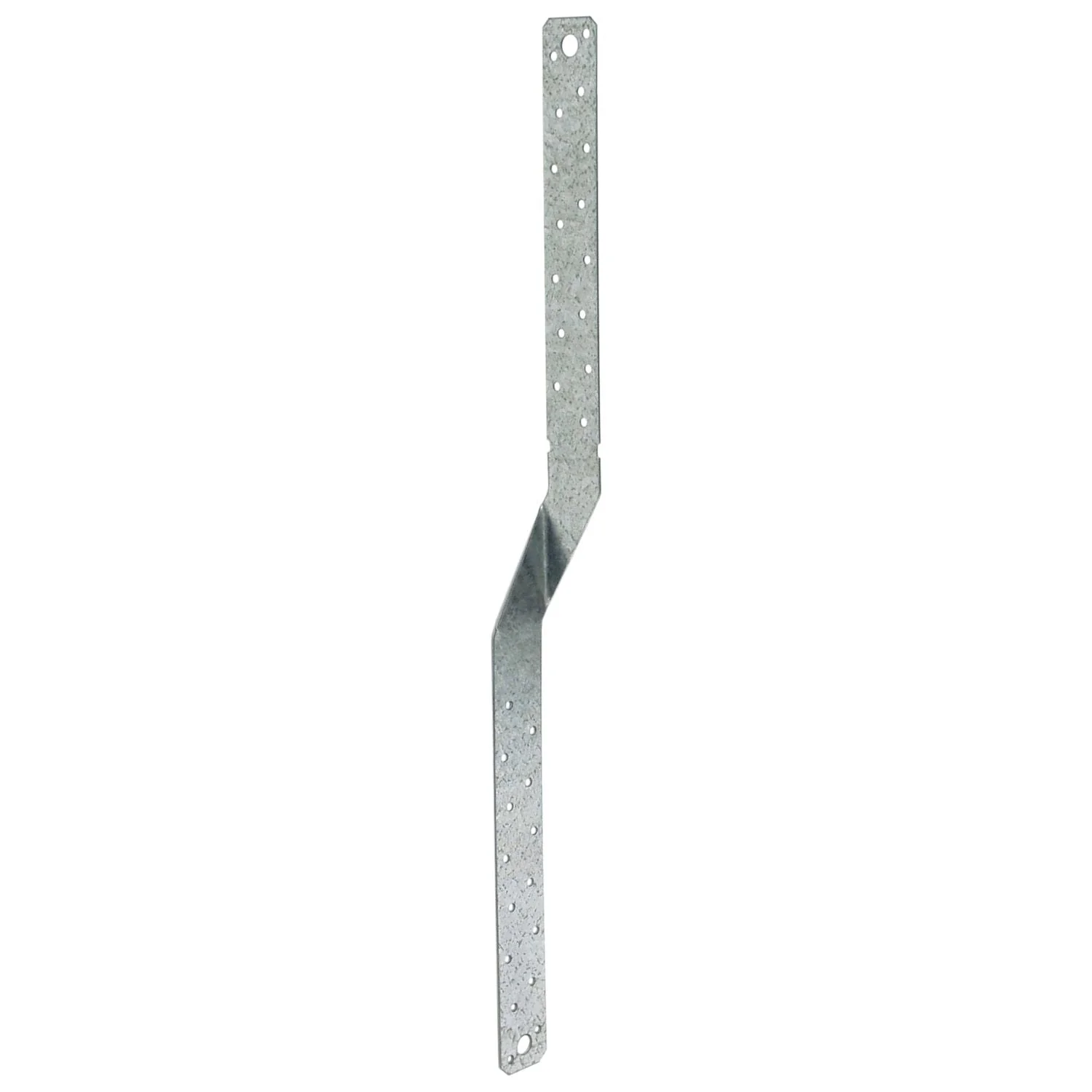

Simpson Strong-Tie straps and plates join and reinforce joints with simple, versatile solutions for a wide range of connections. The LTS provides a tension connection between two members, resisting light to medium uplift loads at the rafter or heel of a truss. This economical light twist strap has a small bend section to reduce interference at the transition points between the two members.
- Available with the bend reversed; specify “-REV” after the model number, such as LTS20-REV
- Versatile with many lengths offered to fit the specific application
- Straps do not need to be wrapped over the truss to achieve the allowable load
- Length: 20 In.
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: Install with 10d common nails or 10d x 1-1/2 in. nails
