Description

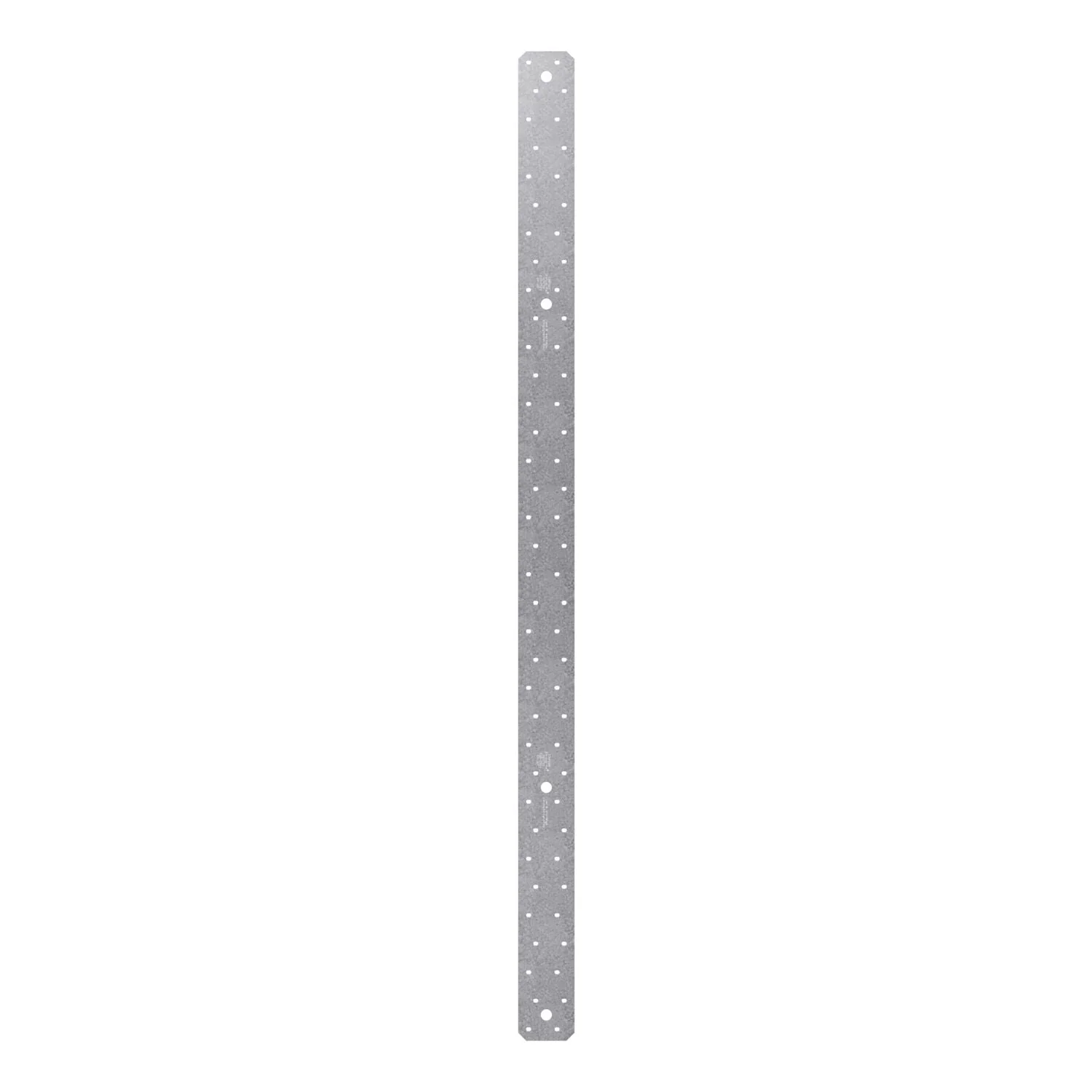

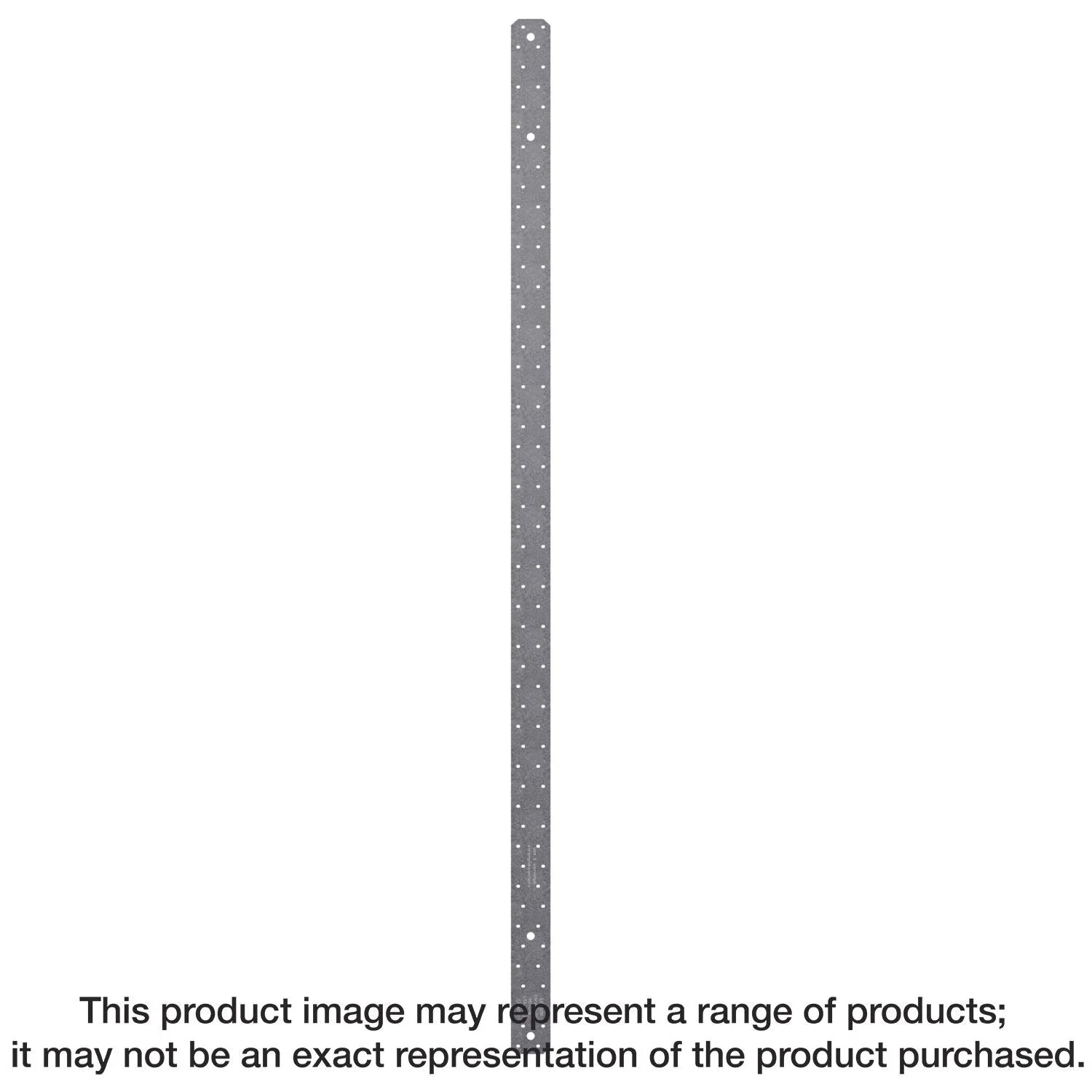

• Designed to transfer tension loads in a wide variety of applications
• High-capacity strap which utilizes a staggered nail pattern to help minimize wood splitting
• Nail slots have been countersunk to provide a lower nail-head profile
• Length: 52-1/4 in.
• Width: 3 in.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance
• Special sizes can be made to order; contact Simpson Strong-Tie

Simpson Strong-Tie straps and plates join and reinforce joints with simple, versatile solutions for a wide range of connections. Available in many lengths, widths and thicknesses, straps can be used on the wide or narrow face of lumber for light repairs or heavy-duty projects. Many straps are designed to be used back-to-back on a piece of lumber without fastener interference.

• Designed to transfer tension loads in a wide variety of applications
• High-capacity strap which utilizes a staggered nail pattern to help minimize wood splitting
• Nail slots have been countersunk to provide a lower nail-head profile
• Length: 52-1/4 in.
• Width: 3 in.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance
• Special sizes can be made to order; contact Simpson Strong-Tie

Install With: Install with 16d sinkers or #9 x 1-1/2 in. Strong-Drive SD screws
