Description

• A single installer can easily install these clips, meaning faster work
• Many applications require only one screw, greatly reducing labor costs and increasing productivity
• Tested to include stud-web strength and stiffness in the tabulated design values
• Flexible design solutions for web thicknesses of 33 mil (20 ga.) through 97 mil (12 ga.) and stud sizes from 3-5/8 in. to 8 in.
• Compact profile allows standard 1-5/8 in. studs to be sistered directly against adjacent studs
• MSUBH accommodates single members from 54 mil (16 ga.) to 97 mil (12 ga.) and back-to-back built-up members ranging from 33 mil (20 ga.) to 54 mil (16 ga.).
• Width: 3-1/4 in.
• Made from 14-gauge (68 mil) steel
• Quantity: 100 per package

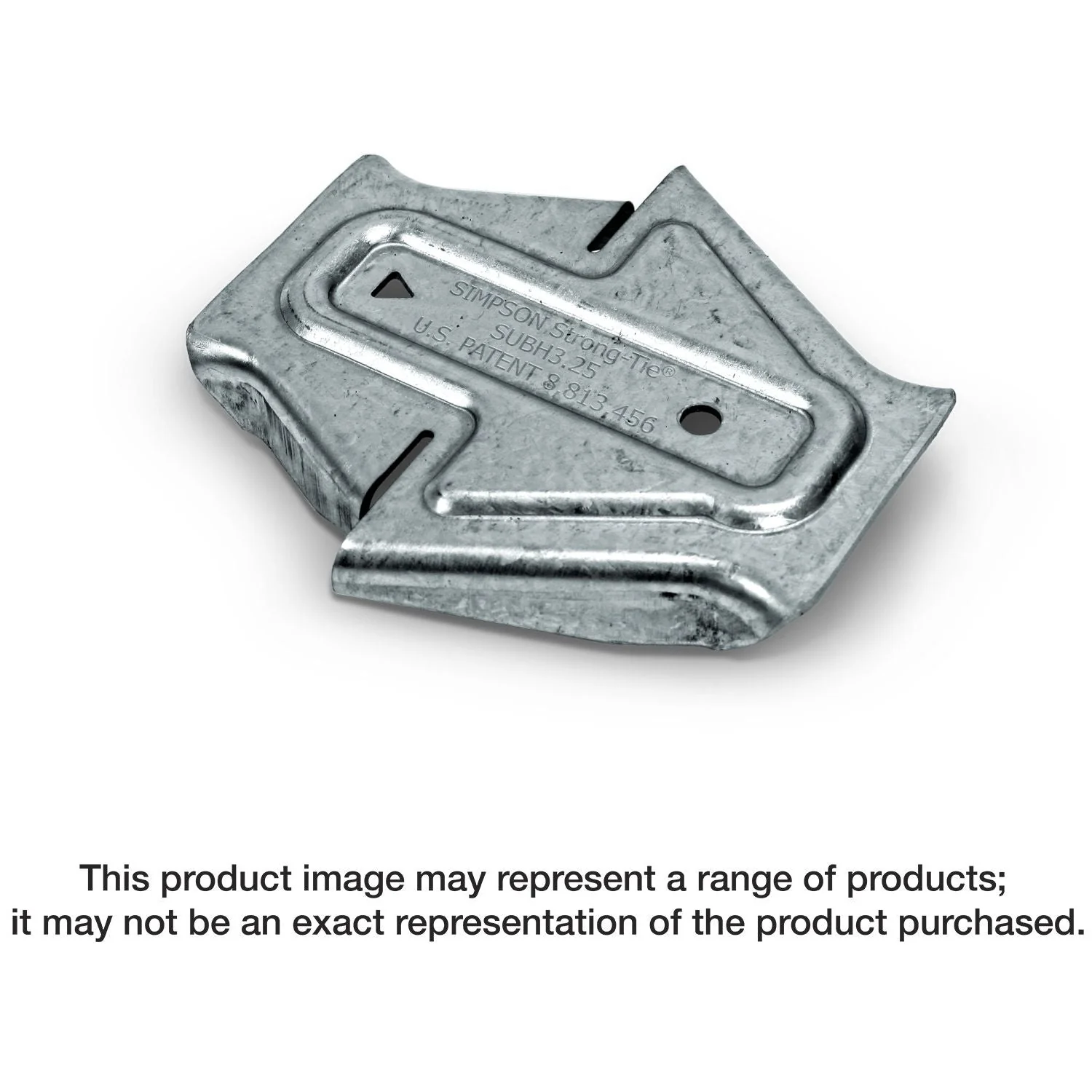

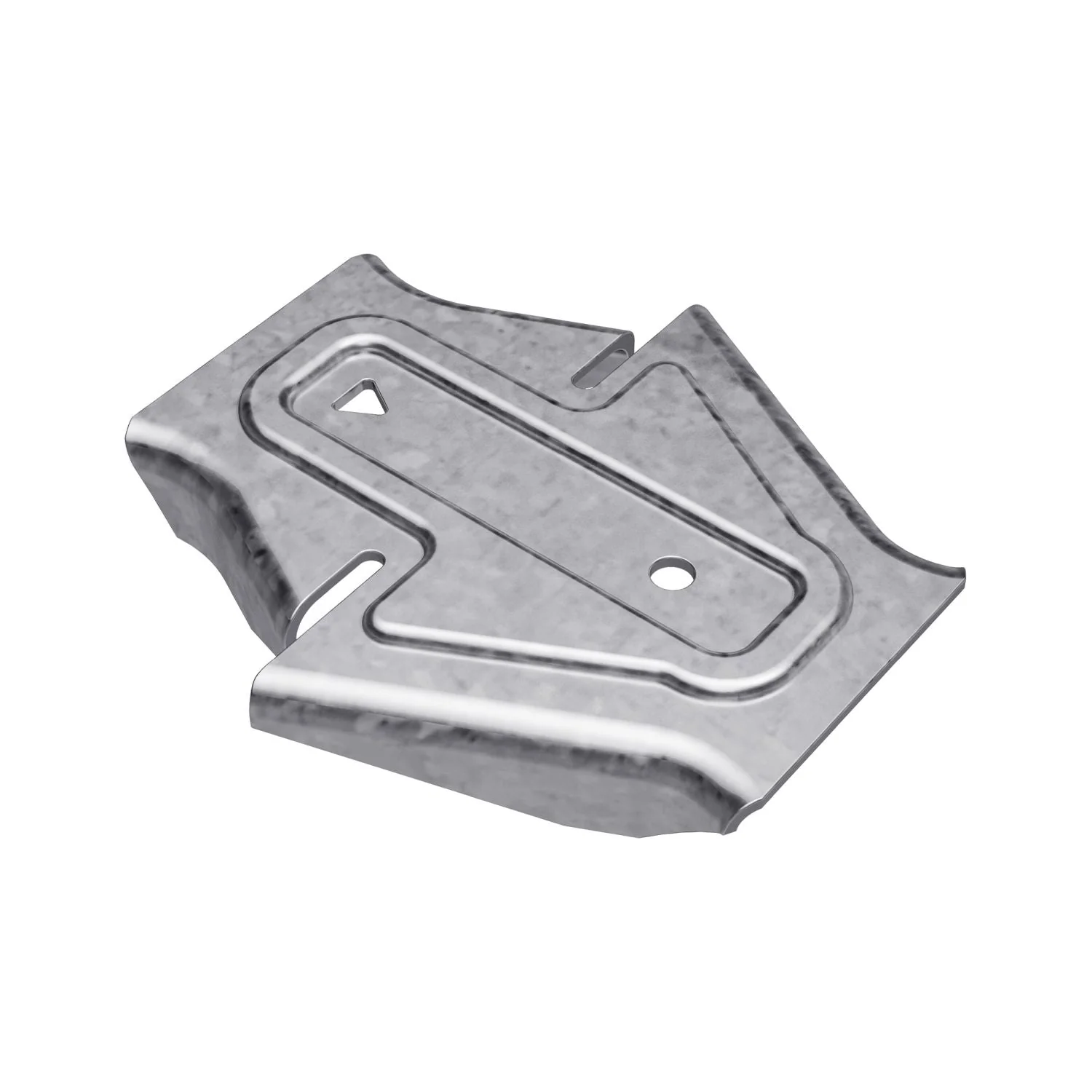

Simpson Strong-Tie cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel (CFS) application. From hangers, holdowns and steel studs to hand-bendable framing members for creating curved walls on CFS jobsites, Simpson Strong-Tie offers a wide variety of sizes, materials and finishes for every project, big and small. SUBH wall stud bridging connectors for cold-formed steel framing feature a compact profile that allows standard 1-5/8 in. studs to be sistered directly against adjacent studs.

• A single installer can easily install these clips, meaning faster work
• Many applications require only one screw, greatly reducing labor costs and increasing productivity
• Tested to include stud-web strength and stiffness in the tabulated design values
• Flexible design solutions for web thicknesses of 33 mil (20 ga.) through 97 mil (12 ga.) and stud sizes from 3-5/8 in. to 8 in.
• Compact profile allows standard 1-5/8 in. studs to be sistered directly against adjacent studs
• MSUBH accommodates single members from 54 mil (16 ga.) to 97 mil (12 ga.) and back-to-back built-up members ranging from 33 mil (20 ga.) to 54 mil (16 ga.).
• Width: 3-1/4 in.
• Made from 14-gauge (68 mil) steel
• Quantity: 100 per package

Install With: Fasteners may vary by application; refer to Simpson Strong-Tie catalog or strongtie.com
