Description

Key Features

Built for Rough 6×6

The Simpson Strong-Tie Outdoor Accents Mission Collection ZMAX, Black Powder-Coated Post Base for 6×6 Rough (APB66R) is sized specifically for 6×6 rough posts, so you get the proper fit without shimming around a nominal base.

Corrosion Resistance

Made from 12-gauge steel with ZMAX galvanization and a black powder coat, this post base is built for exterior and treated-wood applications where plain steel will not hold up.

Adjustable Layout

The slotted design gives you adjustment during install, and the slightly offset fastener holes help reduce screw interference when you are locking the post down.

Overview

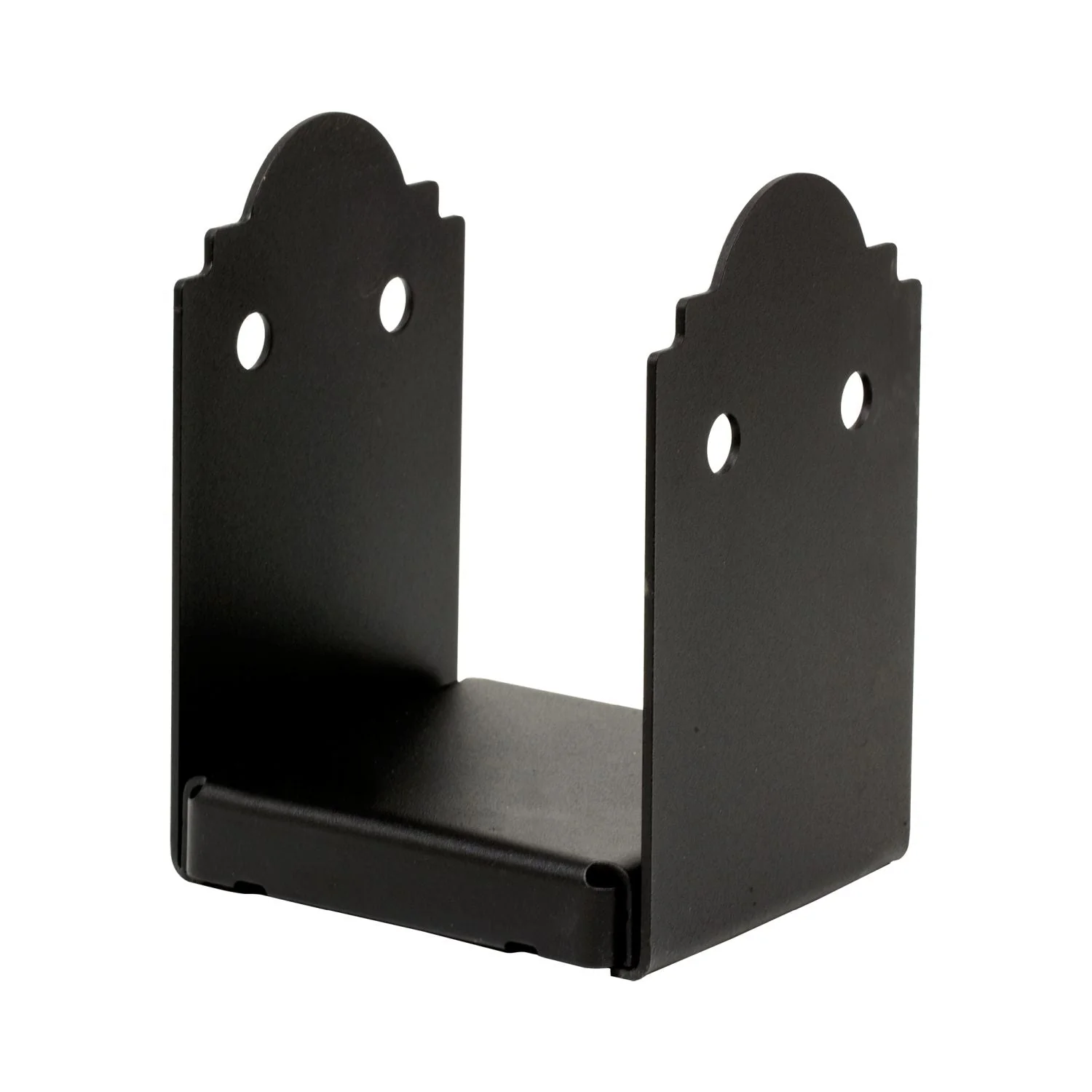

The Simpson Strong-Tie Outdoor Accents Mission Collection ZMAX, Black Powder-Coated Post Base for 6×6 Rough (APB66R) is a decorative steel post base for securing a rough 6×6 post or column to concrete in outdoor structural work. This is a post base designed for post-to-footing connections in top-supported outdoor structures. Model Number: APB66R. If you are building a pergola, patio cover, or similar project and want the connection to look finished instead of purely industrial, this base gives you the code-focused function of a structural connector with the black hardware look the Outdoor Accents line is known for.

What matters most here is fit and application. APB66R is the rough-lumber version, not the nominal 6×6 model. That means it is made for 6×6 rough posts, with a listed width of 6 inches, so you are not fighting the install or ending up with a loose-looking connection. The slotted design gives you some adjustment when setting the post, which is useful when concrete anchors, post placement, and final alignment all need to come together cleanly. Simpson also offsets the fastener holes slightly to help reduce interference between fasteners during installation.

On the durability side, this base is made from 12-gauge steel and finished with ZMAX galvanization plus a black powder coat. That combination matters on exterior builds, especially around moisture and treated lumber. The 1 inch standoff keeps the end of the post up off the concrete, which helps reduce the chance of moisture-related rot at the post end. That is one of those details that pays off later, because the connection point at the slab or footing is exactly where outdoor posts tend to take abuse.

The design is also practical from a jobsite standpoint. This is not just a decorative wrap or trim piece. It is designed to meet stringent building codes for seismic or high-wind events, and it is intended for real structural use in the right application. At the same time, the Mission Collection shape gives the exposed connection a cleaner finished look than a standard plain post base, which is why these are popular on pergolas and patio covers where the hardware stays visible.

Compatibility is important with this product. Simpson specifies the Outdoor Accents system approach, including use of the STN22 hex-head washer and SDWSDBB structural wood screw for the connector installation. Outdoor Accents side plates are also available under APBDSP if you are building out a matching project with the same hardware style. Fasteners are sold separately, so plan the whole connection package before you start the install.

This post base is best for contractors, deck builders, carpenters, and serious DIY users who want a structural connection that also looks intentional. It is a strong choice for pergolas, patio covers, and other top-supported outdoor structures anchored to concrete. It is not the right pick for an application that lacks top support, because Simpson states these post bases do not provide adequate resistance to prevent members from rotating about the base in unsupported installations such as fences or unbraced carports.

Keeps the Post Off the Concrete

The 1 inch standoff is one of the most useful features on this post base. It lifts the post end above the concrete surface, which helps manage moisture where outdoor posts usually fail first.

• 1 inch standoff helps reduce post-end rot from moisture
• Made for concrete-mounted post or column connections in outdoor work

Decorative Look Without Giving Up Structural Function

If the hardware is going to stay visible, appearance matters. The Outdoor Accents Mission Collection gives you a finished black hardware look that fits exposed outdoor structures better than standard galvanized-only connectors.

• ZMAX galvanization with black powder coat for exterior and treated-wood applications
• Mission Collection styling matches other Outdoor Accents hardware components

Made to Install Cleanly

The layout is designed to make install less fussy. Slots give you adjustment, and the fastener holes are slightly offset to help keep screws from crowding each other in the connection zone.

• Slotted for adjustability during alignment
• Slightly offset fastener holes help reduce fastener interference

Key Specifications

Nominal Post Size	6×6 rough
Material	12-gauge steel
Width (in.)	6 in.
Length (in.)	5 in.
Height (in.)	7-1/4 in.
Standoff	1 in.
Finish	ZMAX galvanization with black powder coat
Application	Decks, post-to-footings

Compatibility

Outdoor Accents Fasteners

Designed for use with the STN22 hex-head washer and SDWSDBB structural wood screw. Fasteners are sold separately.

Matching Hardware System

Outdoor Accents side plates are available as APBDSP for matching exposed hardware styling across the build.

Post Fit

This APB66R version is specifically for 6×6 rough lumber, not nominal 6×6 posts.

Built For

Deck Post-to-Footings Pergolas Patio Covers Top-Supported Outdoor Structures Carpentry Construction Remodeling Serious DIY / Hobbyist

Pro Tip

Double-check that your post is actually rough 6×6 before ordering this base. APB66R is the rough-lumber version, and using it on nominal stock can leave you with a loose-looking fit. Also, this style is meant for top-supported structures, not unsupported fence-style posts.

Tool Nut’s Take

Tool Nut’s Take

Simpson Strong-Tie Outdoor Accents Mission Collection ZMAX, Black Powder-Coated Post Base for 6×6 Rough (APB66R) gets the job done and looks right doing it

This is the one to buy when you need a real post-to-concrete connection for rough 6×6 material and you do not want the hardware to look like an afterthought.

• Who it’s for: Builders and homeowners putting up pergolas, patio covers, and other top-supported outdoor structures with exposed hardware.
• Why it stands out: You get 12-gauge steel, a moisture-managing 1 inch standoff, adjustability during install, and the black Outdoor Accents look in one connector.
• Worth knowing: This is a bare connector. Plan on buying the specified washers and structural screws separately, and make sure you are matching it to rough 6×6 posts, not nominal lumber.

Common Questions

• Is this post base for nominal 6×6 or rough 6×6 posts? It is for 6×6 rough posts. The APB66 model is for nominal 6×6 lumber, while APB66R is the rough-lumber version.
• Does this include the screws and washers needed for installation? No. Fasteners are sold separately, and Simpson specifies use of the STN22 hex-head washer and SDWSDBB structural wood screw with Outdoor Accents connectors.
• Can this be used for pergolas and patio covers? Yes. Simpson states these post bases are intended for outdoor projects such as pergolas, patio covers, and other top-supported structures.
• Is the post base adjustable during installation? Yes. The base is slotted for adjustability, which helps during alignment on the footing.
