Description

• Solid one-piece top flange allows for accurate and fast installation
• Installation prongs make setting the hanger quick and easy
• The double-shear nailing design distributes the load throughout two points on each joist, providing greater strength with fewer nails
• Seat width: 1-9/16 in.

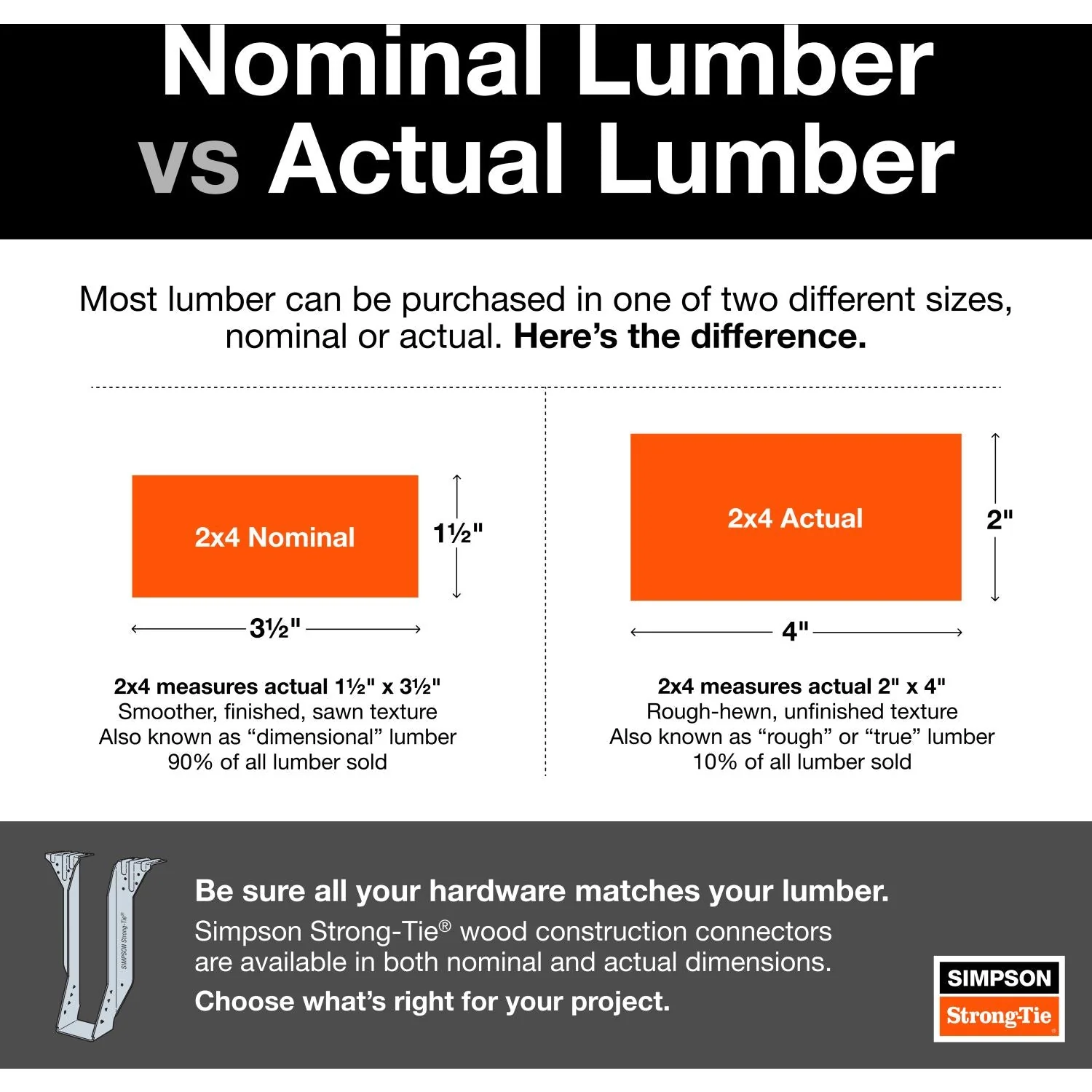

• Nominal joist size: 2×8
• Made from 20-gauge steel
• Galvanized (G90) for corrosion resistance

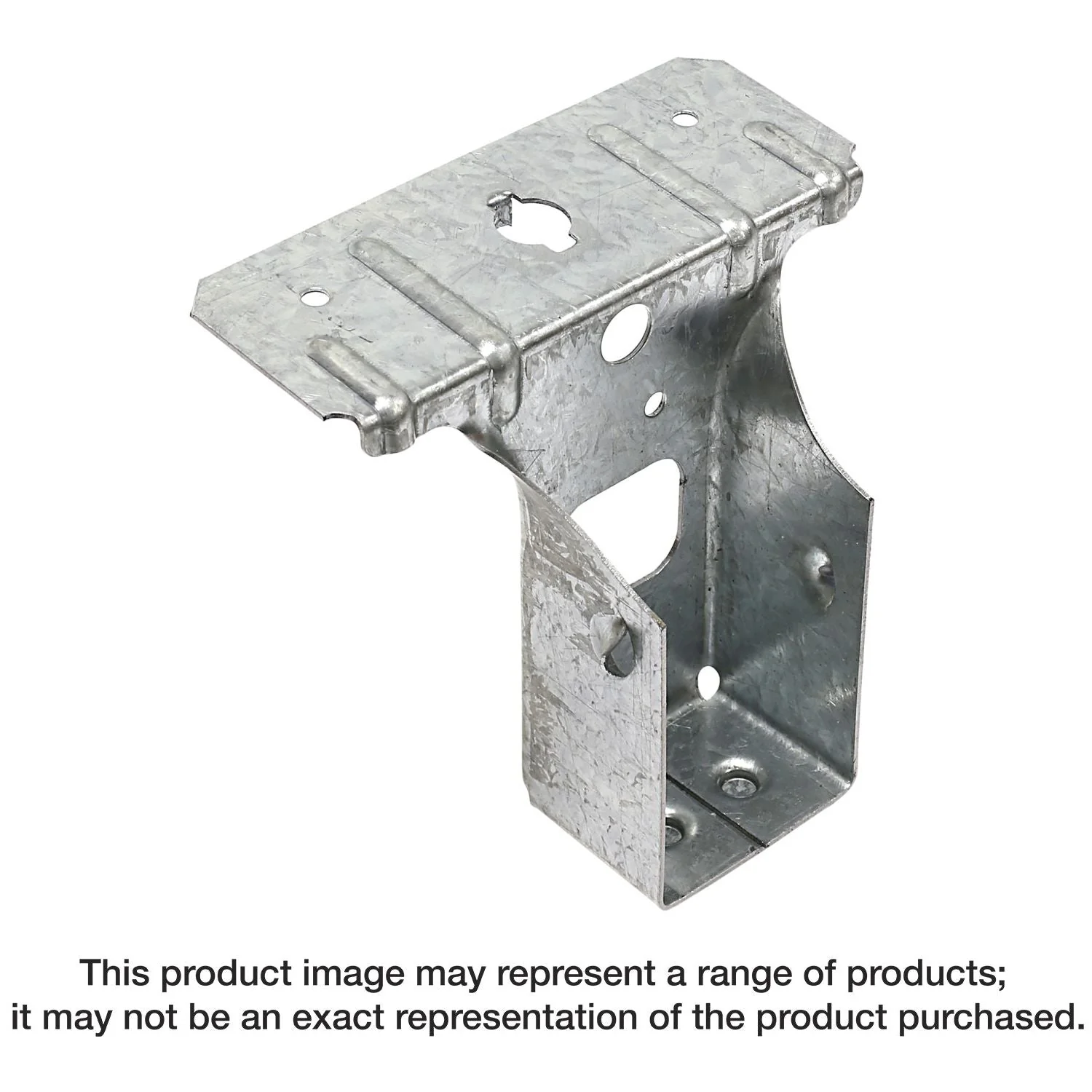

The Simpson Strong-Tie PFB top-flange hanger is for use in post-frame construction. It has dome-shaped joist nail holes that guide nails into the proper installation angle. The PFB features a folded seat that raises the 2x joist slightly above the seat radius to enable a tighter connection to the back of the hanger.

• Solid one-piece top flange allows for accurate and fast installation
• Installation prongs make setting the hanger quick and easy
• The double-shear nailing design distributes the load throughout two points on each joist, providing greater strength with fewer nails
• Seat width: 1-9/16 in.
• Nominal joist size: 2×8
• Made from 20-gauge steel
• Galvanized (G90) for corrosion resistance

Install With: (2) 0.148 in. x 3 in. nails in the top and (6) 0.148 in. x 3 in. nails in the joist OR (2) 0.148 in. x 1-1/2 in. nails in the top, (4) 0.148 in. x 1-1/2 in. nails in the face and (6) 0.148 in. x 1-1/2 in. nails in the joist
