Description

• Easier and stronger than toenailing or screw fastening
• Top flange designed to interlock when used in pairs so that rafters maintain correct alignment
• Use with rafter slopes up to 30°
• Min. rafter size: 2×6
• For a rafter-to-face connector, flatten the top flange into the face plane
• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

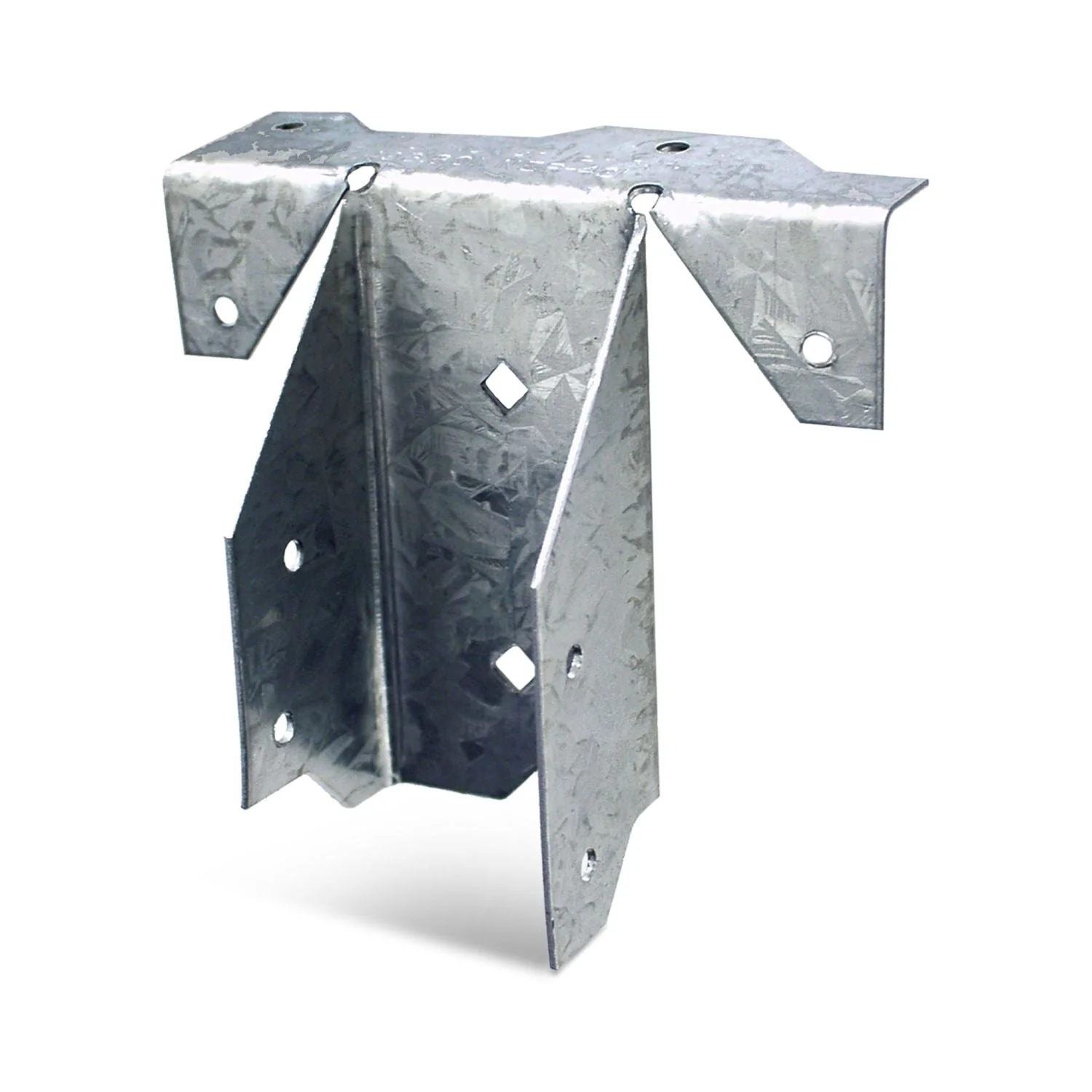

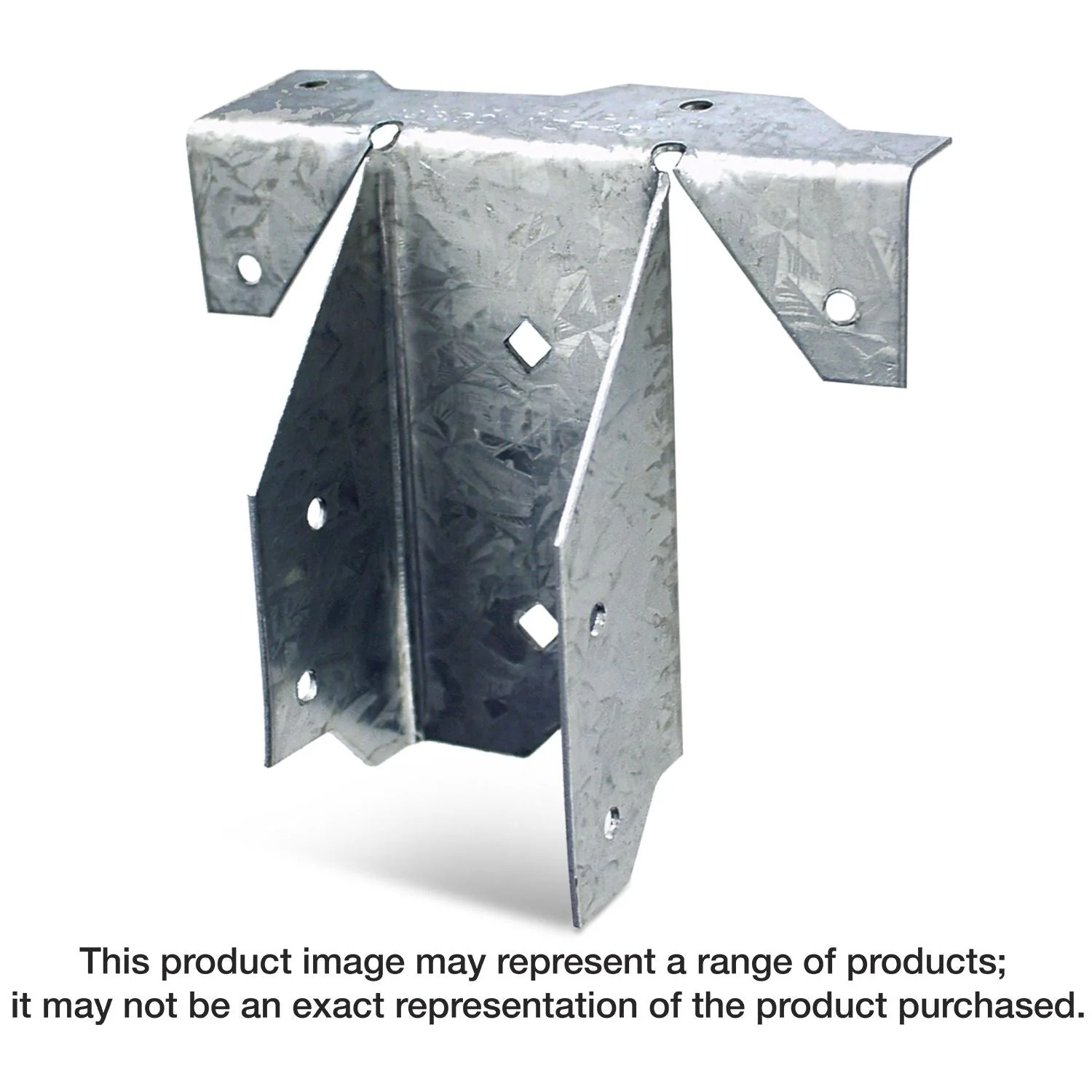

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The RR ridge rafter connector provides a connection between a rafter and the ridge of a roof.

• Easier and stronger than toenailing or screw fastening
• Top flange designed to interlock when used in pairs so that rafters maintain correct alignment
• Use with rafter slopes up to 30°
• Min. rafter size: 2×6
• For a rafter-to-face connector, flatten the top flange into the face plane
• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: Install with 10d x 1-1/2 in. nails or #9 x 1-1/2 in. Strong-Drive SD screws
