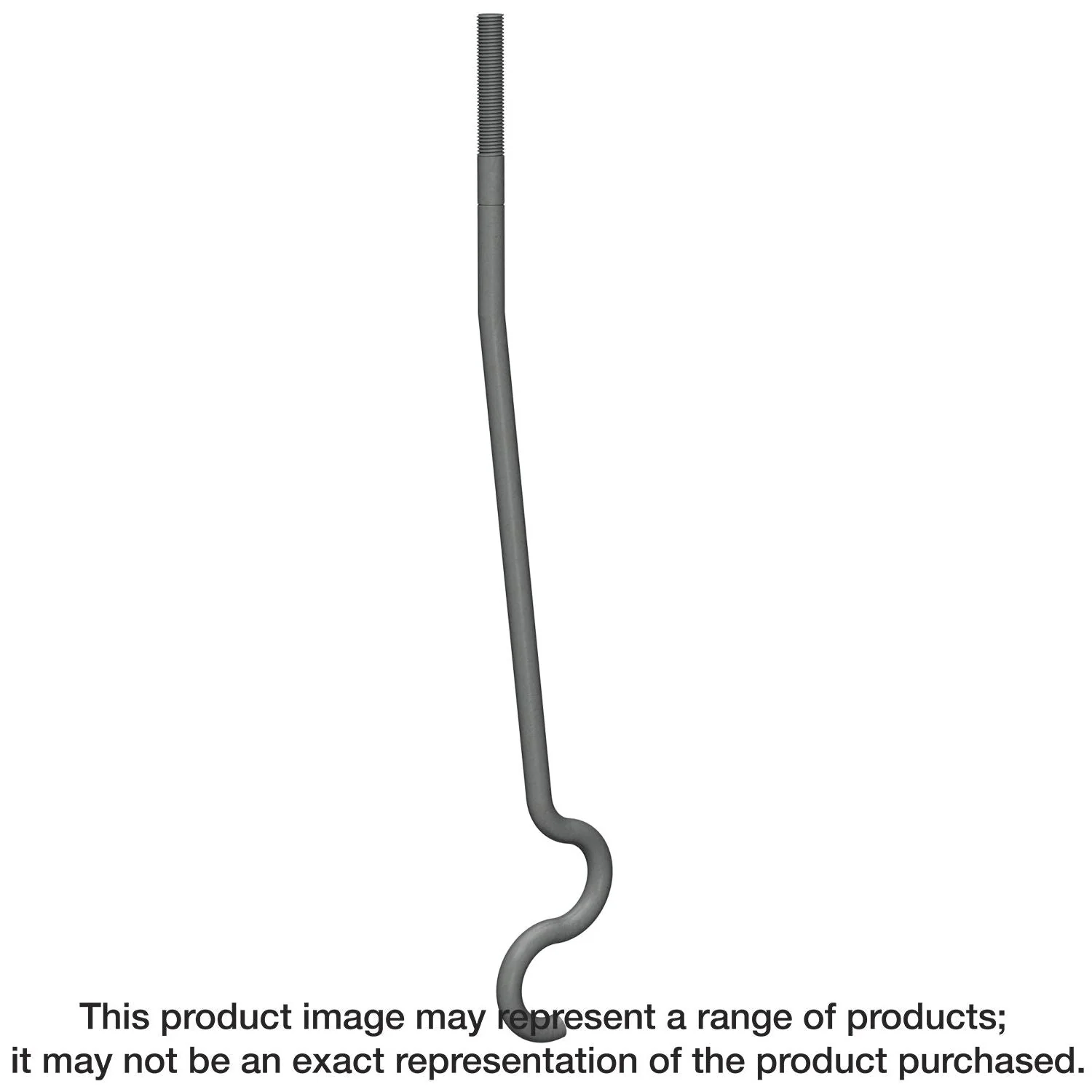

Simpson Strong-Tie SSTB28HDG SSTB 7/8-in. x 29-7/8-in. Hot-Dip Galvanized Anchor Bolt

Original price was: $51.99.Current price is: $13.00.

Identification on the bolt head showing embedment angle and model Offset angle reduces side bursting, and provides more concrete cover Rolled thread for higher tensile capacity Stamped embedment line aids installation SSTB is suitable for monolithic and two-pour concrete applications Diameter: 7/8 in. Length: 29-7/8 in. Material: ASTM F-1554, Grade 36 Hot-dip galvanization (HDG) offers…

Checkout

Description

  • Identification on the bolt head showing embedment angle and model
  • Offset angle reduces side bursting, and provides more concrete cover
  • Rolled thread for higher tensile capacity
  • Stamped embedment line aids installation
  • SSTB is suitable for monolithic and two-pour concrete applications
  • Diameter: 7/8 in.
  • Length: 29-7/8 in.
  • Material: ASTM F-1554, Grade 36
  • Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie Strong-Wall shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018 and 2021 IBC and IRC.

  • Identification on the bolt head showing embedment angle and model
  • Offset angle reduces side bursting, and provides more concrete cover
  • Rolled thread for higher tensile capacity
  • Stamped embedment line aids installation
  • SSTB is suitable for monolithic and two-pour concrete applications
  • Diameter: 7/8 in.
  • Length: 29-7/8 in.
  • Material: ASTM F-1554, Grade 36
  • Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

Install With: Nuts and washers for holdown attachment are not supplied with the SSTB; on HDG SSTB anchors, chase the threads to use standard nuts or couplers
