Description

Key Features

Built for Corrosion

The stainless steel build makes this hanger a practical choice where corrosion resistance matters, including exterior framing and other harsh environments.

Double-Shear Strength

Simpson Strong-Tie’s double-shear nailing design spreads load through two points on each joist nail, which helps deliver rated strength while using fewer nails.

Fast Face-Mount Install

This face-mount joist hanger uses speed prongs to hold position during setup, which makes alignment easier and speeds up installation on the job.

Overview

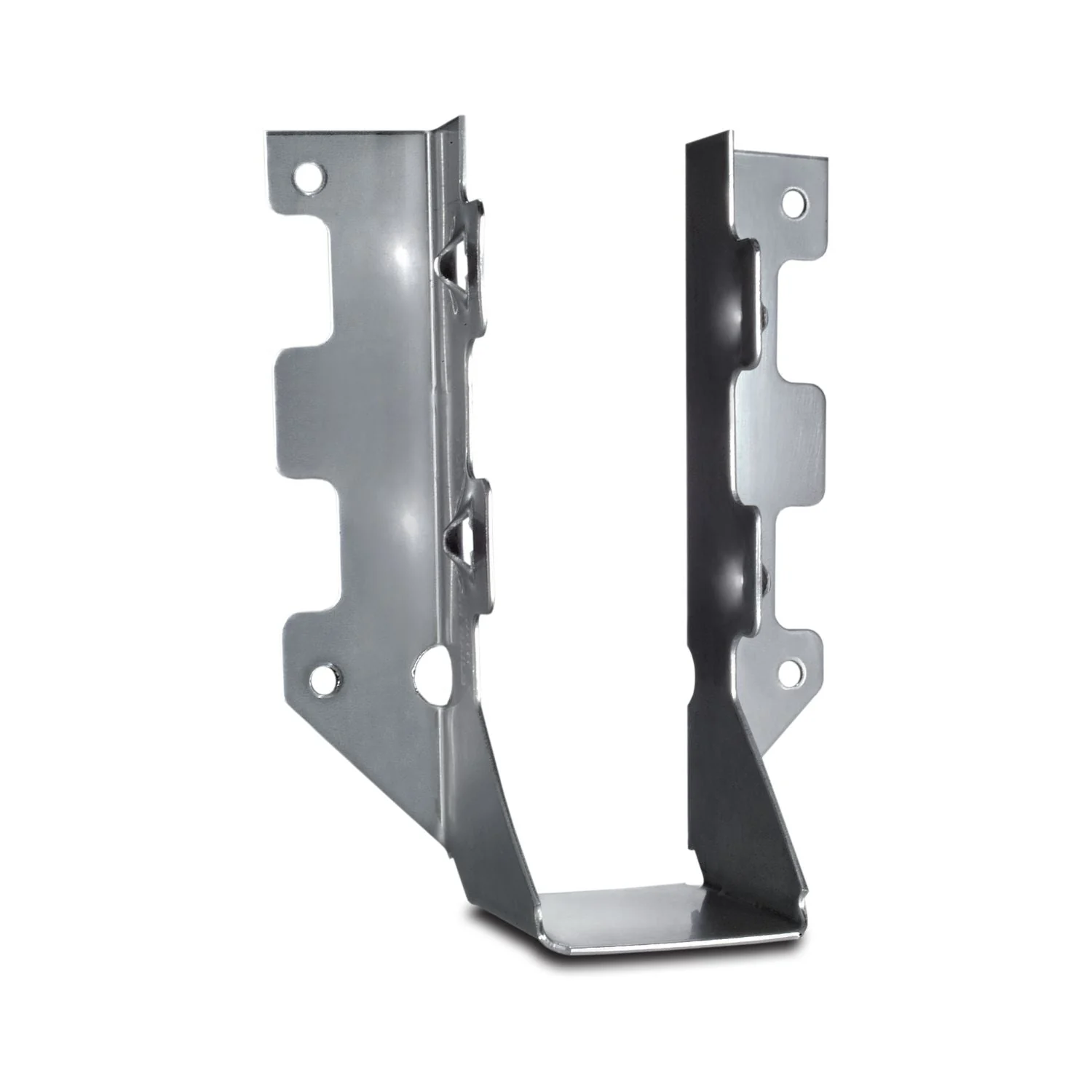

The Simpson Strong-Tie LUS26SS Stainless-Steel Face-Mount Joist Hanger is a corrosion-resistant framing connector designed to support a wood joist from the face of a header or beam. This is a face-mount joist hanger designed for wood-to-wood framing connections. Model Number: LUS26SS. If you are framing a deck, porch, or exterior structure and need a rated connector for a nominal 2×6 application, this is the kind of hardware you use when you want the connection handled correctly instead of hoping nails alone do the job.

What matters here is not just that it is stainless steel, but why that matters. Simpson lists this model as a stainless steel version of the LUS series, and Lowe’s identifies it as suitable for high or severe corrosion resistance. That makes the LUS26SS a better fit for outdoor framing and other environments where standard galvanized hardware may not be the right long-term choice. If the project is exposed to weather, moisture, or treated lumber conditions where corrosion is a real concern, the material choice is doing real work for you.

The LUS series is widely used because it keeps installation straightforward without giving up rated performance. Simpson calls out the speed prongs for temporary positioning, which sounds small until you are holding lumber in place and trying to keep the hanger aligned. The patented double-shear nailing design is the bigger deal. It distributes the load through two points on each joist nail, which helps increase strength while reducing the total number of nails needed compared to more basic hanger layouts. In practical terms, that means faster fastening and a cleaner install sequence.

This particular LUS26SS model is made from 18-gauge steel and uses a face-mount layout for a single-member wood-to-wood connection. The published dimensions for this model are 1 9/16 inches wide, 4 3/4 inches high, and 1 3/4 inches seat depth from Simpson Strong-Tie’s table. Lowe’s also lists an actual depth of 2.046 inches and actual width of 3.655 inches, which reflects overall formed dimensions rather than the engineering table callouts. Either way, the important point for the buyer is simple: this is a compact hanger sized for nominal 2×6 framing and intended to mount directly to the supporting member.

Fastener details matter with structural connectors, and Simpson is clear about that. The LUS26SS load table lists 4 stainless 10d nails into the header and 4 stainless 10d nails into the joist for the published allowable loads. Lowe’s also notes installation with 10d common nails, while Simpson’s installation guidance says to use all specified fasteners and to drive joist nails at an angle through the joist or truss into the header to achieve table loads. That is not filler language. With connectors like this, the hardware only performs as rated when you follow the specified fastening pattern.

On rated performance, Simpson’s load table shows allowable loads for the LUS26SS that vary by wood species group. For DF/SP, the table lists 915 lb uplift, 865 lb floor, 990 lb snow, and 1070 lb roof. For SPF/HF, the table lists 805 lb uplift, 740 lb floor, 845 lb snow, and 915 lb roof. The takeaway is that this is not generic sheet metal. It is a tested, load-rated, code-compliant connector, and the published loads give builders something concrete to work from when selecting hardware for the framing plan.

Design-wise, the LUS series is meant to be economical and easy to install for common lumber sizes. Simpson also notes that these hangers cannot be modified. That is worth saying plainly: if the framing layout needs skew, slope, or field bending, this is not the hanger to improvise with. Buy the right connector for the geometry instead of trying to make this one do a job it was not designed to do.

Who should buy it? This hanger makes the most sense for deck builders, remodelers, framers, and serious DIY users doing exterior or corrosion-sensitive wood framing. If you need a stainless face-mount hanger for a nominal 2×6 connection and you want a proven connector from a brand builders already trust, the Simpson Strong-Tie LUS26SS is the straightforward answer.

See the Connection Clearly

This style of hanger is all about putting load where it belongs. By supporting the member from underneath and fastening to the face of the carrying member, it creates a cleaner, stronger framing connection than trying to piece things together with loose nails alone.

• Face-mount design for wood-to-wood connections
• Tested, load rated, and code compliant per Simpson Strong-Tie

Faster Setup, Less Fuss

The LUS series is popular because it installs without drama. Speed prongs help hold the connector in place while you get started, and the angled joist nailing pattern makes the hanger easier to fasten when access is tight.

• Speed prongs temporarily position and secure the connector
• Angled joist nailing helps in tighter framing spaces

Made for Harsh Conditions

Not every framing connector belongs outdoors. The stainless construction is the real reason to choose this version when the job calls for better corrosion resistance and longer-term durability in exposed conditions.

• Stainless steel construction
• Suitable where high or severe corrosion resistance is needed

Key Specifications

Type	Face-mount joist hanger
Material	Stainless steel
Common Size	2 in x 6 in nominal
Gauge	18 ga
Width (W)	1 9/16 in
Height (H)	4 3/4 in
Seat Depth (B)	1 3/4 in
DF/SP Roof Load	1070 lb allowable load

Compatibility

Materials Connected

Designed for wood-to-wood framing connections.

Fasteners

Published load data for the LUS26SS uses 4 stainless 10d nails into the header and 4 stainless 10d nails into the joist.

Framing Size

Sized for nominal 2×6 applications in the LUS series.

Built For

Deck Framing Exterior Wood Construction General Contracting Remodeling DIY / Hobbyist Corrosion-Prone Locations

Pro Tip

With the Simpson Strong-Tie LUS26SS Stainless-Steel Face-Mount Joist Hanger, use every specified fastener and keep the joist nails driven at the required angle if you want the published load values. Also, do not bend or remove tabs. This hanger is not meant to be field-modified.

Warranty & Support

Limited lifetime warranty.

Tool Nut’s Take

Tool Nut’s Take

Simpson Strong-Tie LUS26SS Stainless-Steel Face-Mount Joist Hanger for exterior framing that needs to hold up

This is the kind of connector you buy when you care about using the right hardware the first time, especially on outdoor wood framing where corrosion can ruin cheaper choices.

• Who it’s for: Builders, deck crews, remodelers, and serious DIY users working on wood framing that needs a stainless face-mount hanger for a nominal 2×6 connection.
• Why it stands out: The double-shear nailing design, speed prongs, and published load ratings make it faster to install than old-school hangers while still giving you real engineering behind the connection.
• Worth knowing: This is not a bend-it-to-fit part. Follow the specified fasteners and installation pattern, and if your framing geometry is different, step up to the correct connector instead of forcing this one.

Common Questions

• What kind of connector is this? It is a stainless steel face-mount joist hanger for wood-to-wood framing connections.
• Can this hanger be modified in the field? No. Simpson Strong-Tie states that LUS hangers cannot be modified.
• What fasteners does the load table call for on LUS26SS? The published load table lists 4 stainless 10d nails into the header and 4 stainless 10d nails into the joist.
• Are fasteners included? No. Lowe’s lists fasteners included as no.
