Description

Key Features

Structural Nail Replacement

Designed and load-rated to replace 16d, 10d, and 8d nails in framing work. You get stronger holding power and better pull-out resistance in wood-to-wood connections.

Fast Starts, Less Effort

The SawTooth Type-17 point and serrated threads help the screw start quickly and drive with less torque. That means less fighting the fastener and less need for predrilling in most applications.

Built for Indoor or Outdoor Use

Quik Guard coating helps protect the Simpson Strong-Tie Strong-Drive SDWS FRAMING Screw in interior and exterior projects. Good choice when the same screw needs to cover framing, remodeling, and general wood fastening.

Overview

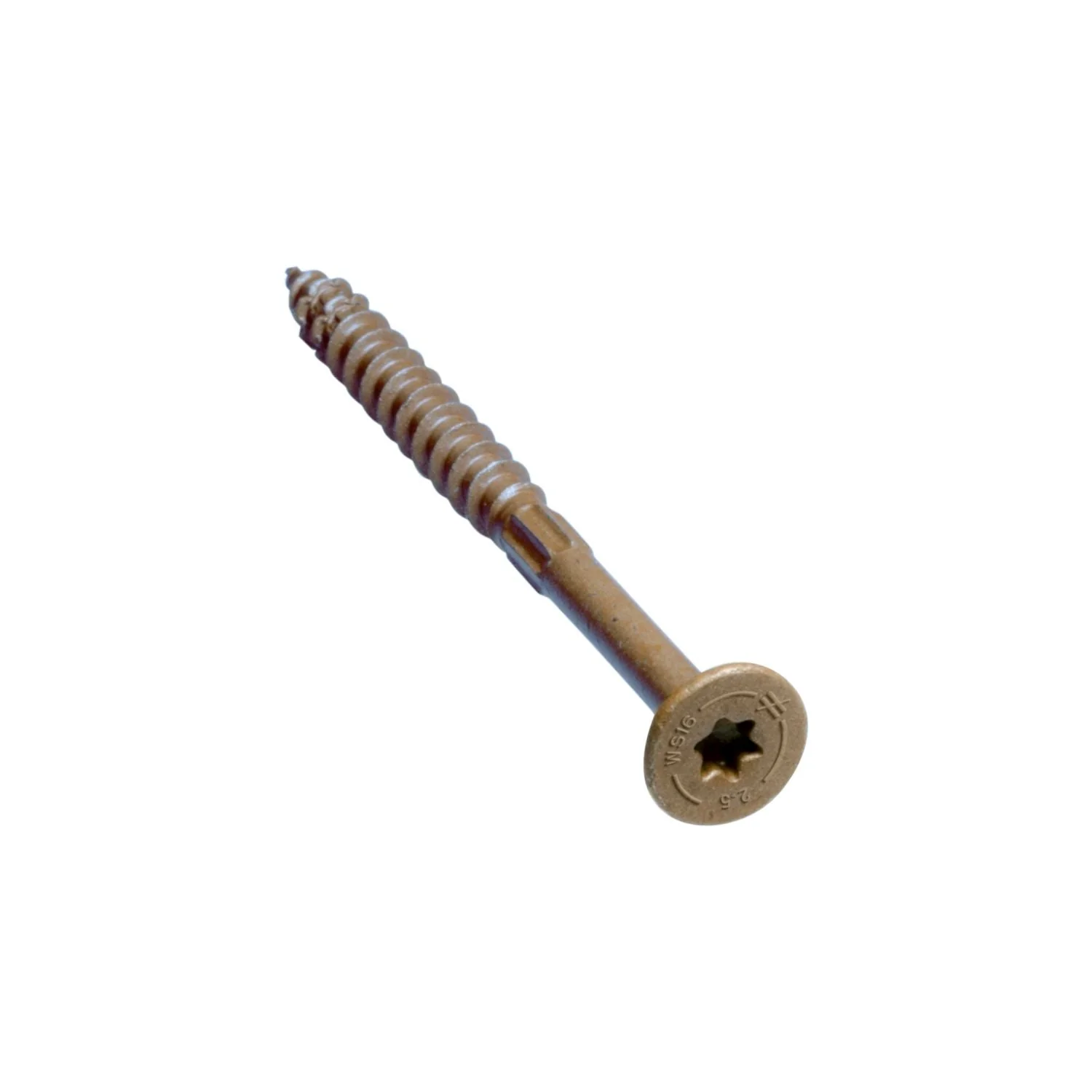

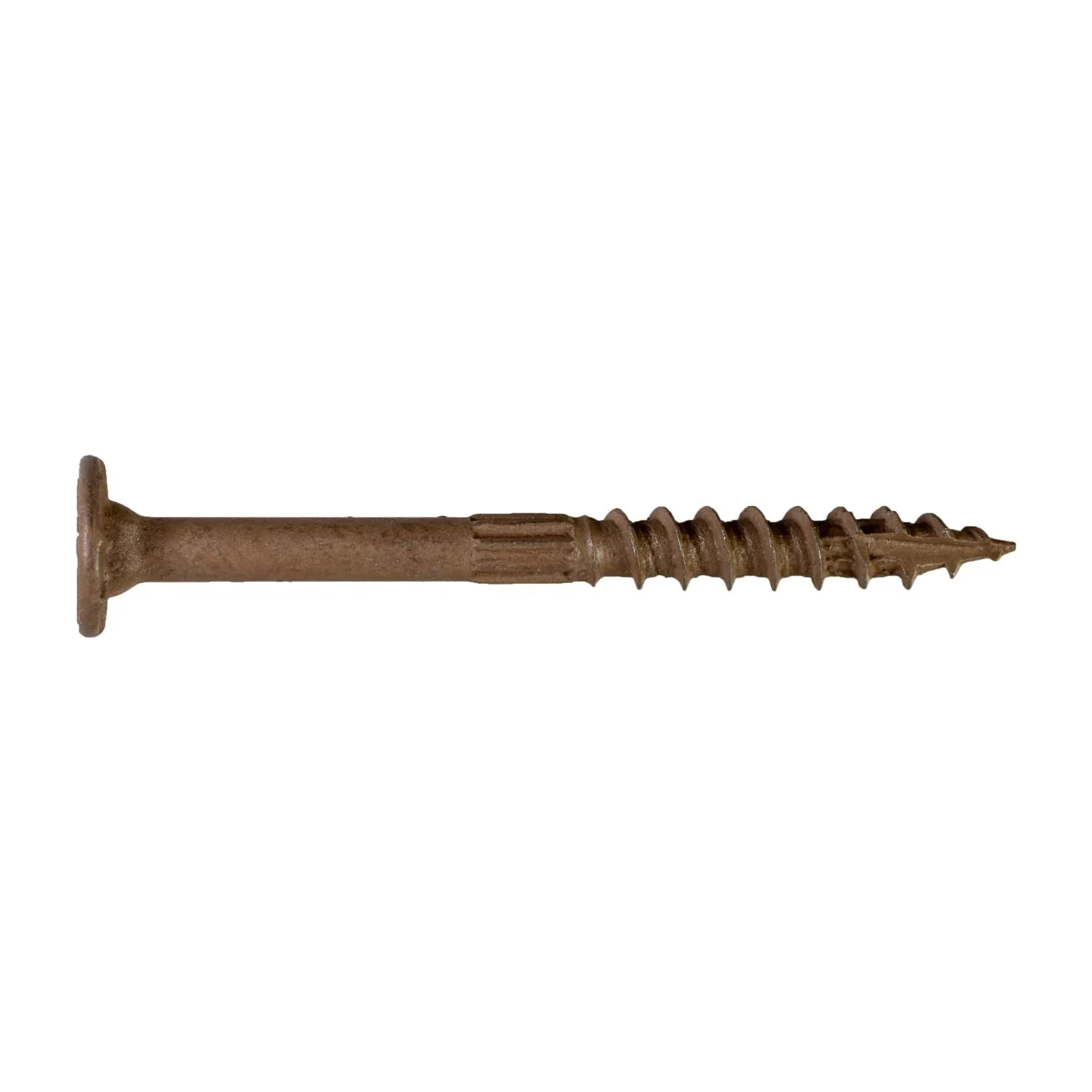

The Simpson Strong-Tie Strong-Drive SDWS FRAMING Screw is a code-listed structural wood screw built for wood-to-wood fastening in framing, remodeling, and general indoor or outdoor construction work. This is a framing screw designed for structural wood fastening. Model SDWS16212Q is the 0.160 inch x 2-1/2 inch version with a low profile head, T25 6-lobe drive, SawTooth Type-17 point, Quik Guard coating, and a 1,000-pack quantity.

What matters most with this screw is that it is designed and load-rated as a replacement for common framing nails, including 16d, 10d, and 8d nails. If you want more holding power and better pull-out resistance than a nail-only connection, this is the kind of fastener you reach for. For framers, remodelers, and serious DIY users, that means a more secure wood connection without changing over to a bulky specialty fastener.

The business end of the screw is set up to save time. The SawTooth Type-17 point helps it bite fast and start clean, while the serrated threads reduce installation torque. In plain terms, the screw goes in easier and usually does not need predrilling in typical wood applications. That matters when you are driving a lot of fasteners in framing lumber and do not want to waste time fighting starts or leaning on the drill harder than you should.

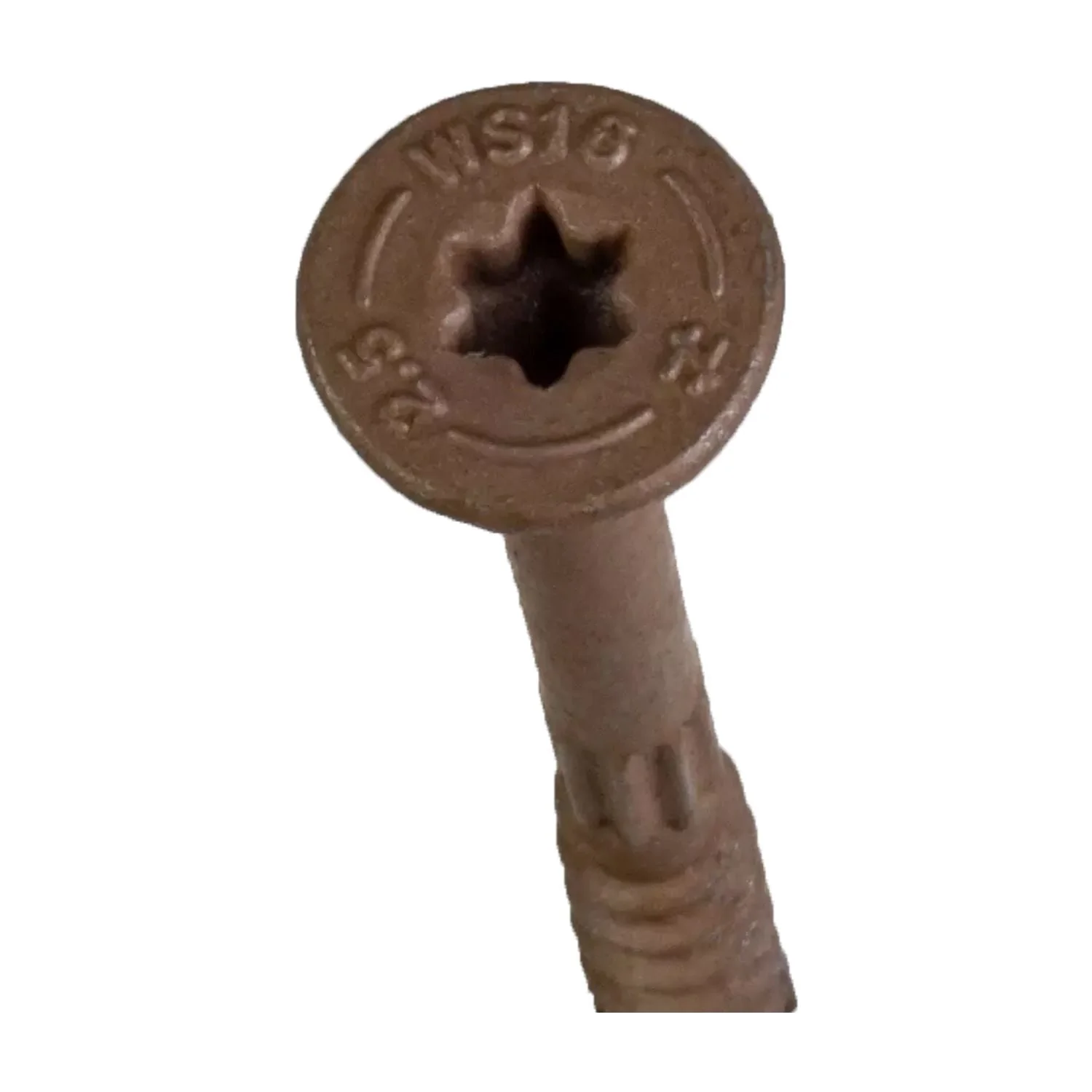

The head and drive setup are just as practical. The washer-style low profile head with underhead box nibs gives the screw more bearing surface in structural applications and helps it countersink neatly. The T25 6-lobe drive gives more positive bit engagement than a basic recess, so the driver bit stays planted better and bit life is improved. Less cam-out means fewer stripped heads and less aggravation when you are working overhead, in awkward corners, or pushing through repeated fastening tasks.

For jobsite conditions, Quik Guard coating is a big part of the value. This coating is intended for indoor and outdoor applications, so the same screw can cover interior framing, exterior projects, and general remodeling without forcing you to split your inventory between separate fasteners. If you are building decks, outdoor structures, or exterior wood assemblies where coated fasteners matter, that coating is not just a line on a spec sheet. It is what helps the screw stay suited for that environment.

On the spec side, this SDWS16212Q version measures 2-1/2 inches long with a 0.160 inch shank diameter, 0.450 inch head diameter, 8-1/2 threads per inch, and a 1-1/8 inch thread length. Those numbers tell you where it fits best: structural wood-to-wood fastening where you want quick starts, solid clamp-down, and a head that bears well without the bulk of a larger connector-style fastener. The 2-1/2 inch length is a practical framing size for a wide range of common connections.

This screw also fits a straightforward driver setup. It uses a T25 6-lobe drive, and the product listing notes that a driver bit is included. That is helpful on the first box because you can get right to work without hunting down the correct bit. The 6-lobe interface is also a better match for repeated driving than a recess style that tends to slip under load.

Who should buy it? This is a strong fit for contractors, framers, remodelers, deck builders, and serious homeowners doing structural wood projects. If your work includes fastening dimensional lumber, engineered wood, or general wood framing where code-listed structural screws make more sense than nails, the Simpson Strong-Tie Strong-Drive SDWS FRAMING Screw is a practical buy. If you only need a handful of screws for light-duty trim work, this 1,000-pack is probably more than you need. But if you burn through structural fasteners regularly, this box makes sense fast.

Drive Structural Wood Fastening Faster

This framing screw is built to speed up wood-to-wood connections without giving up structural performance. It is made for users who want the holding power of a structural screw with a drive experience that feels efficient on the job.

• Designed and load-rated to replace 16d, 10d, and 8d nails in framing applications
• Serrated threads reduce installation torque for easier driving

Start Clean Without Predrilling in Most Wood

The point geometry is there for one reason: get the screw started quickly and keep the install moving. That matters when you are driving a lot of fasteners into framing lumber and want to avoid constant pilot holes.

• SawTooth Type-17 point helps the screw bite fast
• Most typical applications do not require predrilling

Hold Tight and Countersink Neatly

The low profile washer head is a useful detail here. It gives the screw increased bearing in structural applications while still pulling down clean for a more finished, controlled seat in the wood.

• 0.450 inch head diameter provides increased bearing surface
• Underhead box nibs help deliver clean, easy countersinking

What’s in the Box

• (1) Box of 1,000 Simpson Strong-Tie SDWS16212Q framing screws
• (1) T25 driver bit, model BIT25T-2-R2

Key Specifications

Application	Fastening Wood-to-Wood
Fastener Type	Hand-Drive Screw
Length	2-1/2 in.
Head Diameter	0.450 in.
Shank Diameter	0.160 in.
Drive Type	T25 6-Lobe
Thread Type	Serrated Threads
Thread Length	1-1/8 in.
Point Type	SawTooth Type-17 Point
Threads Per Inch	8-1/2 TPI
Coating	Quik Guard Coating
Pack Quantity	1,000

Compatibility

Driver Interface

Uses a T25 6-lobe drive. Best paired with the included BIT25T-2-R2 driver bit or another matching T25 6-lobe bit.

Material Fit

Designed for wood-to-wood and engineered-wood applications, including framing and remodeling work.

Built For

Framing Construction Remodeling Deck Building Woodworking General Contracting Indoor Projects Outdoor Projects

Pro Tip

Use the included T25 bit and stop as soon as the low profile head seats flush and the box nibs do their job. If you keep hammering on the trigger after that, you are just wearing the bit and overdriving the connection.

Tool Nut’s Take

Tool Nut’s Take

Simpson Strong-Tie Strong-Drive SDWS FRAMING Screw gets the structural job done without the usual screw drama

This is the kind of framing screw you buy when you want structural holding power, fast starts, and fewer stripped-out headaches.

• Who it’s for: Framers, remodelers, deck builders, and serious DIY users doing real wood-to-wood structural fastening.
• Why it stands out: It combines code-listed nail-replacement performance with a smart drive setup, a fast-start Type-17 point, and coating for indoor or outdoor use.
• Worth knowing: This is a 1,000-pack, so it makes the most sense for users who go through structural screws regularly rather than somebody doing one small repair.

Common Questions

• What is this screw designed for? It is designed for wood-to-wood and engineered-wood fastening in framing, remodeling, and indoor or outdoor projects.
• Does this screw need predrilling? The SawTooth Type-17 point is designed for quick starts and eliminates the need for predrilling in most applications.
• What drive size does it use? This model uses a T25 6-lobe drive.
• Can it be used as a framing nail replacement? Yes. The SDWS framing screw is designed and load-rated for replacing 16d, 10d, and 8d nails in framing applications.
