Description

Key Features

Green Cross Lines + Plumb Dots

The Stabila Cross line plus plumb dot laser LAX 320 G gives you square reference lines plus up and down plumb points, so layout stays fast and consistent from floor to ceiling.

Self-Leveling Confidence

Self-levels within a ±4° range, with level accuracy rated at ±1/8 in at 30 ft, so you are not chasing a line that is drifting or out of true.

Jobsite-Ready Protection

IP54 rating and a screw-in optics housing help the laser hold up to dust and splashes while protecting the optics when you are moving between tasks.

Overview

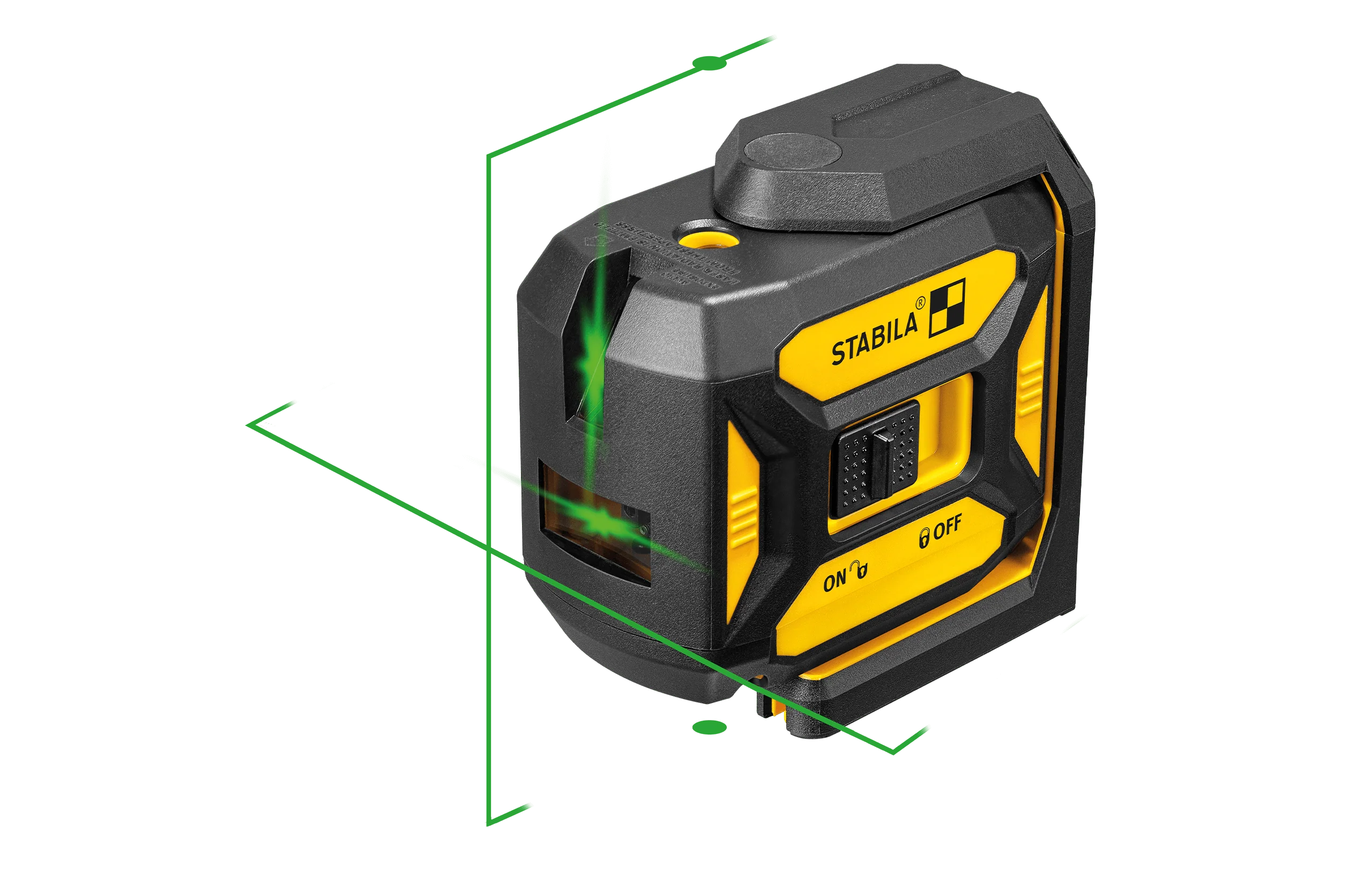

The Stabila Cross line plus plumb dot laser LAX 320 G (Cat. No. 03190) is a green-beam cross line laser with plumb points for layout and alignment work. This is a cross line and plumb dot laser designed for leveling, squaring, and transferring points for interior build-out and finish work.

You get a horizontal and vertical cross for fast layout, plus a plumb point up and a plumb point down for transferring reference from floor to ceiling. Stabila rates the level accuracy at ±1/8 in at 30 ft, with plumb-point accuracy rated at ±3/16 in at 30 ft (up) and ±1/4 in at 50 ft (down), which is the kind of spec that matters when you are lining up multiple runs of track, cabinets, or wall components and need everything to land where it should.

The self-leveling system covers a ±4° range, so on most real-world surfaces you can set it down, mount it up, and get to work without fiddling. It is a Class 2 laser with output listed at < 1 mW and wavelength 510 to 530 nm, which is where the green visibility comes from.

For day-to-day jobsite practicality, the housing is rated IP54 for dust and splashing water resistance, and Stabila calls out a screw-in optics housing to protect the optics when parked or transported. Power is simple: it runs on (3) AA 1.5V batteries, and operating life is listed at 20 hours.

Mounting flexibility is a big part of what makes this kit usable. You get a 1/4 in tripod connection, plus the included laser base and wall bracket for getting the line where you need it without stacking shims or improvising mounts.

If you are doing interior construction, layout, remodeling, or finish work and want a compact green laser that handles both lines and plumb transfer, this kit is aimed right at you. It is a strong fit for contractors who move room-to-room and want a quick setup that stays accurate.

Fast Layout for Interior Work

When you are setting trim lines, aligning rails, or keeping multiple marks in the same plane, a bright green reference line keeps you moving and reduces rework.

• Leveling accuracy: ±1/8 in @ 30 ft
• Self-leveling range: ±4°

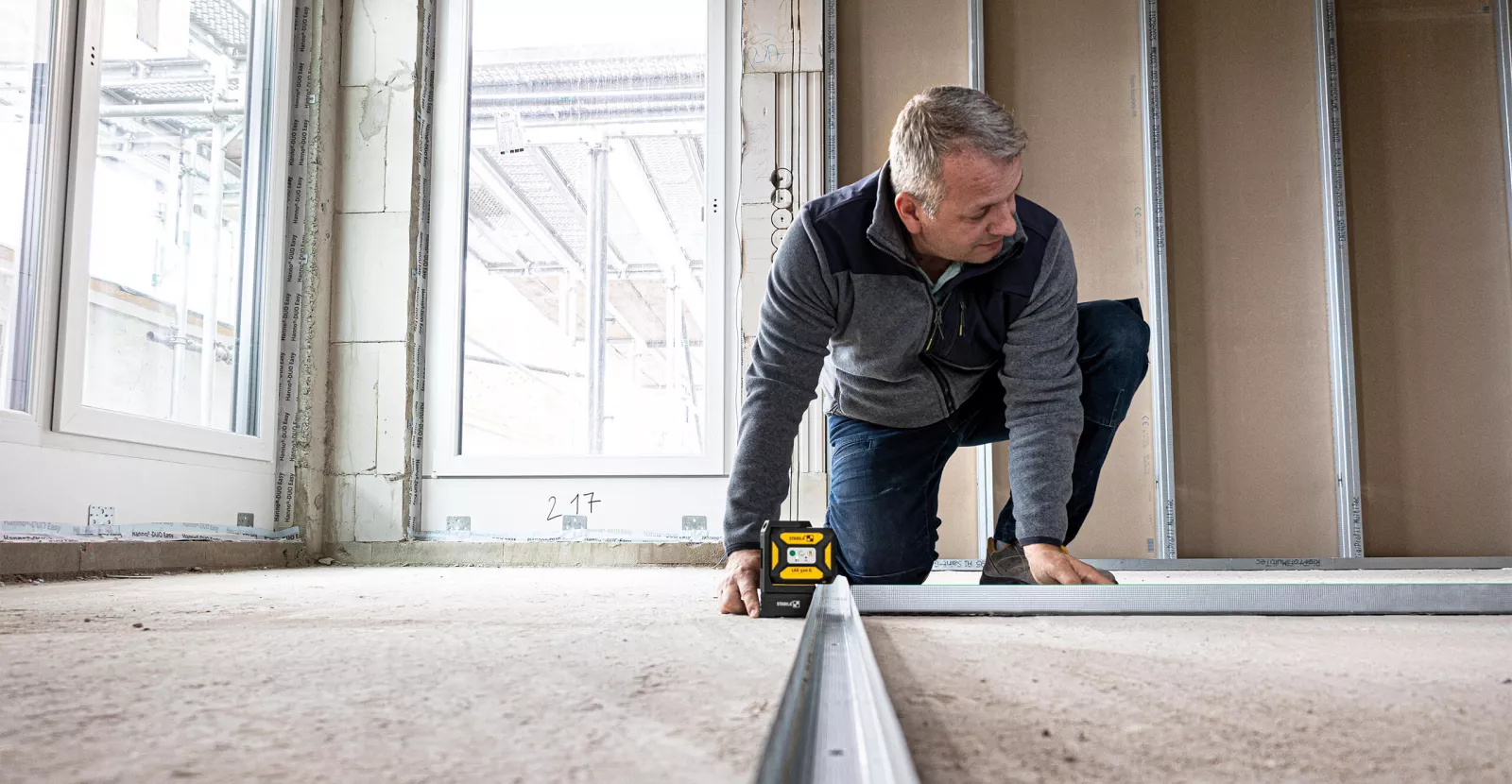

Transfer Plumb Points Floor to Ceiling

The plumb dots are what separate this from a basic cross-line laser, especially when you need to carry layout up a wall, around openings, or between floors.

• Plumb accuracy (up): ±3/16 in @ 30 ft
• Plumb accuracy (down): ±1/4 in @ 50 ft

Mount It Where You Need It

Good mounting options save time because you can place the laser at the right height and keep it stable. This kit supports tripod mounting and magnetic placement through the base and bracket system.

• Tripod connection: 1/4 in
• Included laser base and wall bracket for flexible positioning

What’s in the Box

• (1) Cross line plus plumb dot laser LAX 320 G
• (1) Laser base SLB 320
• (1) Wall bracket
• (1) Target plate
• (1) Belt pouch
• (3) AA 1.5 V batteries

Key Specifications

Laser Class	Class 2
Output	< 1 mW
Laser Wavelength	510 to 530 nm
Self-Leveling Range	±4°
Leveling Accuracy	±1/8 in @ 30 ft
Plumb Accuracy (Up)	±3/16 in @ 30 ft
Plumb Accuracy (Down)	±1/4 in @ 50 ft
Operating Life	20 h
Protection Rating	IP54
Tripod Connection	1/4 in
Weight	2.4 lbs

Compatibility

Tripods

Standard 1/4 in tripod thread.

Batteries

Runs on (3) AA 1.5 V batteries.

Built For

Interior Construction Remodeling Layout and Alignment Plumb Point Transfer Wall and Ceiling Layout

Pro Tip

If you are tossing the laser in and out of a pouch all day, use the screw-in optics protection when you park it. It helps keep the windows clean, which keeps your lines sharp and easier to read.

Warranty & Support

2-year limited warranty.

Tool Nut’s Take

Tool Nut’s Take

Stabila Cross line plus plumb dot laser LAX 320 G: compact, accurate, and set up for real layout work

If you want one green laser that handles both cross-line layout and true plumb transfer, this kit covers a lot of day-to-day interior tasks without overcomplicating things.

• Who it’s for: Remodelers, interior contractors, and finish crews doing consistent layout and alignment.
• Why it stands out: Cross lines plus plumb dots, with strong accuracy specs and practical mounting options.
• Worth knowing: It runs on AA batteries and includes the base and wall bracket, so you can mount it without buying extra right away.

Common Questions

• Is this laser self-leveling? Yes, it self-levels within a ±4° range.
• What tripod thread does it use? It has a 1/4 in tripod connection.
• What is the rated accuracy? Level accuracy is ±1/8 in at 30 ft; plumb accuracy is ±3/16 in at 30 ft (up) and ±1/4 in at 50 ft (down).
