Description

Key Features

Long-Range Accuracy

Measures from 0.16 ft to 660 ft with accuracy rated at ± 1 mm. That gives you dependable layout and takeoff numbers whether you are working inside a finished room or shooting long distances on a jobsite.

See the Target

The high-resolution camera, digital target locator, and 4x zoom help you aim the laser distance measurer precisely in bright conditions and over longer spans. Less guessing means fewer bad reads.

Fast Digital Workflow

Bluetooth 5.0 sends measurements straight to apps, tablets, or Excel files. If you document work, build estimates, or create as-builts, that saves time and cuts transcription mistakes.

Overview

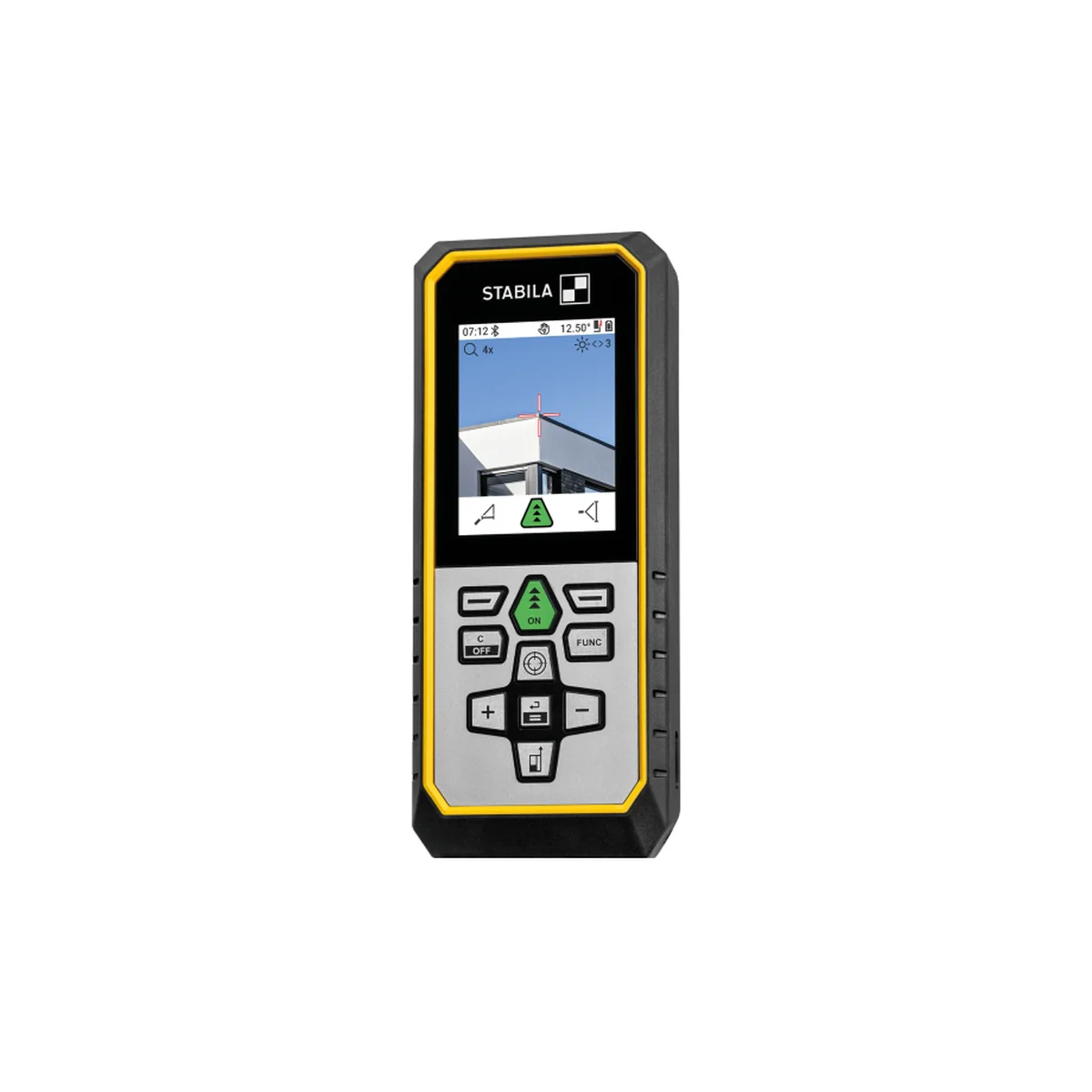

The Stabila LD 530 BT 3.7V Battery Laser Distance Measurer with Bluetooth is a high-end measuring tool built for contractors, estimators, and layout pros who need dependable numbers at short and long range. This is a laser distance measurer designed for indoor and outdoor distance measurement, layout, and digital job documentation. Model Number: 06530. If your work depends on getting exact measurements without walking every span with a tape, this tool is built for that job.

Its measurement range runs from 0.16 ft to 660 ft, and it is rated for ± 1 mm accuracy under ISO 16331-1. That matters because this is not just a room-measuring gadget for punch lists. It is a serious laser measuring tool for long hallways, exterior checks, elevation work, and fast quantity takeoffs where a bad reading can throw off material counts or layout marks.

What separates this model from a basic laser distance measurer is the aiming system. The high-resolution camera, digital target locator, and 4x zoom make it easier to put the beam exactly where you want it, even when you are dealing with bright light or longer distances. On outdoor work or in big open interiors, that can be the difference between a first-shot reading and wasting time trying to pick up the target point.

Stabila also added gesture control, which is more useful than it sounds. On long shots, touching the tool can slightly move your aim right when you trigger the measurement. Being able to activate a reading without physically pressing the unit helps keep the point steady and improves repeatability when precision counts.

This model is also set up for more than simple point-to-point measuring. It includes 17 measuring functions, along with a ± 180° inclination sensor, so it can handle area, volume, angle, indirect height, and indirect distance work. For remodelers, concrete crews, interior buildout teams, and anyone documenting existing conditions, that means fewer workarounds and less switching between tools or notebooks.

On the digital side, Bluetooth 5.0 is a real selling point. Measured values can be transferred directly to smartphones, tablets, computers, apps, or Excel files. With the STABILA Measures II app and SMART SKETCH function, the tool supports faster documentation and sketch creation. If you price jobs, create reports, or hand off measurements to office staff, this cuts down on manual entry and the mistakes that come with it.

Jobsite practicality is solid too. The LD 530 BT carries an IP54 protection rating for dust and splash resistance, includes data storage, and runs on an integrated 3.7V Li-ion battery rated for up to 5,000 measurements. It also has a 1/4 inch tripod connection, which is worth paying attention to if you regularly take long-distance readings and want a more stable setup.

Who should buy it? If you are a general contractor, concrete pro, commercial interior crew, survey-adjacent layout user, or serious remodeler who needs long-range measuring with digital documentation, this tool makes sense. If all you need is occasional room dimensions at short range, it is more tool than you need. But if accurate measuring, outdoor use, and clean digital records are part of your workflow, this Stabila earns its keep.

At a Glance

660 ft

Max Measuring Range

± 1 mm

Accuracy

17

Measuring Functions

5,000

Measurements Per Charge

Measure Long Distances With Confidence

This is where the LD 530 BT separates itself from entry-level measuring tools. It is built to give you usable long-range measurements on real jobs, not just quick checks in small rooms.

• Measures from 0.16 ft to 660 ft for short detail work and long-span layout
• ISO 16331-1 certified with ± 1 mm accuracy for dependable results
• Suitable for indoor and outdoor measurement work

Built for Digital Documentation

If measurements need to end up in a report, sketch, or spreadsheet, this tool saves a lot of back-and-forth. It is made for crews that want the field number to move straight into the digital file.

• Bluetooth 5.0 transfers measured values to smartphones, tablets, computers, and Excel files
• Works with the STABILA Measures II app and SMART SKETCH function
• Storage option helps keep measurements organized while you work

Stable Setup for Precise Shots

Long-distance readings are easier when the tool stays planted. The built-in tripod interface and touch-free triggering help reduce small movements that can throw off aim.

• 1/4 inch tripod connection supports more stable positioning
• Gesture control triggers measurements without touching the unit
• Digital target locator with 4x zoom helps place the beam more precisely

What’s in the Box

• (1) Laser Distance Measurer
• (1) Belt Pouch
• (1) Wrist Strap
• (1) USB-C to USB-A Charging Cable

Key Specifications

Voltage (V)	3.7 V
Accuracy	± 1 mm (± 3/64 in.)
Measuring Range	0.16 ft to 660 ft
Laser Class	Class 2
Laser Output	< 1 mW
Inclination Sensor	± 180°
Protection Rating	IP54
Weight (lbs)	0.41 lbs

Compatibility

Wireless Data Transfer

Bluetooth 5.0 supports sending measurements to smartphones, tablets, computers, apps, and Excel files.

App Integration

Works with the STABILA Measures II app, including SMART SKETCH for digital measurement documentation.

Tripod Mount

Uses a standard 1/4 inch tripod connection for more stable long-distance measuring.

Built For

Construction General Contracting Remodeling Concrete Layout Interior Buildout Estimating Digital As-Builts Indoor / Outdoor Measuring

Pro Tip

When you are shooting long distances, set the LD 530 BT on a tripod and use gesture control instead of pressing the button by hand. That small change helps keep the aiming point steady and gives you more repeatable readings.

Warranty & Support

2-year warranty.

Tool Nut’s Take

Tool Nut’s Take

Stabila LD 530 BT 3.7V Battery Laser Distance Measurer with Bluetooth for crews that measure for a living

This is the kind of laser distance measurer you buy when missed measurements cost more than the tool.

• Who it’s for: Contractors, estimators, and layout users who need long-range indoor or outdoor measuring plus clean digital documentation.
• Why it stands out: The camera-based target locator, 4x zoom, gesture control, and Bluetooth workflow make it far more capable than a basic point-and-shoot distance meter.
• Worth knowing: The Stabila LD 530 BT 3.7V Battery Laser Distance Measurer with Bluetooth is built for serious measurement work, so it makes the most sense if you will actually use the range, app connectivity, and documentation features.

Common Questions

• What is the maximum measuring range? The maximum range is 660 ft (200 m).
• Can it transfer measurements to a phone or computer? Yes. Bluetooth 5.0 supports direct transfer of measured values to apps, tablets, smartphones, computers, and Excel files.
• Is it suitable for outdoor use? Yes. It is specified for indoor and outdoor measuring, and the camera with digital target locator helps with aiming over longer distances and in bright conditions.
• Does it support tripod mounting? Yes. It has a standard 1/4 inch tripod connection.
