Description

Key Features

Faster Clamping

Two points of clamping contact work from one screw, so you can lock down narrow stock quickly without fussing with multiple hold-downs.

Better End-Grain Control

This Woodpeckers coping sled upgrade gives the workpiece more support during tricky end-of-board cuts, helping keep the cut straight and repeatable.

Made for Router Tables

Built for the Woodpeckers Coping Sled and designed to work with router table fences, this upgrade targets cope cuts, tenons, bridle joints, half-laps, and similar joinery work.

Overview

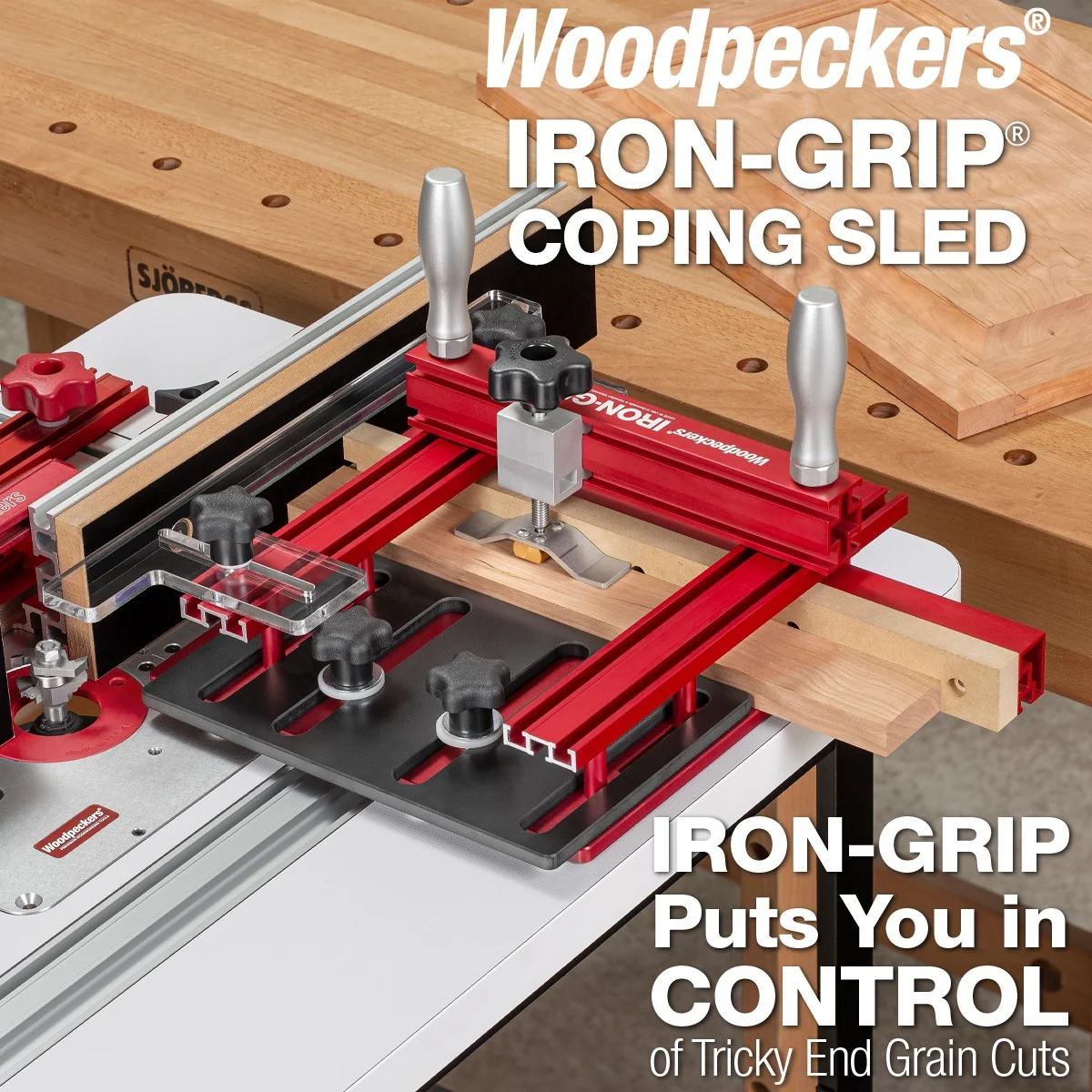

The Woodpeckers Iron-Grip Clamp Upgrade for the Woodpeckers Coping Sled, model IGCS-UG, is a router table accessory upgrade for the existing Woodpeckers Coping Sled (COPESLED1). This is a coping sled clamp upgrade designed for safer, more controlled end-grain routing and joinery cuts. If you already use a coping sled for cope and stick door frames, tenons, bridle joints, or half-laps, this upgrade is aimed at giving you a more secure hold on the work with less setup time.

The main problem with narrow end-of-board routing is simple: the stock can lose support before the cut is finished, and that is where things get sketchy. The Iron-Grip setup addresses that by adding two points of clamping contact operated by one screw. In practical terms, that means you can secure the piece quickly and keep it planted while it passes the bit, instead of fighting a weak grip or relying on the bit bearing to do work it was never meant to do by itself.

Woodpeckers built this upgrade around the kind of work that actually pushes a coping sled hard. Cope cuts for cabinet doors, end-grain joinery, and small parts all benefit from better clamping pressure and more predictable tracking across the fence. When you are making repeated parts, that matters. A secure clamp is not just about safety. It is also about getting parts that match from one piece to the next without creep during the cut.

One of the more useful design details here is the fence guide. The guide is 3/8 inch thick and 15-1/2 inches long, and it is specified to work with all router table fences. That broad fence compatibility makes this a practical upgrade for woodworkers who already have their router table dialed in and do not want to rebuild their setup around one accessory.

For cleaner results, the system also works with a sacrificial backer board to help prevent backside tear-out in expensive hardwoods. That is a real-world detail that matters when you are cutting figured stock, pre-milled door parts, or anything you do not want to remake. On end-grain cuts, a backer board is the difference between a clean shoulder and a chipped exit edge, and this setup is built to support that approach.

Who should buy this? Woodworkers and cabinetmakers who already own the Woodpeckers Coping Sled and want a better clamping solution for router table joinery. If you are making cope and stick doors, small frame parts, tenons, bridle joints, or half-laps on the router table, this upgrade makes sense. If you do not already have the Coping Sled, this is not the starting point. It is an add-on for users who want more control out of the sled they already run.

More Control on Narrow Stock

End-grain routing gets a lot easier when the work stays supported from start to finish. This upgrade is built to keep narrow parts under control as they move through cope cuts and similar router table operations.

• Designed for tricky end-of-board cuts on a router table
• Helps maintain straighter, more repeatable passes across the bit

Secure Workholding Without Slowing You Down

The clamping system uses two contact points driven by one screw, which is a smart way to speed up setup while keeping the part locked down. That pays off when you are batching door parts or making repeat joinery cuts.

• Two clamping contact points with one screw
• Fast, secure hold for repeated router table work

Works with Your Router Table Fence Setup

This upgrade is not useful if it only works in one narrow setup. The fence guide is sized to ride against router table fences, so it fits into real shop workflows without forcing a dedicated table or odd workaround.

• Fence guide measures 3/8 inch thick
• Fence guide length is 15-1/2 inches and is specified to work with all router table fences

Cleaner Cuts in Better Material

When you are cutting expensive hardwoods, backside tear-out is where money gets wasted. This setup supports the use of a sacrificial backer board so the fibers at the exit side stay cleaner.

• Supports cleaner exit edges on end-grain cuts
• Especially useful for hardwood door parts and finished joinery stock

Key Specifications

Model Number	IGCS-UG
Product Type	Coping sled clamp upgrade for router table use
Fence Guide Thickness	3/8 in.
Fence Guide Length	15-1/2 in.
Primary Use	End-of-board cuts and end-grain routing
Joinery Applications	Cope and stick door frames, bridle joints, tenons, half-laps
Fence Compatibility	Works with all router table fences
Brand	Woodpeckers

Compatibility

Base Sled

Designed as an upgrade for the Woodpeckers Coping Sled (COPESLED1).

Router Table Fences

The 3/8 in. thick, 15-1/2 in. long fence guide is specified to work with all router table fences.

Built For

Woodworking Cabinet Door Making Router Table Joinery Cope and Stick Work Tenons Bridle Joints Half-Laps End-Grain Cutting

Pro Tip

Keep a sacrificial backer board behind the workpiece when you are coping hardwood door parts or figured stock. It supports the fibers at the exit side of the cut and can save you from remaking expensive pieces.

Tool Nut’s Take

Tool Nut’s Take

Woodpeckers Iron-Grip Clamp Upgrade for the Woodpeckers Coping Sled is the kind of add-on that fixes the part of the job nobody enjoys

If you already own the sled, this upgrade is a smart move because better clamping makes small end-grain work feel a lot less sketchy.

• Who it’s for: Woodworkers and cabinetmakers running the Woodpeckers Coping Sled for cope cuts, tenons, bridle joints, and similar router table joinery.
• Why it stands out: The one-screw, two-point clamping approach is practical, fast, and built around real control instead of just adding more hardware.
• Worth knowing: This is an upgrade for the existing Coping Sled, not a complete standalone sled package.

Common Questions

• Is this a complete coping sled? No. It is an Iron-Grip clamp upgrade for the Woodpeckers Coping Sled (COPESLED1).
• What is this accessory used for? It is intended for end-of-board and end-grain router table cuts such as cope and stick door frames, bridle joints, tenons, and half-laps.
• Will it work with my router table fence? The fence guide is specified to work with all router table fences.
• How does it improve workholding? It uses two points of clamping contact with one screw for faster, more secure clamping.
