Description

Key Features

Fast Lift, Fine Control

The patented QuickLift system gets the collet above the table fast for bit changes, then the crank handle lets you dial height back in with controlled micro-adjustment. That means less fiddling and more time actually cutting.

Built for 4.2 Inch Motors

This Woodpeckers router lift uses a 9.25 inch x 11.75 inch plate and is sized for 4.2 inch diameter router motors. It is a direct fit solution for common heavy-duty router table setups built around that motor size.

Aluminum Plate Advantage

The aluminum plate keeps weight down while still giving you a stable platform for router table work. If you move components between setups, the lighter plate is easier to handle than a steel version.

Overview

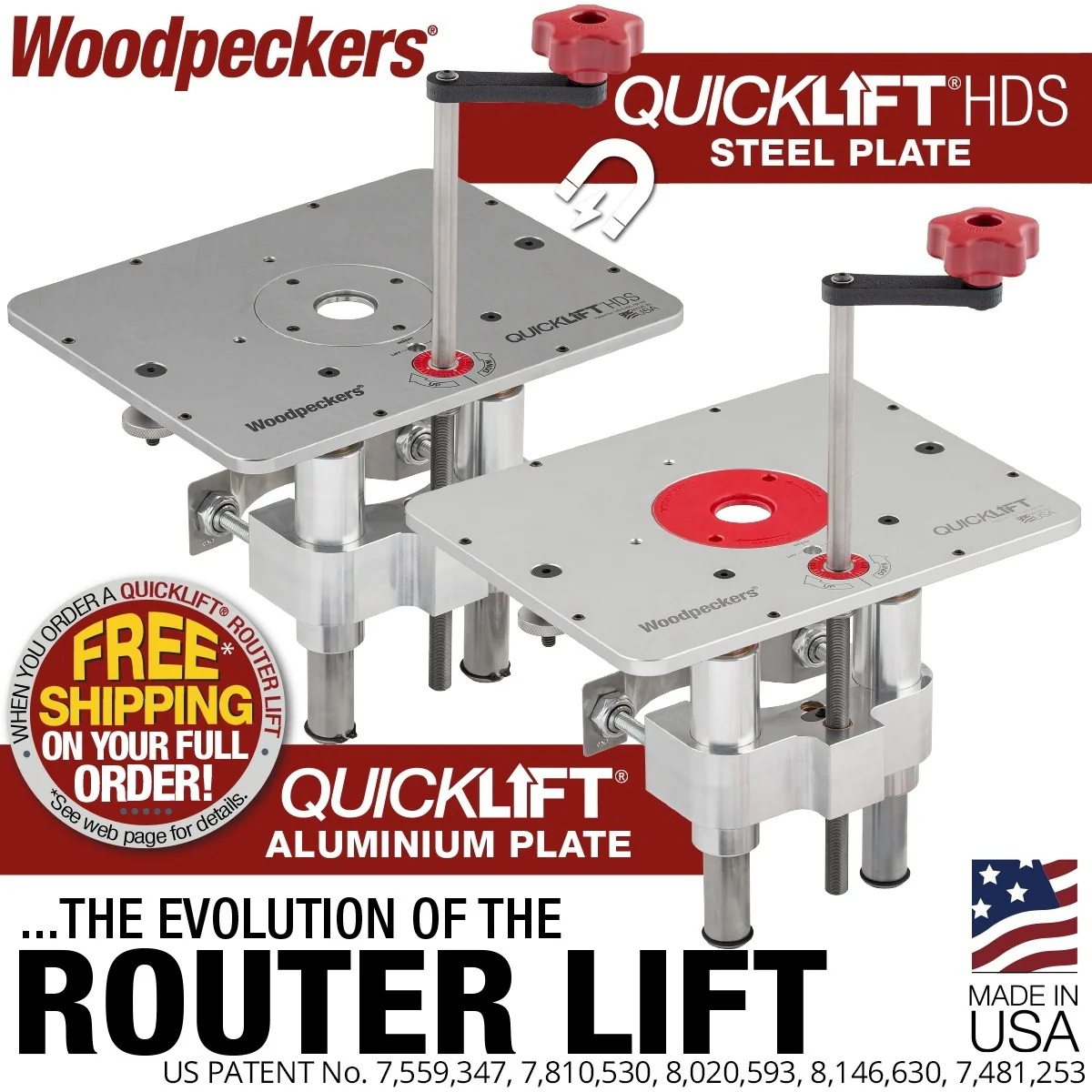

Woodpeckers Quicklift Router Lifts, Aluminum Plate, Fits 4.2 Inch Router Motors, Patented Quick-Lift Feature and Crank Style Micro Adjustments is a router lift built for router table setups that need quick bit changes and repeatable height control. This is a router lift designed for router table height adjustment and above-table bit changes. Model Number QL420-A-23, this version uses an aluminum plate and is sized for 4.2 inch diameter router motors.

The big draw here is the combination of Woodpeckers’ patented QuickLift action and a crank-style micro-adjustment system. In practical terms, you can pop the collet above the table quickly for a bit swap, drop the cutter back to rough height just as fast, and then fine tune the final position with the crank. The rotary scale moves at 1/32 inch per revolution, which makes small changes easier to track when you are sneaking up on a profile, dialing in joinery, or matching a previous setup.

This QuickLift 420 uses a 9.25 inch by 11.75 inch plate and fits 4.2 inch router motors. Woodpeckers specifically lists compatibility with the Porter Cable 7518 and the SpinRite 3.25 HP Soft Start Router Motor. For woodworkers running a large motor in a dedicated table, that fit matters because a good router lift is only as useful as its motor compatibility and how solidly it holds the motor under load.

On the design side, the QuickLift uses a two-thumbwheel clamping system to secure the lift in the router table, along with eight set screws for leveling. That is the kind of detail that matters once the lift is actually installed. A router table only feels precise when the plate sits flat, stays put, and does not shift during use. The leveling screws help you get the plate flush with the table surface, and the clamping arrangement is there to keep things stable once you have it dialed in.

The aluminum plate version is the right call for users who want the full QuickLift feature set in a lighter package. Woodpeckers also makes a steel HDS version, but the core adjustment system is the same. What changes here is the plate material. Aluminum keeps weight down and makes the lift easier to handle when installing, removing, or moving it between setups. For a lot of small shops and serious home woodworkers, that is a real advantage.

Woodpeckers includes the hardware and accessories that support the lift system, including three molded twist lock rings, the QuickLift wrench, a crank handle, a steel starting pin, and a spanner wrench. Those are not throwaway add-ons. Twist lock rings help you size the table opening to the cutter being used, the wrench supports the quick-lift action, and the starting pin is useful for controlled freehand edge work on the router table when appropriate.

Compatibility is another strong point. Beyond the listed 4.2 inch motors, Woodpeckers also shows that a 350 adapter can be used to fit 3.5 inch motors into the QuickLift Model 420. That gives the platform some flexibility for shops that may change router motors over time or want to reuse an existing motor rather than buy around the lift.

If you do cabinet work, trim, edge profiling, pattern routing, joinery, or general router table work, this is the kind of upgrade you notice every time you use the table. The value is not hype. It is speed when changing bits, accuracy when setting height, and less frustration when going from a rough setting to a final cut. For woodworkers building out a serious router table, this Woodpeckers router lift is aimed squarely at that user.

More Flexibility in Your Router Table Setup

The QuickLift 420 is built around 4.2 inch router motors, but Woodpeckers also shows adapter support for fitting 3.5 inch motors into the same platform. That matters if you are building a router table now and want room to change motors later.

• Designed for 4.2 inch diameter router motors
• Adapter option shown for using 3.5 inch motors with the Model 420 platform

What’s in the Box

• (1) Woodpeckers QuickLift 420 router lift with aluminum plate
• (3) Molded twist lock rings
• (1) QuickLift wrench
• (1) Crank handle
• (1) Steel starting pin
• (1) Spanner wrench

Router motor sold separately.

Key Specifications

Plate Size	9.25 in x 11.75 in
Router Motor Capacity	Fits 4.2 in diameter router motors
Plate Material	Aluminum
Adjustment Scale	1/32 in per revolution
Base Type	Fixed
Twist Lock Rings	3 molded rings
Compatible Router Models	Porter Cable 7518; SpinRite 3.25 HP Soft Start Router Motor
Made In	USA

Compatibility

Router Motor Fit

Designed for 4.2 inch diameter router motors.

Listed Router Models

Compatible with Porter Cable 7518 and SpinRite 3.25 HP Soft Start Router Motor.

Adapter Option

Woodpeckers shows a 350 adapter for fitting 3.5 inch motors into the QuickLift Model 420 platform.

Built For

Woodworking Router Table Setup Cabinetry Edge Profiling Pattern Routing Joinery Trim Work Serious DIY / Hobbyist

Pro Tip

Use the QuickLift wrench to get the bit height close first, then finish with the crank handle. That two-step process is where this lift saves time, especially when you are swapping between cutters and only need a fine bump to hit your final profile.

Tool Nut’s Take

Tool Nut’s Take

Woodpeckers Quicklift Router Lifts, Aluminum Plate, Fits 4.2 Inch Router Motors is a smart upgrade for a serious router table

If you want faster bit changes and cleaner height adjustments without giving up stability, this lift makes a lot of sense.

• Who it’s for: Woodworkers building or upgrading a router table around a 4.2 inch motor, especially for cabinetry, trim, and repeat setup work.
• Why it stands out: The quick-lift action and crank micro-adjustment combo is the whole story here. Fast coarse movement plus controlled fine tuning is exactly what a good router lift should deliver.
• Worth knowing: This is the aluminum plate version, so it is the lighter option. Also, it is a lift system, not a complete router package, so make sure your motor matches the 4.2 inch fit or plan around the adapter route.

Common Questions

• What type of product is this? This is a router lift designed for router table use, giving you above-table bit access and controlled height adjustment.
• What router motor size does it fit? This model is designed for 4.2 inch diameter router motors.
• Which router motors are specifically listed as compatible? Woodpeckers lists the Porter Cable 7518 and the SpinRite 3.25 HP Soft Start Router Motor.
• How fine is the height adjustment? The rotary scale is marked at 1/32 inch per revolution for controlled micro-adjustment.
